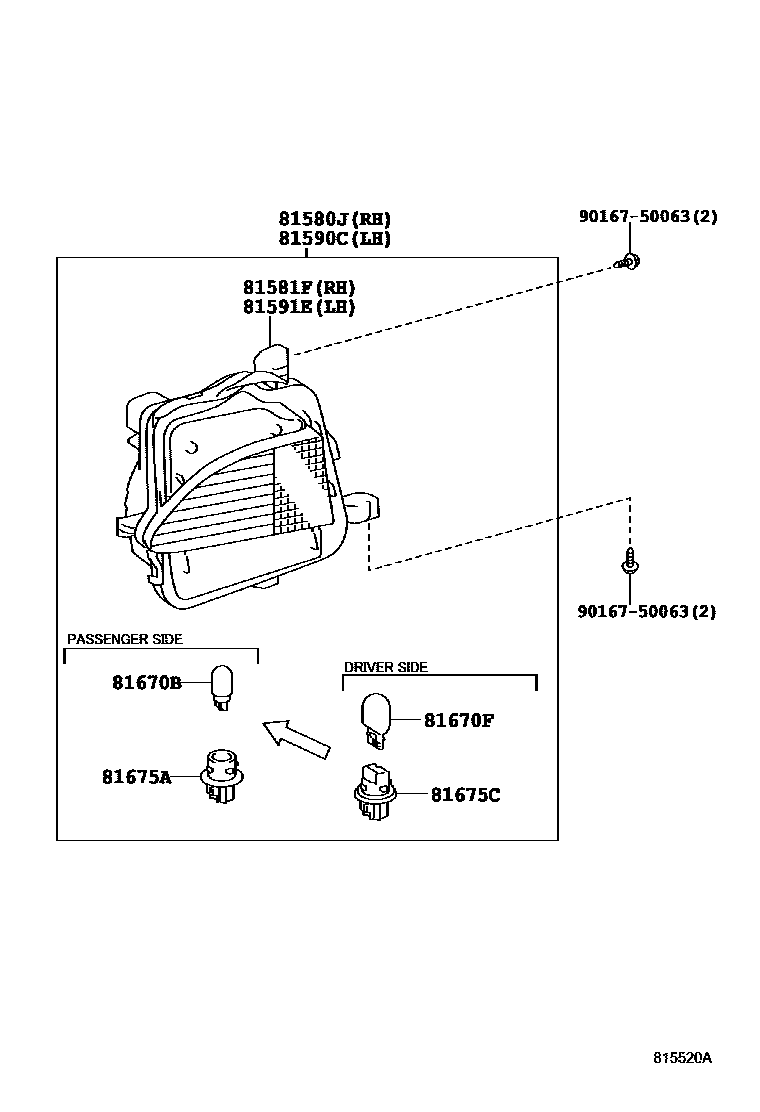

BACK UP LAMP

81580JLAMP ASSY, REAR, RH

main81580-52240iNSP120..RHD201011-201405

main81580-52250iNLP121,NSP120..LHD201011-201405

81581FLENS & BODY, REAR LAMP, RH

main81581-52240iNSP120..RHD201405-201504

main81581-52250iNLP121,NSP120..LHD201011-201405

81590CLAMP ASSY, REAR, LH

main81590-52130iNLP121,NSP120..LHD201011-201405

main81590-52140iNSP120..RHD201011-201405

81591ELENS & BODY, REAR LAMP, LH

main81591-52130iNLP121,NSP120..LHD201011-201405

main81591-52140iNSP120..RHD201405-201504

81670BBULB(FOR BACK-UP LAMP)

main90981-11059iNLP121,NSP120201011-201405

12V 16W

81670FBULB(FOR REAR FOG LAMP)

main90981-13043iNLP121,NSP120201405-201504

12V 21W

81675APLUG, SOCKET(FOR BACK-UP LAMP)

main90075-99109iNLP121,NSP120201011-201405

81675CPLUG, SOCKET(FOR REAR FOG LAMP)

main90075-99080iNLP121,NSP120201011-201405

9016750063

main90167-50063

9 parts on this diagram · 1 diagram in section
