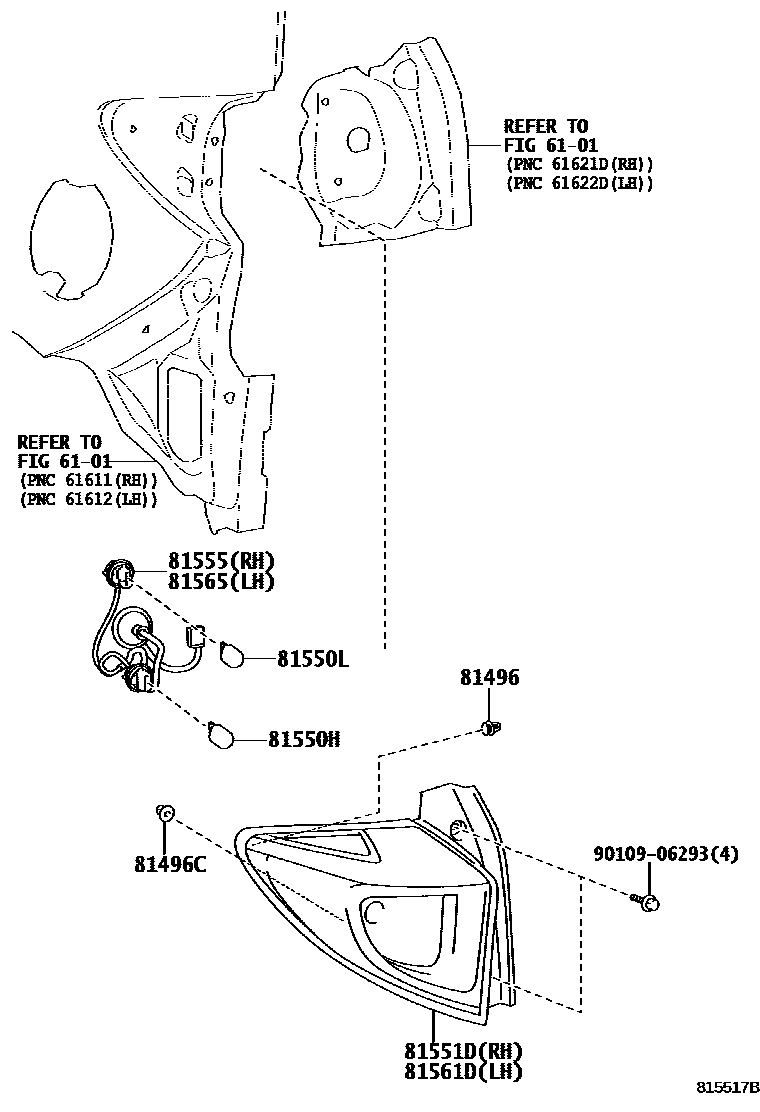

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iNLP121,NSP120201011-201504

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iNLP121,NSP120201011-201504

81550HBULB, TAIL & STOP LAMP

main90981-13044iNLP121,NSP120201011-201405

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iNLP121,NSP120201011-201405

main90981-15021iNLP121,NSP120201405-201504

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52660iNLP121,NSP120201011-201405

main81551-52C70iNLP121,NSP120201405-201504

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52660iNLP121,NSP120201011-201405

main81555-52C70iNLP121,NSP120201405-201504

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52730iNLP121,NSP120201011-201405

main81561-52C70iNLP121,NSP120201405-201504

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52660iNLP121,NSP120201011-201405

main81555-52C70iNLP121,NSP120201405-201504

9010906293

main90109-06293

10 parts on this diagram · 2 diagrams in section
