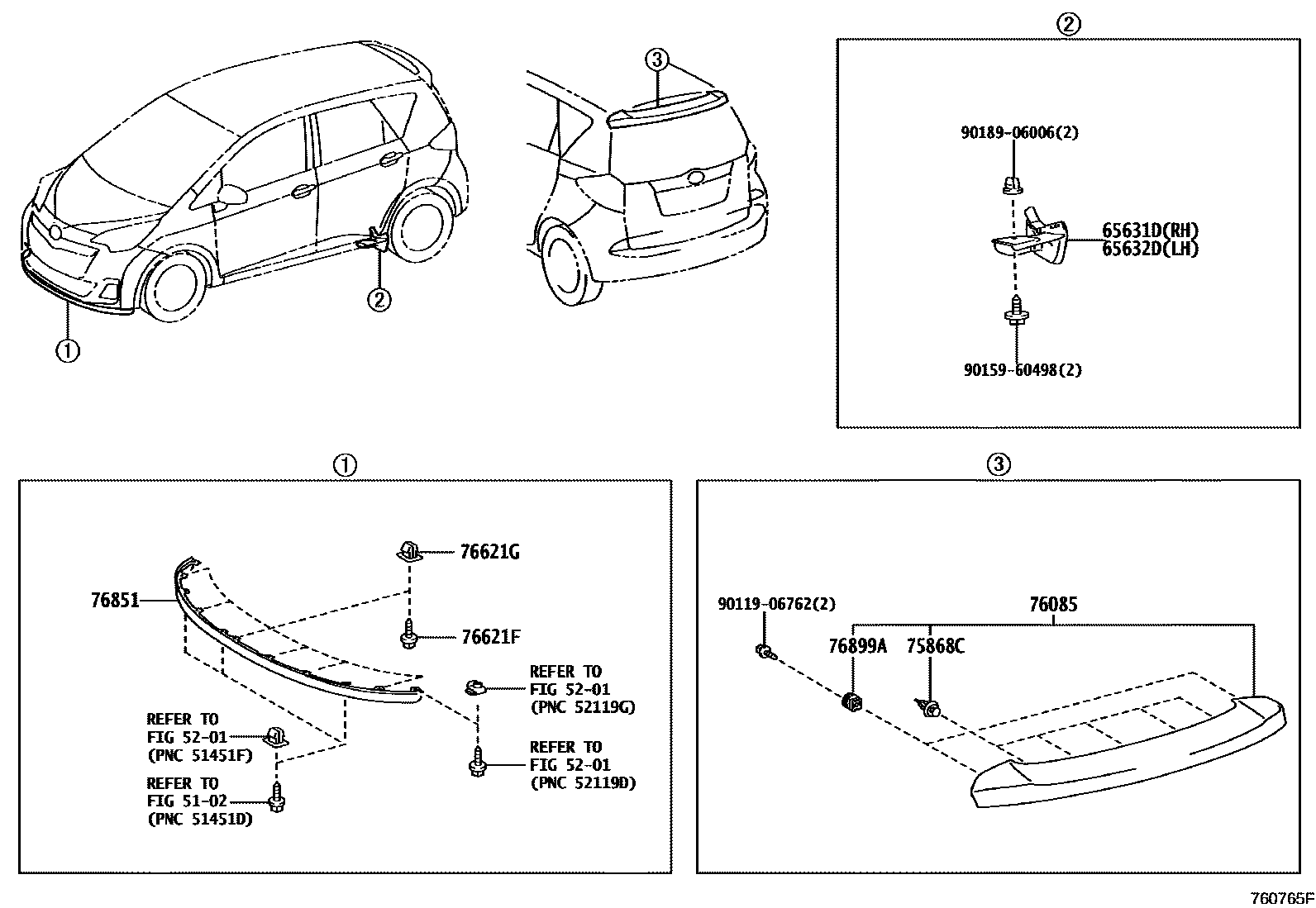

MUDGUARD & SPOILER

0001 1 0002 1

5102

5201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52060iNLP121,NSP120¥3,000201011-201504

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52070iNLP121,NSP120¥3,000201011-201504

75868CCLIP, REAR SPOILER, NO.2

main75868-60020iNLP121,NSP120¥210201011-201504

main90467-09239iNLP121,NSP120¥90201107-201208

76085SPOILER SUB-ASSY, REAR

main76085-52170-A0iNLP121,NSP120201011-201106

SUPER WHITE 2,040

sub76085-52171¥27,400

main76085-52170-A1iNLP121,NSP120201011-201106

WHITE PEARL CS.,070

sub76085-52171¥27,400

main76085-52170-B0iNLP121,NSP120201011-201106

SILVER ME.,1F7

sub76085-52171¥27,400

main76085-52170-B1iNLP121,NSP120201011-201106

GRAY ME.,1G3

sub76085-52171¥27,400

main76085-52170-C0iNLP121,NSP120201011-201106

BLACK MC.,209

sub76085-52171¥27,400

main76085-52170-D0iNLP121,NSP120201011-201106

SUPER RED 5,3P0

sub76085-52171¥27,400

main76085-52170-J0iNLP121,NSP120201011-201106

LT.BLUE M.M.,8S7

sub76085-52171¥27,400

main76085-52170-J1iNLP121,NSP120201011-201106

SATIN BLUE M.M.,8V9

sub76085-52171¥27,400

main76085-52170-K0iNLP121,NSP120201011-201106

DEEP AMETHYST M.M.,9AH

sub76085-52171¥27,400

main76085-52171-A0iNLP121,NSP120201107-201208

SUPER WHITE 2,040

sub76085-52922¥12,500

main76085-52171-A1iNLP121,NSP120201107-201208

WHITE PEARL CS.,070

sub76085-52922¥12,500

main76085-52171-B0iNLP121,NSP120201107-201208

SILVER ME.,1F7

sub76085-52922¥12,500

main76085-52171-B1iNLP121,NSP120201107-201208

GRAY ME.,1G3

sub76085-52922¥12,500

main76085-52171-C0iNLP121,NSP120201107-201208

BLACK MC.,209

sub76085-52922¥12,500

main76085-52171-D0iNLP121,NSP120201107-201208

SUPER RED 5,3P0

sub76085-52922¥12,500

main76085-52171-J0iNLP121,NSP120201107-201208

LT.BLUE M.M.,8S7

sub76085-52922¥12,500

main76085-52171-J1iNLP121,NSP120201107-201208

SATIN BLUE M.M.,8V9

sub76085-52922¥12,500

main76085-52171-K0iNLP121,NSP120201107-201208

DEEP AMETHYST M.M.,9AH

sub76085-52922¥12,500

main76085-52172-A0iNLP121,NSP120201208-201504

SUPER WHITE 2,040

sub76085-52925¥13,800

main76085-52172-A1iNLP121,NSP120201208-201504

WHITE PEARL CS.,070

sub76085-52925¥13,800

main76085-52172-B0iNLP121,NSP120201208-201504

SILVER ME.,1F7

sub76085-52925¥13,800

main76085-52172-B1iNLP121,NSP120201208-201504

GRAY ME.,1G3

sub76085-52925¥13,800

main76085-52172-C0iNLP121,NSP120201208-201504

BLACK MC.,209

sub76085-52925¥13,800

main76085-52172-D0iNLP121,NSP120201208-201504

SUPER RED 5,3P0

sub76085-52925¥13,800

main76085-52172-E1iNLP121,NSP120201405-201504

BRONZE M.M.,4T3

sub76085-52925¥13,800

main76085-52172-J0iNLP121,NSP120201208-201405

LT.BLUE M.M.,8S7

sub76085-52925¥13,800

main76085-52172-J1iNLP121,NSP120201208-201504

SATIN BLUE M.M.,8V9

sub76085-52925¥13,800

main76085-52172-J2iNLP121,NSP120201212-201405

GRAYISH BLUE ME.,8R3

sub76085-52925¥13,800

main76085-52172-K0iNLP121,NSP120201208-201504

DEEP AMETHYST M.M.,9AH

sub76085-52925¥13,800

76621FSCREW, NO.1

main90159-60431iNLP121,NSP120¥70201011-201405

RUSSIA SPEC

main90159-60431iNLP121,NSP120¥70201405-201504

76621GGROMMET, NO.1

main90189-06193iNLP121,NSP120¥80201011-201108

RUSSIA SPEC

main90189-06237iNLP121,NSP120¥100201109-201405

RUSSIA SPEC

main90189-06237iNLP121,NSP120¥100201405-201504

76851COVER, FRONT SPOILER

main76851-52190iNLP121,NSP120¥12,100201011-201405

RUSSIA SPEC

main76851-52190iNLP121,NSP120¥12,100201405-201504

76899ANUT, REAR SPOILER

main76899-60010iNLP121,NSP120¥820201011-201504

9011906762

main90119-06762¥70

9015960498

main90159-60498¥70

9018906006

main90189-06006¥100

13 parts on this diagram · 2 diagrams in section
