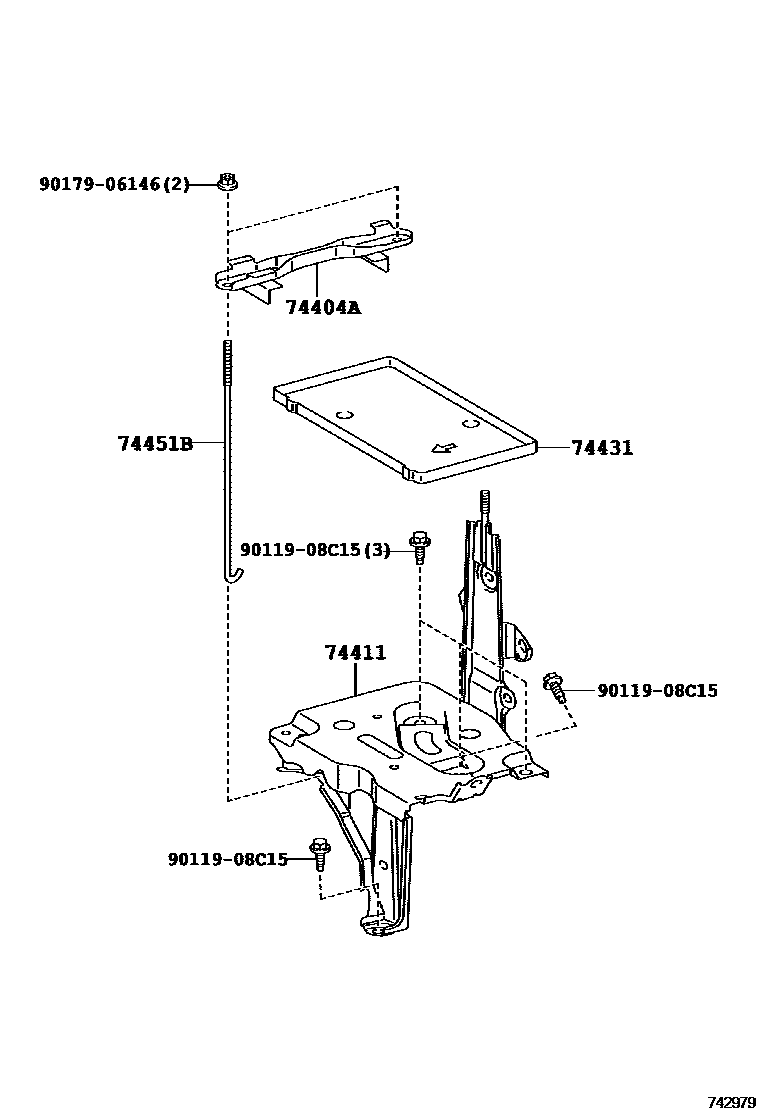

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-52110iNSP120201011-201504

main74404-52130iNLP121201011-201405

GERMANY SPEC&WITH(STOP & START SYSTEM)

main74404-52130iNLP121201405-201504

GERMANY SPEC

74411CARRIER, BATTERY

main74410-52050iNSP120..RHD201011-201107

sub74410-52051

main74410-52051iNSP120..RHD201108-201504

main74410-52060iNSP120..LHD201011-201504

main74410-52070iNLP121201011-201504

74431TRAY, BATTERY

main74431-52101iNSP120201011-201504

main74431-52121iNLP121201405-201504

GERMANY SPEC&WITH(STOP & START SYSTEM)

74451BBOLT, BATTERY CLAMP

main74451-52070iNLP121,NSP120201011-201204

sub74451-52071

main74451-52071iNLP121,NSP120201205-201504

9011908C15

main90119-08C15

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
