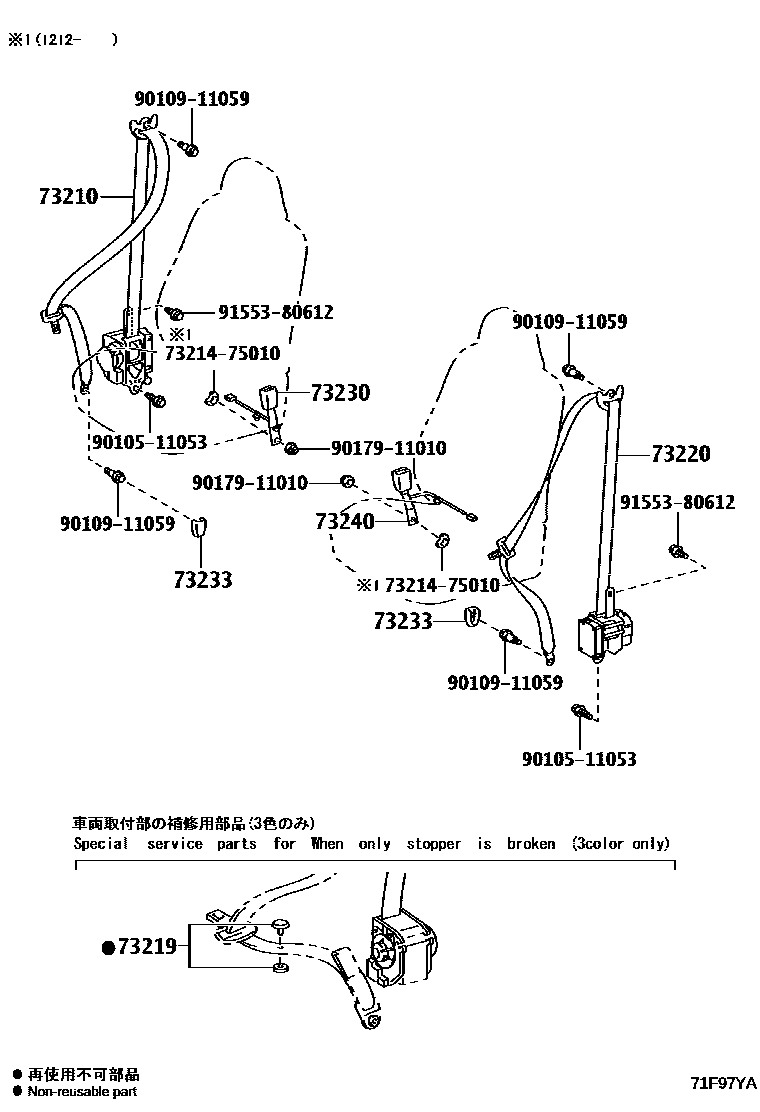

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52830-C0iNLP121,NSP120..LUNA201011-201302

BLACK,TRIM1#,2#,4#

sub73210-52831

main73210-52830-C0iNLP121,NSP120..LUNA201011-201302

BLACK,TRIM2#

sub73210-52831

main73210-52831-C0iNLP121,NSP120..LUNA201303-201405

BLACK,TRIM1#,2#,4#

main73210-52831-C0iNLP121,NSP120..LUNA201303-201504

BLACK,TRIM2#

main73210-52831-C0iNLP121,NSP120..TERRA201405-201504

BLACK,TRIM2#,4#

73219STOPPER, TONGUE PLATE

main73219-33030iNLP121,NSP120201011-201504

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52820-C0iNLP121,NSP120..LUNA201011-201302

BLACK,TRIM1#,2#,4#

sub73220-52821

main73220-52820-C0iNLP121,NSP120..LUNA201011-201302

BLACK,TRIM2#

sub73220-52821

main73220-52821-C0iNLP121,NSP120..TERRA201405-201504

BLACK,TRIM2#,4#

main73220-52821-C0iNLP121,NSP120..LUNA201303-201405

BLACK,TRIM1#,2#,4#

main73220-52821-C0iNLP121,NSP120..LUNA201303-201504

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52550-C0iNSP120..RHD..LUNA201011-201504

BLACK,TRIM2#

main73230-52550-C0iNSP120..RHD..TERRA201011-201405

BLACK,TRIM1#,2#,4#

main73230-52550-C0iNSP120..RHD..LUNA201405-201504

BLACK,TRIM2#,4#

main73230-52680-C0iNLP121,NSP120..LHD..LUNA201405-201504

BLACK,TRIM2#,4#

main73230-52680-C0iNLP121,NSP120..LHD..LUNA201011-201504

BLACK,TRIM2#

main73230-52680-C0iNLP121,NSP120..LHD..LUNA201011-201405

BLACK,TRIM1#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-C0iNLP121,NSP120..TERRA201405-201502

BLACK,TRIM2#,4#

sub73233-60020

sub73233-0C010

main73233-52010-C0iNLP121,NSP120..LUNA201011-201405

BLACK,TRIM1#,2#,4#

sub73233-60020

sub73233-0C010

main73233-52010-C0iNLP121,NSP120..LUNA201011-201502

BLACK,TRIM2#

sub73233-60020

sub73233-0C010

main73233-60020-C0iNLP121,NSP120..TERRA201503-201504

BLACK,TRIM2#

sub73233-60020

sub73233-35010

main73233-60020-C0iNLP121,NSP120..TERRA201503-201504

BLACK,TRIM2#,4#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52550-C0iNLP121,NSP120..LHD..LUNA201011-201405

BLACK,TRIM1#,2#,4#

main73230-52550-C0iNLP121,NSP120..LHD..LUNA201011-201504

BLACK,TRIM2#

main73230-52550-C0iNLP121,NSP120..LHD..LUNA201405-201504

BLACK,TRIM2#,4#

main73230-52680-C0iNSP120..RHD..LUNA201011-201504

BLACK,TRIM2#

main73230-52680-C0iNSP120..RHD..LUNA201011-201405

BLACK,TRIM1#,2#,4#

main73230-52680-C0iNSP120..RHD..LUNA201405-201504

BLACK,TRIM2#,4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511053

main90105-11053

9010911059

main90109-11059

9017911010

main90179-11010

9155380612

main91553-80612

11 parts on this diagram · 2 diagrams in section
