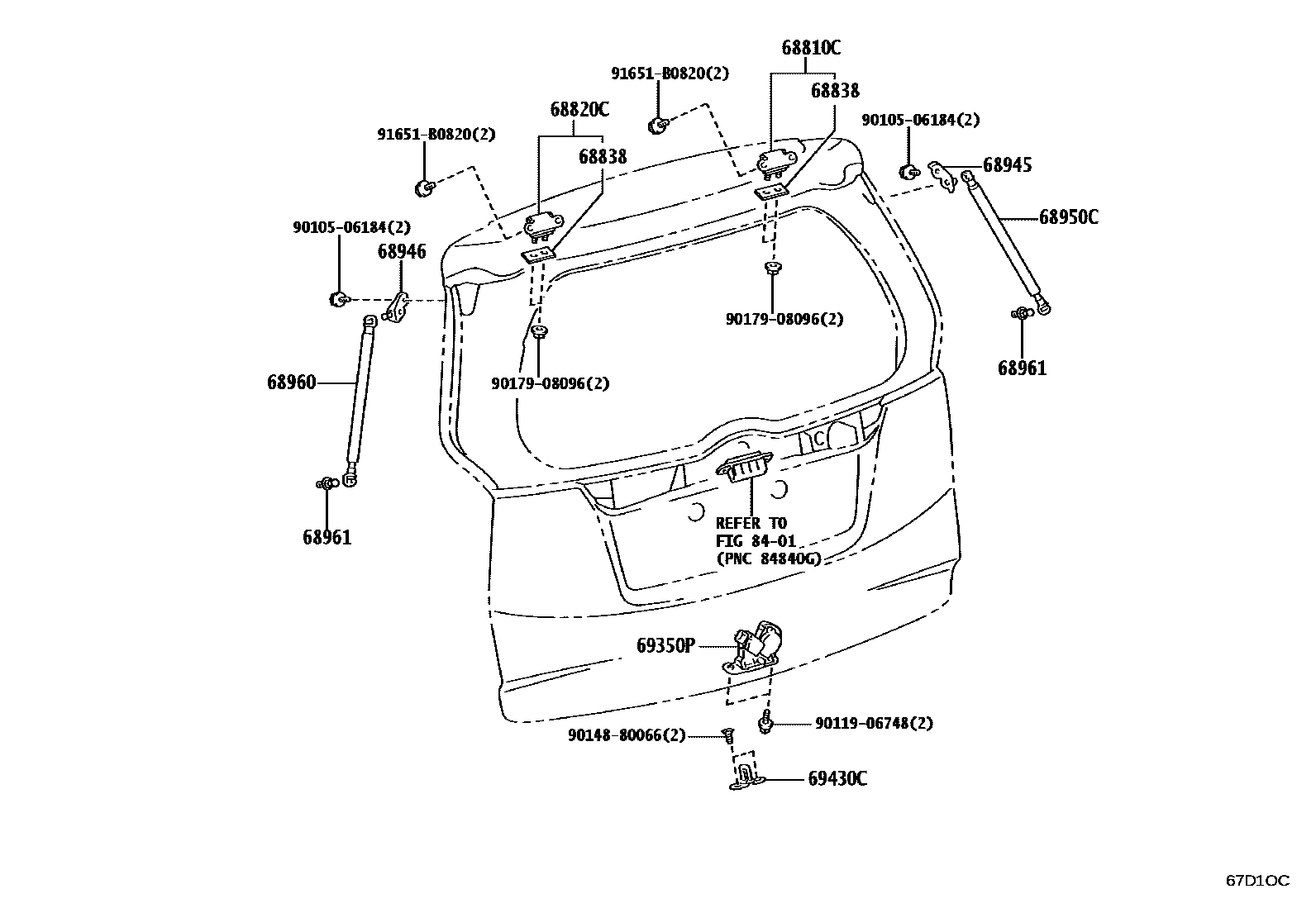

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-52080iNLP121,NSP120201011-201504

68820CHINGE ASSY, BACK DOOR, LH

main68810-52080iNLP121,NSP120201011-201504

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010iNLP121,NSP120201011-201504

T=2.0

main68838-52030iNLP121,NSP120201011-201504

T=1.0

main68838-52060iNLP121,NSP120201011-201504

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52090iNLP121,NSP120201011-201504

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52050iNLP121,NSP120201011-201504

68950CSTAY ASSY, BACK DOOR, RH

main68950-52310iNSP120..CVT201011-201103

sub68950-52311

main68950-52311iNSP120..CVT201104-201504

main68950-52360iNLP121,NSP120..MTM201011-201103

sub68950-52361

main68950-52361iNLP121,NSP120..6F201104-201504

68960STAY ASSY, BACK DOOR, LH

main68960-52280iNSP120..CVT201011-201103

sub68960-52281

main68960-52281iNSP120..CVT201104-201504

main68960-52380iNLP121,NSP120..MTM201011-201103

sub68960-52381

main68960-52381iNLP121,NSP120..MTM201104-201504

68961BOLT, BACK DOOR STAY

main68961-20140iNLP121,NSP120201011-201504

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52350iNLP121,NSP120201011-201504

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52040iNLP121,NSP120201011-201504

8401

9010506184

main90105-06184

9011906748

main90119-06748

9014880066

main90148-80066

9017908096

main90179-08096

91651B0820

main91651-B0820

16 parts on this diagram · 1 diagram in section
