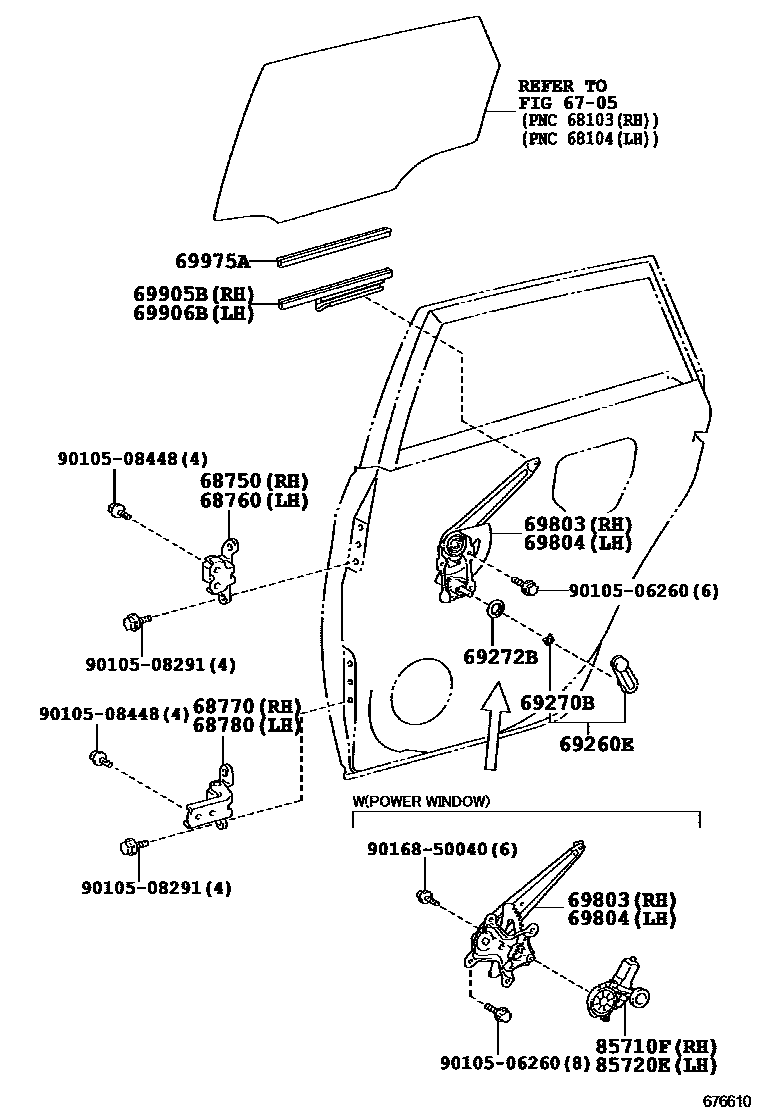

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iNLP121,NSP120201011-201205

main68750-20122iNLP121,NSP120201405-201504

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iNLP121,NSP120201011-201205

main68760-20122iNLP121,NSP120201206-201405

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iNLP121,NSP120201405-201504

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iNLP121,NSP120201011-201405

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14030-C0×2supersedes 69260-14030-C0iNLP121,NSP120..LUNA201011-201405

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),BLACK,TRIM1#,2#,4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iNLP121,NSP120..LUNA201011-201405

HI GRADE (WITHOUT PANORAMA)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-52010×2iNLP121,NSP120..LUNA201011-201405

HI GRADE (WITHOUT PANORAMA)

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-52240iNLP121,NSP120201011-201405

main69803-42040iNLP121,NSP120..LUNA201011-201405

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-52240iNLP121,NSP120201405-201504

main69804-42040iNLP121,NSP120..LUNA201011-201405

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-53010iNLP121,NSP120201405-201504

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-53010iNLP121,NSP120201011-201405

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNLP121,NSP120201011-201405

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52150iNLP121,NSP120..LUNA201011-201405

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52160iNLP121,NSP120..LUNA201011-201405

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

19 parts on this diagram · 1 diagram in section
