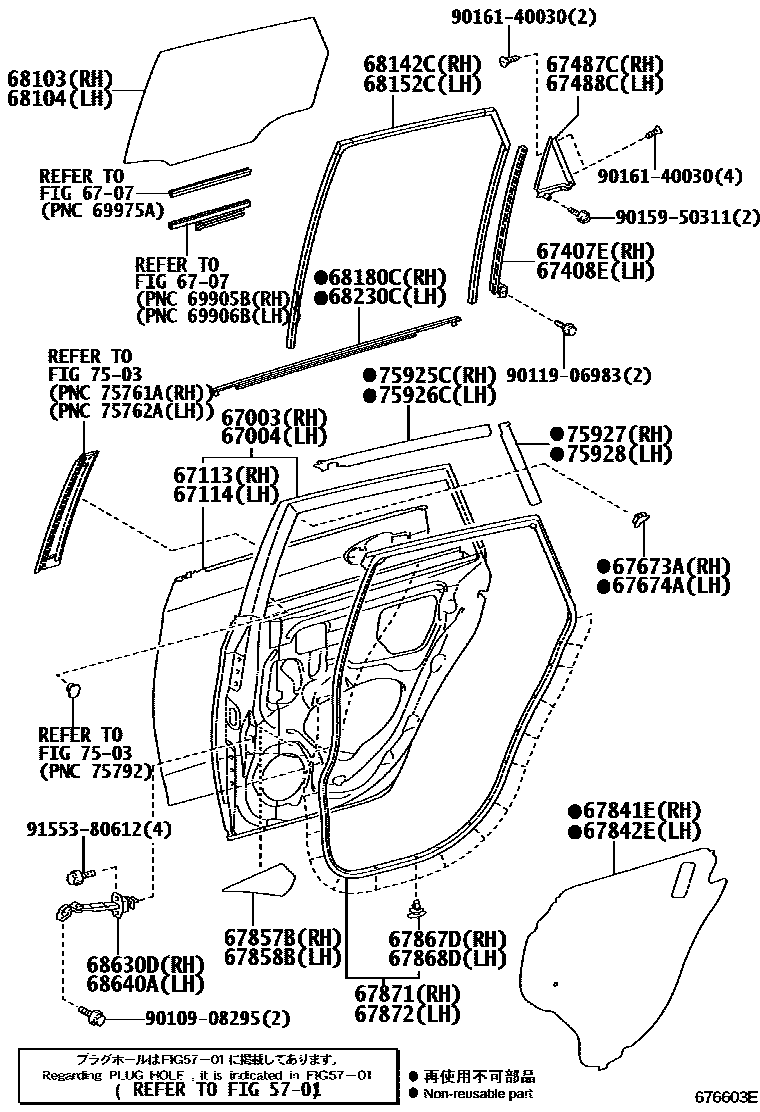

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-52270iNLP121,NSP120¥58,600201011-201504

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-52430iNLP121,NSP120¥58,600201011-201504

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-52110iNLP121,NSP120¥23,600201011-201504

67114PANEL, REAR DOOR, OUTER LH

main67114-52200iNLP121,NSP120¥23,600201011-201504

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-52160iNLP121,NSP120¥2,220201011-201504

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-52160iNLP121,NSP120¥2,220201011-201504

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-52080iNLP121,NSP120¥3,660201011-201504

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-52080iNLP121,NSP120¥3,660201011-201504

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iNLP121,NSP120¥180201011-201504

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48010iNLP121,NSP120¥180201011-201504

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-52290iNLP121,NSP120¥870201011-201204

main67841-52291iNLP121,NSP120¥870201205-201504

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-52120iNLP121,NSP120¥870201011-201204

main67842-52121iNLP121,NSP120¥870201205-201504

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-52110iNLP121,NSP120¥1,390201011-201112

sub67857-52111¥1,380

main67857-52111iNLP121,NSP120¥1,380201201-201504

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-52090iNLP121,NSP120¥1,390201011-201112

sub67858-52091¥1,380

main67858-52091iNLP121,NSP120¥1,380201201-201504

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iNLP121,NSP120¥100201011-201504

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNLP121,NSP120¥100201011-201504

67871WEATHERSTRIP, REAR DOOR, RH

main67871-52170iNLP121,NSP120¥7,400201011-201504

67872WEATHERSTRIP, REAR DOOR, LH

main67872-52190iNLP121,NSP120¥7,400201011-201504

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-52190iNLP121,NSP120¥16,100201011-201504

*UVCT,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-52310iNLP121,NSP120¥16,100201011-201504

*UVCT,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-52140iNLP121,NSP120¥2,970201011-201504

68152CRUN, REAR DOOR GLASS, LH

main68152-52150iNLP121,NSP120¥2,970201011-201504

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52150iNLP121,NSP120¥3,080201011-201108

sub68180-52151¥3,080

main68180-52151iNLP121,NSP120¥3,080201109-201504

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52150iNLP121,NSP120¥3,080201011-201108

sub68230-52151¥3,080

main68230-52151iNLP121,NSP120¥3,080201109-201504

68630DCHECK ASSY, REAR DOOR, RH

main68630-52100iNLP121,NSP120¥3,700201011-201504

68640ACHECK ASSY, REAR DOOR, LH

main68630-52100iNLP121,NSP120¥3,700201011-201504

7503

75925CTAPE, BLACK OUT, NO.3 RH

main75925-52120iNLP121,NSP120¥1,260201011-201504

75926CTAPE, BLACK OUT, NO.3 LH

main75926-52120iNLP121,NSP120¥1,260201011-201504

75927TAPE, BLACK OUT, NO.4 RH

main75927-52020iNLP121,NSP120¥1,070201011-201504

75928TAPE, BLACK OUT, NO.4 LH

main75928-52020iNLP121,NSP120¥1,070201011-201504

9010908295

main90109-08295¥80

9011906983

main90119-06983¥60

9015950311

main90159-50311¥70

9016140030

main90161-40030¥110

9155380612

main91553-80612¥60

38 parts on this diagram · 2 diagrams in section
