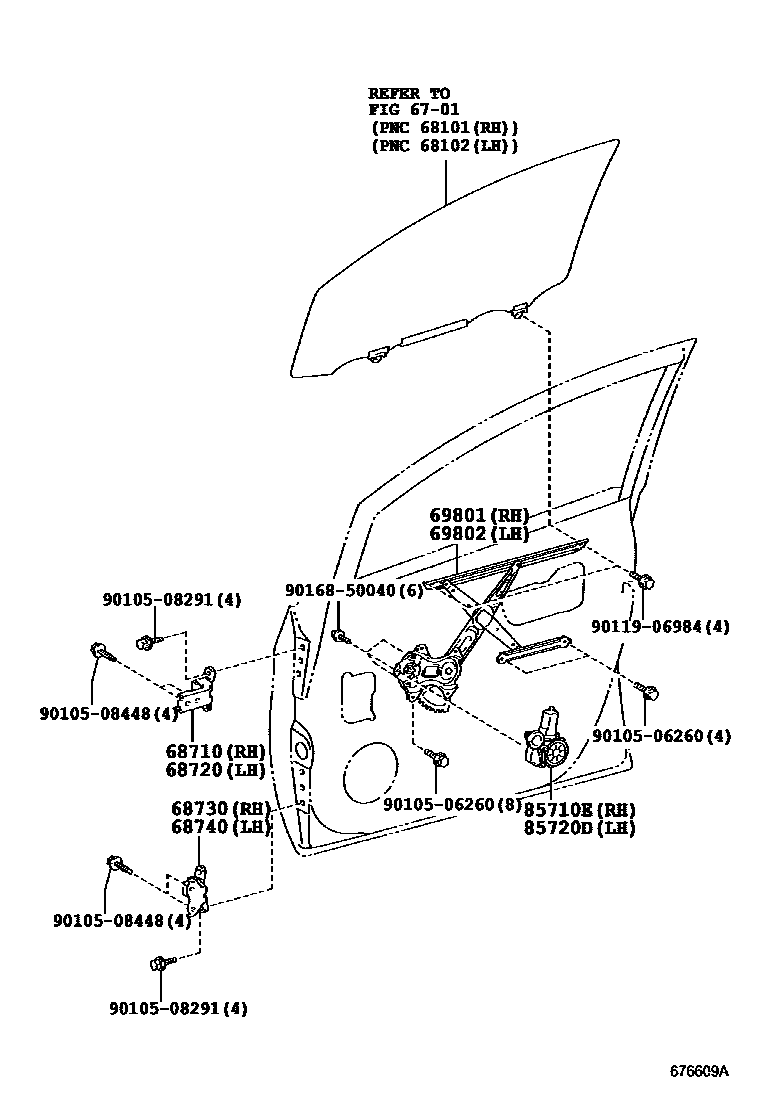

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iNLP121,NSP120201011-201504

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iNLP121,NSP120201011-201504

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iNLP121,NSP120201011-201504

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iNLP121,NSP120201011-201504

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-21020iNLP121,NSP120201011-201504

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-21010iNLP121,NSP120201011-201504

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iNLP121,NSP120..LHD201011-201504

main85710-52170iNSP120..RHD201011-201301

sub85710-52171

main85710-52171iNSP120..RHD201302-201504

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140iNSP120..RHD201011-201504

main85720-52160iNLP121,NSP120..LHD201011-201301

sub85720-52161

main85720-52161iNLP121,NSP120..LHD201302-201504

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
