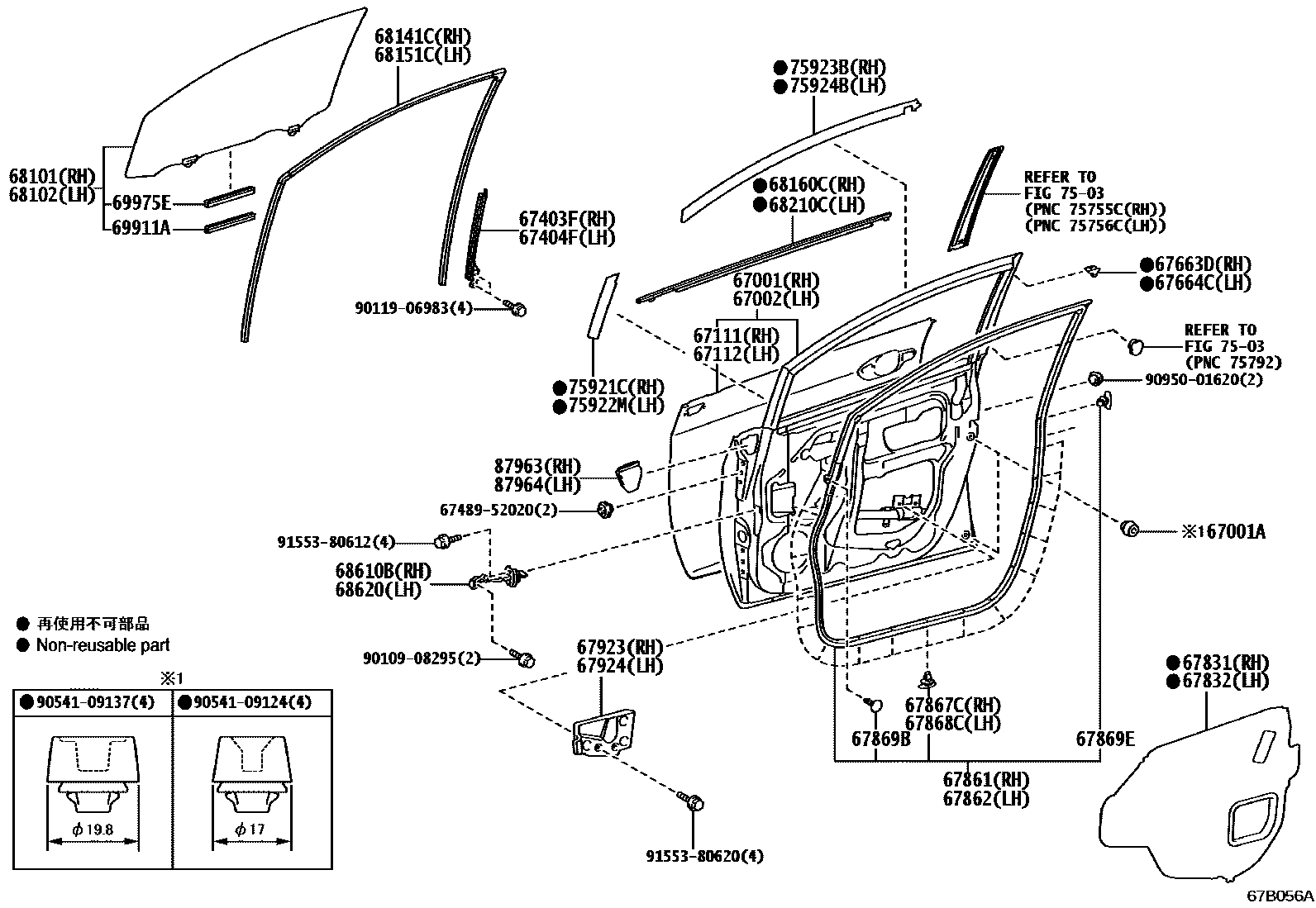

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52490iNLP121,NSP120201011-201405

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iNLP121,NSP120201405-201504

OD=17

main90541-09137×4iNLP121,NSP120201405-201504

OD=19.8

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52470iNLP121,NSP120201011-201405

67111PANEL, FRONT DOOR, OUTER RH

main67111-52200iNLP121,NSP120201405-201504

67112PANEL, FRONT DOOR, OUTER LH

main67112-52190iNLP121,NSP120201011-201405

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52230iNLP121,NSP120201011-201405

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52200iNLP121,NSP120201011-201405

67663DGARNISH, DOOR FRAME, RH

main67663-48010iNLP121,NSP120201011-201405

67664CGARNISH, DOOR FRAME, LH

main67664-48010iNLP121,NSP120201011-201405

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52390iNLP121,NSP120201011-201405

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52250iNLP121,NSP120201011-201405

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52220iNLP121,NSP120201011-201405

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52210iNLP121,NSP120201011-201405

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iNLP121,NSP120201011-201405

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iNLP121,NSP120201405-201504

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×2iNLP121,NSP120201405-201504

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034×2iNLP121,NSP120201011-201405

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52200iNLP121,NSP120201405-201504

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-52200iNLP121,NSP120201405-201504

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52370iNLP121,NSP120201405-201504

*UVCT,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52360iNLP121,NSP120201011-201405

*UVCT,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-52230iNLP121,NSP120201011-201405

68151CRUN, FRONT DOOR GLASS, LH

main68151-52210iNLP121,NSP120201405-201504

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52170iNLP121,NSP120201011-201108

main68160-52171iNLP121,NSP120201109-201208

main68160-52172iNLP121,NSP120201208-201405

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52170iNLP121,NSP120201011-201108

main68210-52171iNLP121,NSP120201109-201208

main68210-52172iNLP121,NSP120201208-201405

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52130iNLP121,NSP120201011-201405

68620CHECK ASSY, FRONT DOOR, LH

main68610-52130iNLP121,NSP120201405-201504

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69955-47010×2iNLP121,NSP120201011-201405

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-47010×2iNLP121,NSP120201011-201405

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52120iNLP121,NSP120201011-201405

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52120iNLP121,NSP120201405-201504

75923BTAPE, BLACK OUT, NO.2 RH

main75923-52110iNLP121,NSP120201011-201405

75924BTAPE, BLACK OUT, NO.2 LH

main75924-52110iNLP121,NSP120201011-201405

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-52010iNLP121,NSP120201405-201504

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-52010iNLP121,NSP120201405-201504

6748952020SEAL, REAR DOOR DIVISION BAR

main67489-52020

9010908295

main90109-08295

9011906983

main90119-06983

9095001620

main90950-01620

9155380612

main91553-80612

9155380620

main91553-80620

42 parts on this diagram · 2 diagrams in section
