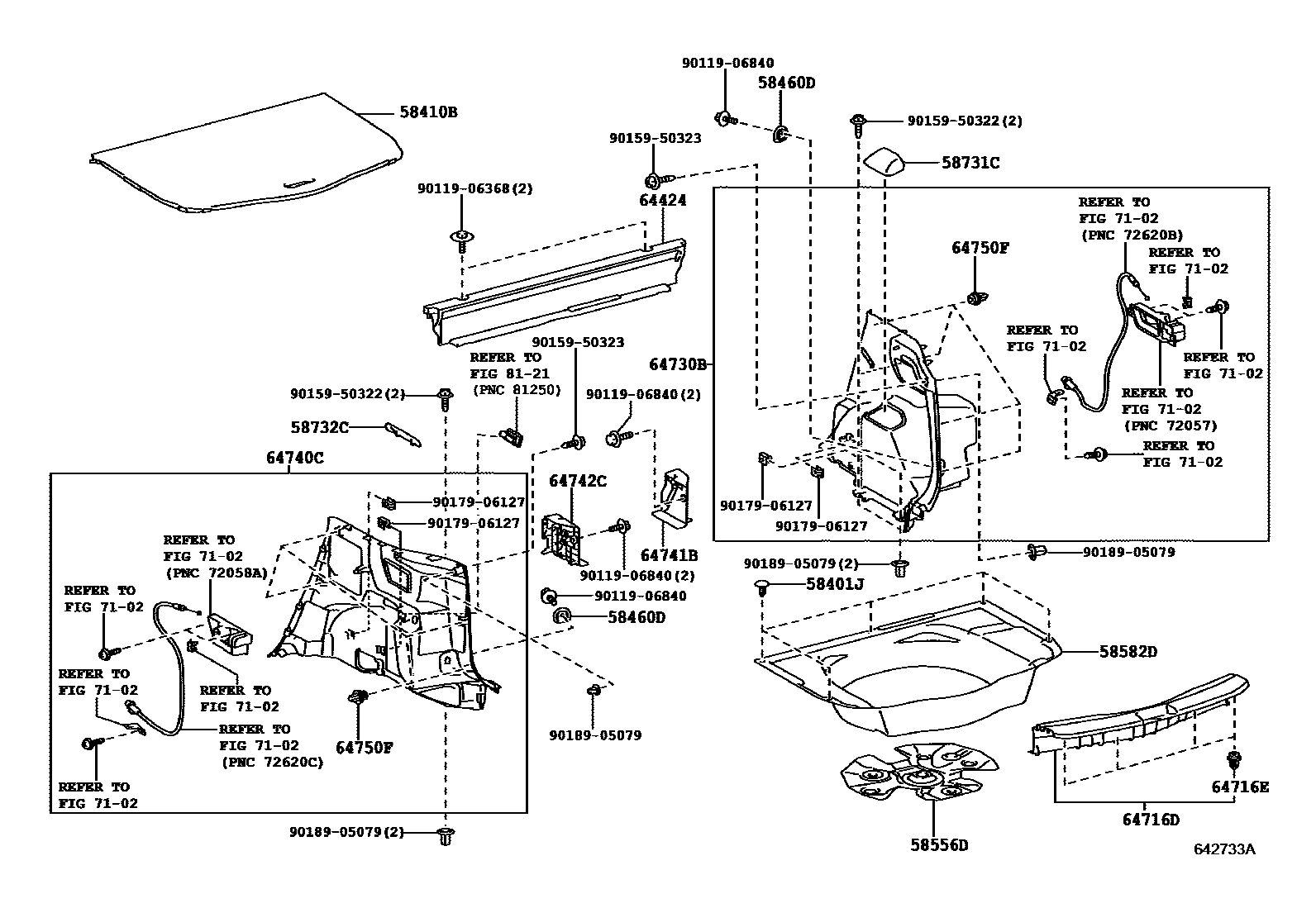

DECK BOARD & DECK TRIM COVER
58401JCLIP(FOR DECK BOAD)
58410BBOARD ASSY, DECK
DARK GRAY,TRIM1#,2#,4#
DARK GRAY,TRIM2#,4#
ENTRY GRADE&SPARE TIRE-T135/70 D16,DARK GRAY,TRIM2#,4#
ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#
GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4#
ENTRY GRADE,DARK GRAY,TRIM2#
GUADELOUPE,MARTINIQUE,F.GUYANE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#
ISRAEL SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#
ENTRY GRADE&SPARE TIRE-T135/70 D16,DARK GRAY,TRIM2#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58556DSILENCER, REAR FLOOR
58582DMAT, REAR FLOOR, REAR
DARK GRAY,TRIM1#,2#,4#
DARK GRAY,TRIM2#,4#
58731CCAP, REAR ABSORBER
58732CCAP, REAR ABSORBER
64424SEPARATOR, LUGGAGE ROOM BOX
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
ENTRY GRADE,BLACK,TRIM2#
BLACK,TRIM2#,4#
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
ENTRY GRADE,BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64740CPANEL ASSY, DECK TRIM SIDE, LH
64741BBOX, DECK SIDE TRIM, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
64742CBOX, DECK SIDE TRIM, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
RUSSIA SPEC
RUSSIA SPEC&ENTRY GRADE
ENTRY GRADE
7102
8121
9011906368
main90119-06368
9011906840
main90119-06840
9015950322
main90159-50322
9015950323
main90159-50323
9017906127
main90179-06127
9018905079
main90189-05079
23 parts on this diagram · 5 diagrams in section
