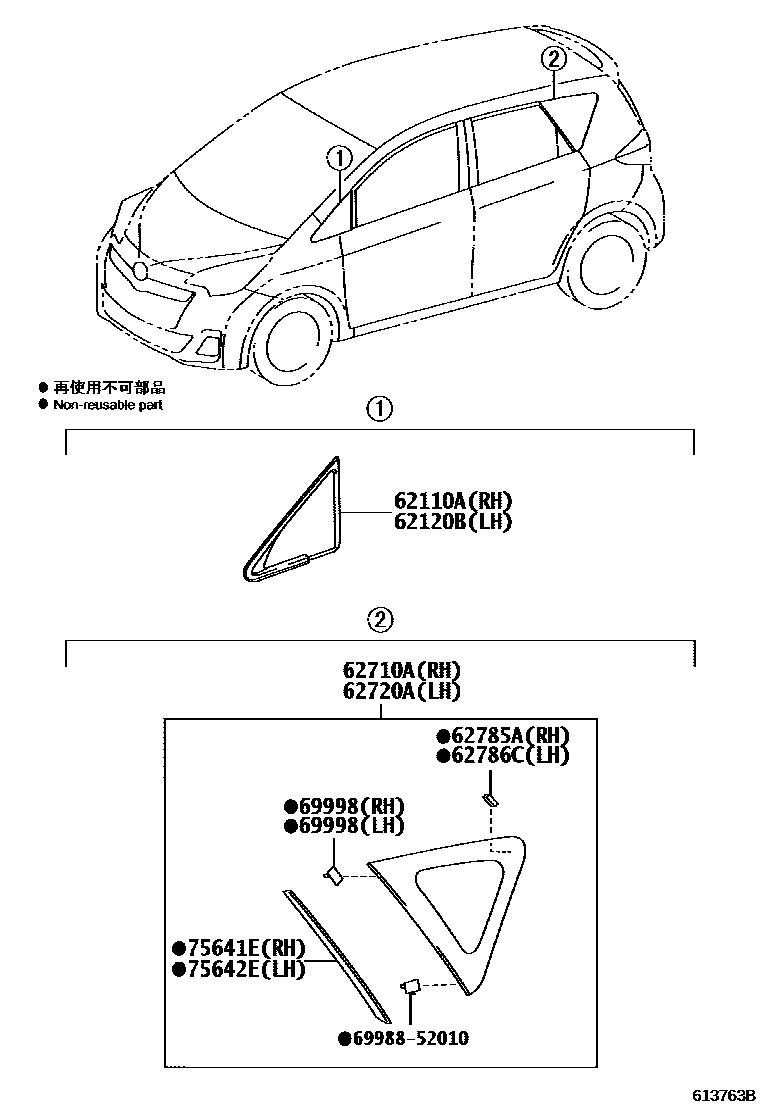

QUARTER WINDOW
62110AWINDOW ASSY, FRONT SIDE FIX, RH
62120BWINDOW ASSY, FRONT SIDE FIX, LH
62710AWINDOW ASSY, QUARTER, RH
*UVCT,T=2.8,GREEN
*TEM,T=2.8,DK.GRAY,MOON ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)
62720AWINDOW ASSY, QUARTER, LH
*UVCT,T=2.8,GREEN
*TEM,T=2.8,DK.GRAY,SIDE GLASS-FRONT:GREEN UV CUT, REAR:PRIVACY
62785ASPACER, QUARTER WINDOW GLASS
62786CSPACER, QUARTER WINDOW GLASS, LH
69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1
RH
LH
75641EMOULDING, QUARTER WINDOW, RH
75642EMOULDING, QUARTER WINDOW, LH
6998852010SPACER, QUARTER WINDOW GLASS
main69988-52010
10 parts on this diagram · 1 diagram in section
