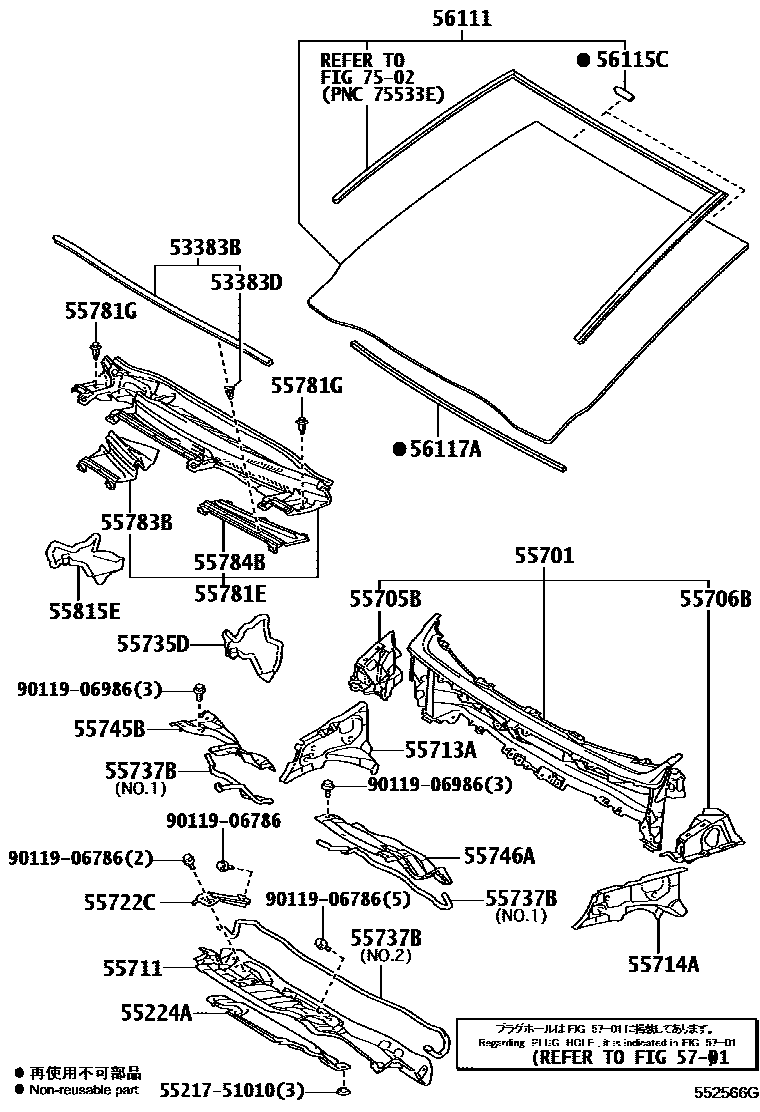

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-52120iNLP121,NSP120201011-201504

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iNLP121,NSP120201011-201504

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-52010iNLP121,NSP120201011-201504

55701PANEL SUB-ASSY, COWL

main55700-52210iNSP120..RHD201011-201504

main55700-52220iNLP121,NSP120..LHD201011-201504

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52140iNLP121,NSP120201011-201504

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52140iNLP121,NSP120201011-201504

55711PANEL, COWL TOP, OUTER

main55701-52230iNSP120..RHD201011-201504

main55701-52260iNLP121,NSP120..LHD201011-201504

55713APANEL, COWL TOP SIDE, RH

main55713-52120iNLP121,NSP120201011-201504

55714APANEL, COWL TOP SIDE, LH

main55714-52120iNLP121,NSP120201011-201504

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52150iNSP120..RHD201011-201504

main55722-52160iNLP121,NSP120..LHD201011-201504

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52030iNLP121,NSP120201011-201504

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52090iNLP121,NSP120201011-201504

NO.2

main55737-52130iNLP121,NSP120201011-201504

NO.1

55745BPANEL, COWL TOP INSIDE CORNER, RH

main55703-52330iNSP120..RHD201011-201110

sub55703-52331

main55703-52331iNSP120..RHD201111-201504

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-52110iNSP120..RHD201011-201110

sub55746-52111

main55746-52111iNSP120..RHD201111-201504

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52030iNSP120..RHD201011-201504

main55708-52200iNSP120..LHD201405-201504

COLD SPEC & WITH(REAR HEATER DUCT)

sub55708-52220

main55708-52220iNLP121201011-201405

COLD SPEC & WITH(REAR HEATER DUCT)

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09087-22iNLP121,NSP120201011-201504

BLACK

sub90467-09087

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52260iNSP120..RHD201011-201504

main55783-52270iNLP121,NSP120..LHD201011-201504

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-52100iNSP120..RHD201011-201504

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52050iNLP121,NSP120201011-201504

56111GLASS, WINDSHIELD

main56101-52570iNLP121,NSP120201011-201111

*LAM,T=4.56,GREEN

main56101-52571iNLP121,NSP120201111-201208

*LAM,T=4.56,GREEN

main56101-52572iNLP121,NSP120201208-201504

*LAM,T=4.56,GREEN

main56101-52580iNLP121,NSP120..LUNA201011-201111

*LAM,T=4.56,GREEN,HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)

main56101-52581iNLP121,NSP120..LUNA201111-201208

*LAM,T=4.56,GREEN,HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)

main56101-52582iNLP121,NSP120..LUNA201208-201405

*LAM,T=4.56,GREEN,HI GRADE 1.4 DIESEL COLD S(W/O PANORAMA)

56115CSTOPPER, WINDSHIELD GLASS

main56115-50100iNLP121,NSP120201011-201504

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iNLP121,NSP120..LUNA201011-201504

*D,L=1241,HI GRADE(WITH/PANORAMA)

5701

7502

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

9011906786

main90119-06786

9011906986

main90119-06986

27 parts on this diagram · 2 diagrams in section
