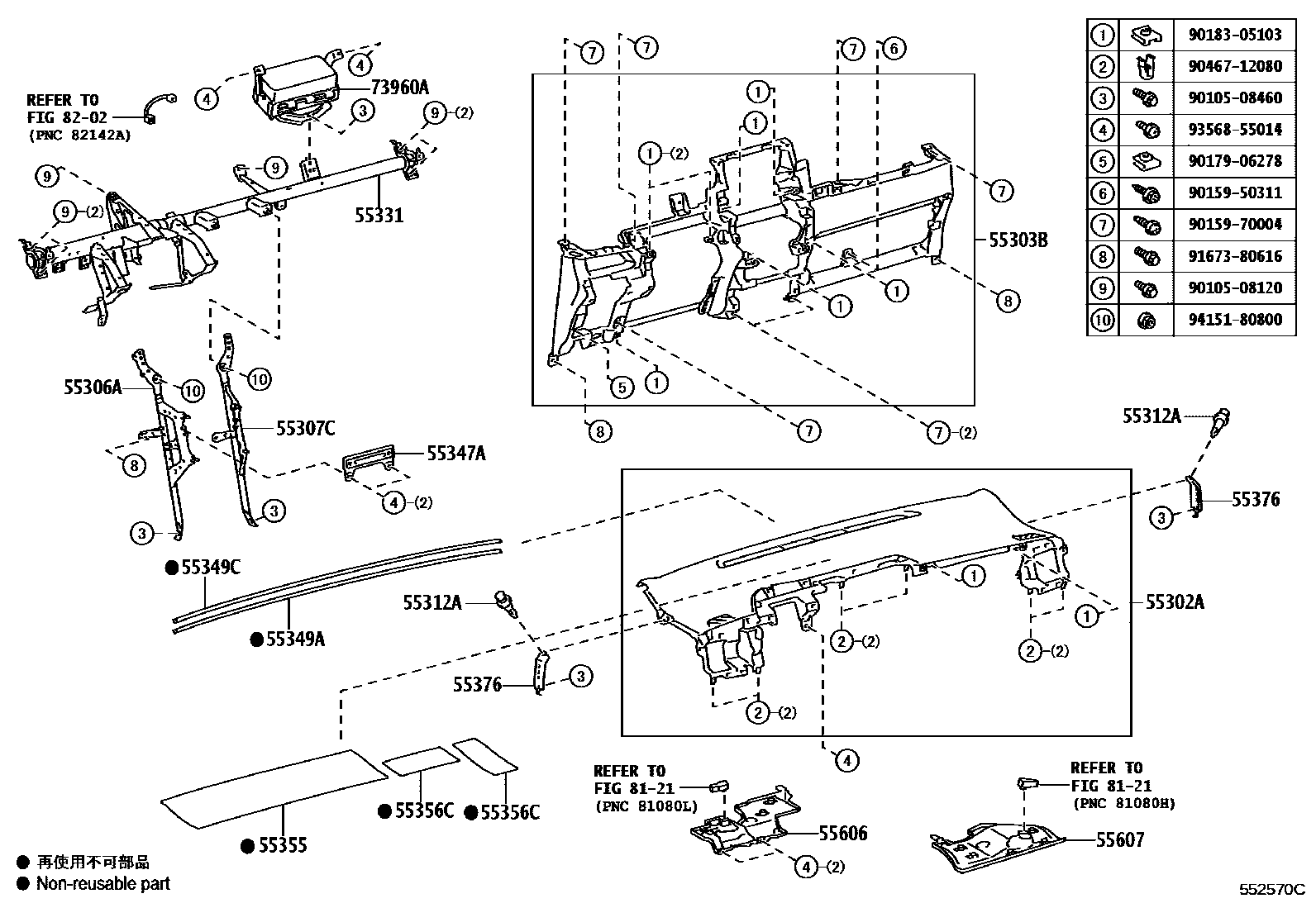

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52110-C0iNLP121,NSP120..LHD..LUNA201011-201405

BLACK,TRIM1#,2#,4#

main55302-52110-C0iNLP121,NSP120..LHD..LUNA201405-201504

BLACK,TRIM2#

main55302-52120-C0iNSP120..RHD..LUNA201011-201405

BLACK,TRIM1#,2#,4#

main55302-52120-C0iNSP120..RHD..LUNA201405-201504

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52200-C0iNLP121,NSP120..LHD..LUNA201011-201305

BLACK,TRIM1#,2#,4#

sub55303-52201

main55303-52201-C0iNLP121,NSP120..LHD..LUNA201111-201308

BLACK,TRIM1#,2#,4#

sub55303-52202

main55303-52202-C0iNLP121,NSP120..LHD..LUNA201308-201312

BLACK,TRIM1#,2#,4#

sub55303-52203

main55303-52203-C0iNLP121,NSP120..LHD..LUNA201405-201504

BLACK,TRIM2#

main55303-52203-C0iNLP121,NSP120..LHD..LUNA201401-201405

BLACK,TRIM1#,2#,4#

main55303-52210-C0iNSP120..RHD..LUNA201011-201305

BLACK,TRIM1#,2#,4#

sub55303-52211

main55303-52211-C0iNSP120..RHD..LUNA201111-201308

BLACK,TRIM1#,2#,4#

sub55303-52212

main55303-52212-C0iNSP120..RHD..LUNA201308-201312

BLACK,TRIM1#,2#,4#

sub55303-52213

main55303-52213-C0iNSP120..RHD..LUNA201401-201405

BLACK,TRIM1#,2#,4#

main55303-52213-C0iNSP120..RHD..LUNA201405-201504

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52220iNLP121,NSP120..LHD201011-201504

main55306-52230iNSP120..RHD201011-201504

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52040iNLP121,NSP120..LHD201011-201504

main55307-52050iNSP120..RHD201011-201504

55312ACLIP, INSTRUMENT PANEL

main52161-16010iNLP121,NSP120201011-201504

sub52161-0K040

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52561iNLP121,NSP120..LHD201011-201504

main55330-52571iNSP120..RHD201011-201504

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-52090iNLP121,NSP120201011-201504

55349ACUSHION, INSTRUMENT PANEL

main55349-52060iNLP121,NSP120201011-201504

55349CCUSHION, INSTRUMENT PANEL

main55349-52060iNLP121,NSP120201011-201504

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52120iNLP121,NSP120201011-201504

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52180iNLP121,NSP120201011-201504

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52100iNLP121,NSP120201011-201504

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-52050iNLP121,NSP120..LHD201011-201504

main55606-52060iNSP120..RHD201011-201504

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-52050iNLP121,NSP120..LHD201011-201504

main55607-52060iNSP120..RHD201011-201504

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52140iNLP121,NSP120201011-201301

sub73960-52141

main73960-52141iNLP121,NSP120201302-201504

8121

8202

9010508120

main90105-08120

9010508460

main90105-08460

9015950311

main90159-50311

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

27 parts on this diagram · 8 diagrams in section
