EPC Data

FLOOR SIDE MEMBER

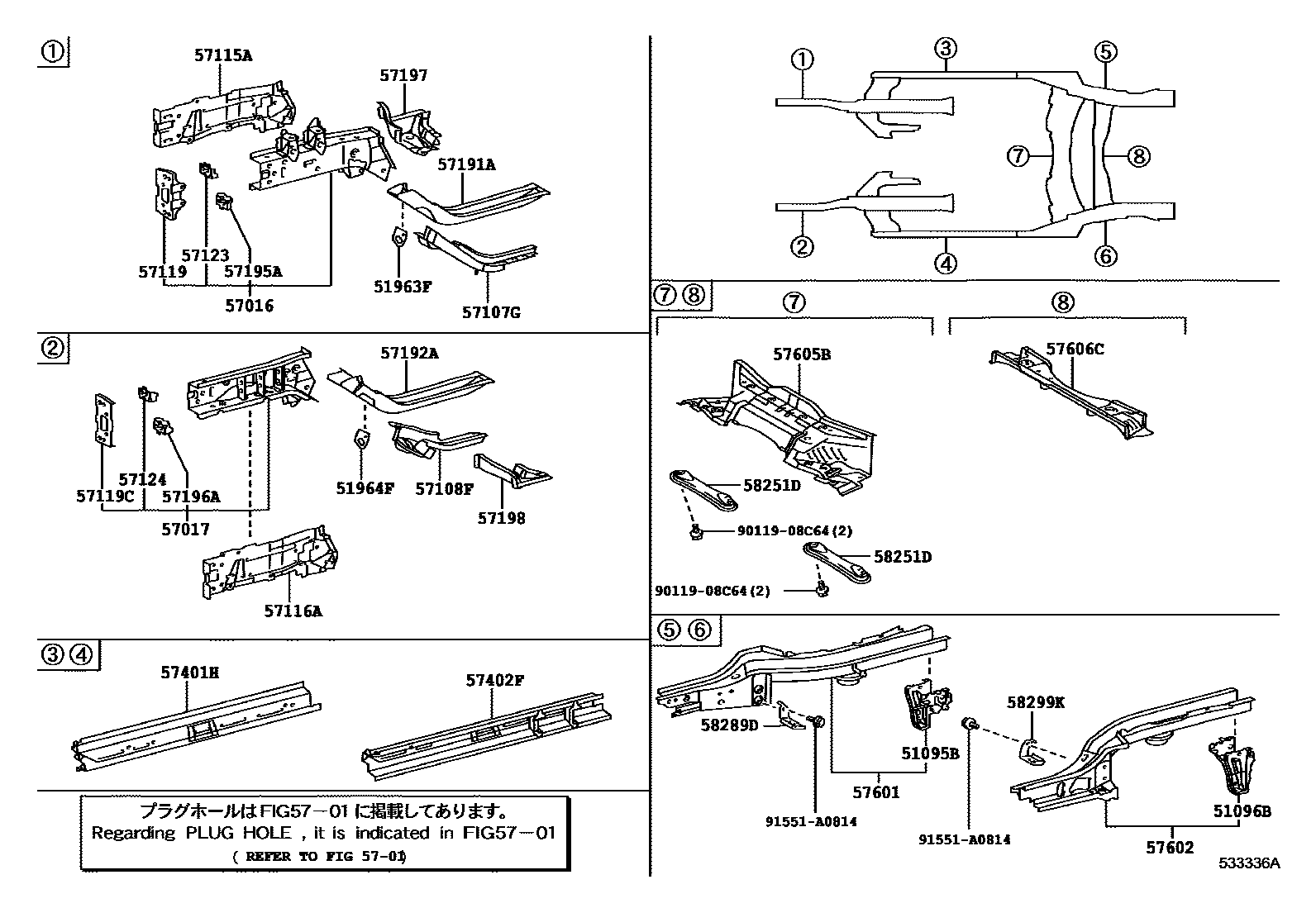

Parts diagram
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
main51095-52020i201011-201504
51096BHOOK SUB-ASSY, TRANSPORT, REAR LH
main51096-52010i201011-201504
51963FHOOK, TRANSPORT
main51963-52050i201011-201504
51964FHOOK, TRANSPORT, LH
main51963-52050i201011-201504
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
main57016-52070i201011-201504
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
main57017-52060i201011-201504
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
main57107-52030i201011-201504
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
main57108-52030i201011-201504
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57025-52010i201011-201504
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57026-52010i201011-201504
57119PLATE, FRONT SIDE MEMBER, FRONT
main57119-52020i201011-201504
57119CPLATE, FRONT SIDE MEMBER, FRONT
main57129-52010i201011-201504
57123SUPPORT, FRONT SIDE MEMBER, RH
main57123-52010i201011-201504
57124SUPPORT, FRONT SIDE MEMBER, LH
main57124-52010i201011-201504
57191AMEMBER, FRONT SIDE, INNER REAR RH
main57191-52020i201011-201504
57192AMEMBER, FRONT SIDE, INNER REAR LH
main57192-52020i201011-201504
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
main57195-52020i201011-201504
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
main57196-52010i201011-201504
57197BOX, TORQUE, FRONT RH
main57197-52030i201011-201504
57198BOX, TORQUE, FRONT LH
main57198-52030i201011-201504
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
main57401-52190i201011-201504
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
main57402-52210i201011-201409
sub57402-52280
main57402-52280i201410-201504
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
main57601-52230i201011-201310
sub57601-52400
main57601-52232i201401-201412
sub57601-52233
main57601-52233i201501-201504
main57601-52400i201310-201312
sub57601-52232
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
main57602-52280i201011-201310
sub57602-52470
main57602-52282i201401-201412
sub57602-52283
main57602-52283i201501-201504
main57602-52470i201310-201312
sub57602-52282
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
main57605-52110i201011-201307
sub57605-52111
main57605-52111i201308-201504
sub57605-52112
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
main57606-52170i201011-201304
sub57606-52171
main57606-52171i201305-201504
58251DBRACE, FLOOR PANEL, FRONT
main58251-52020i201011-201504
58289DBRACKET, FLOOR BRAKE HOSE, REAR
main58289-52080i201011-201504
58299KBRACKET, FLOOR BRAKE HOSE, REAR LH
main58299-52100i201011-201504
9011908C64
main90119-08C64
91551A0814
main91551-A0814

32 parts on this diagram · 1 diagram in section
