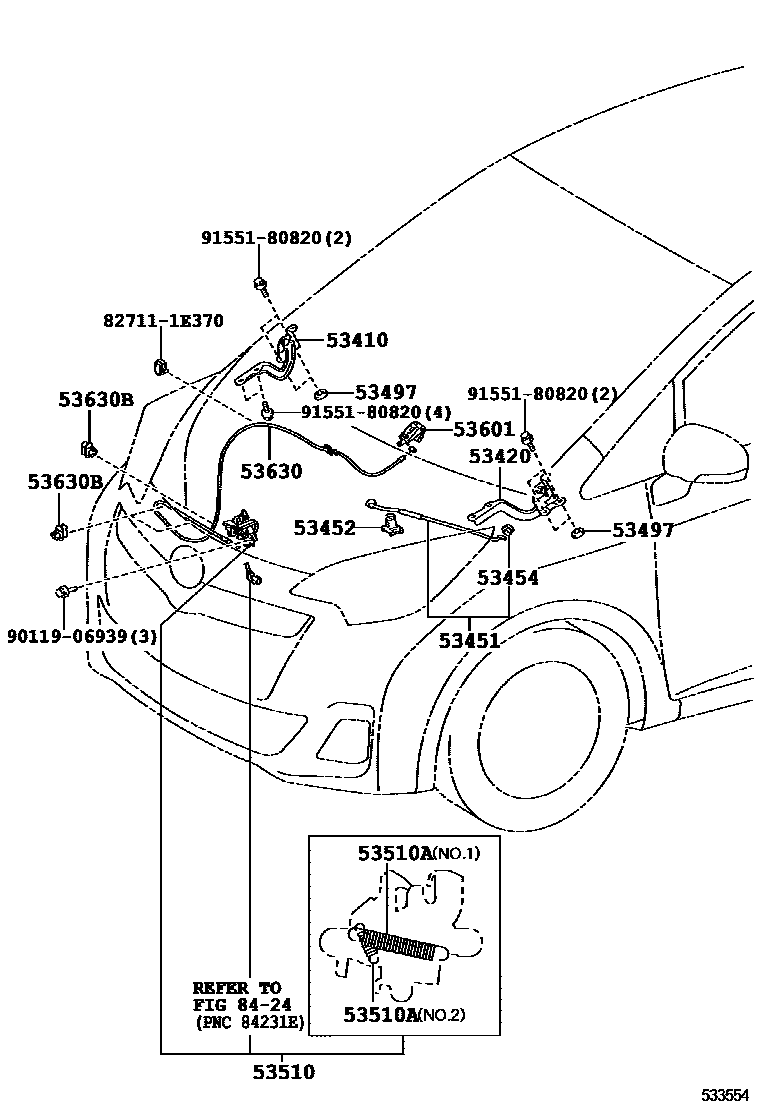

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-52310iNLP121,NSP120201011-201504

53420HINGE ASSY, HOOD, LH

main53420-52320iNLP121,NSP120201011-201504

53451ROD, HOOD SUPPORT

main53440-52200iNLP121,NSP120201011-201304

sub53440-52201

main53440-52201iNLP121,NSP120201305-201502

sub53440-52202

main53440-52202iNLP121,NSP120201503-201504

53452HOLDER, HOOD STAY

main53452-52020iNLP121,NSP120201011-201504

53454CLIP, HOOD SUPPORT ROD

main53454-12040iNLP121,NSP120201011-201504

53497PAD, HOOD HINGE, NO.1

main53497-20070iNLP121,NSP120201011-201104

T=2.0

main53497-42010iNLP121,NSP120201011-201504

T=0.5

53510LOCK ASSY, HOOD

main53510-52411iNSP120..RHD201011-201504

main53510-52481iNLP121,NSP120..LHD201011-201504

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10046iNSP120..RHD201011-201504

WD=1.0,CW=15.5,NO.2

main90506-10047iNLP121,NSP120..LHD201011-201504

WD=1.0,CW=24,NO.2

main90506-16080iNLP121,NSP120201011-201504

WD=1.6,CW=13,NO.1

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iNLP121,NSP120..TERRA201011-201504

BLACK,TRIM2#

sub53601-52010

main53601-52010-C0iNLP121,NSP120..LUNA201011-201405

BLACK,TRIM1#,2#,4#

sub53601-52010

main53601-52010-C0iNLP121,NSP120..TERRA201405-201504

BLACK,TRIM2#,4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52120iNLP121,NSP120201011-201504

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNLP121,NSP120201011-201504

8424

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 2 diagrams in section
