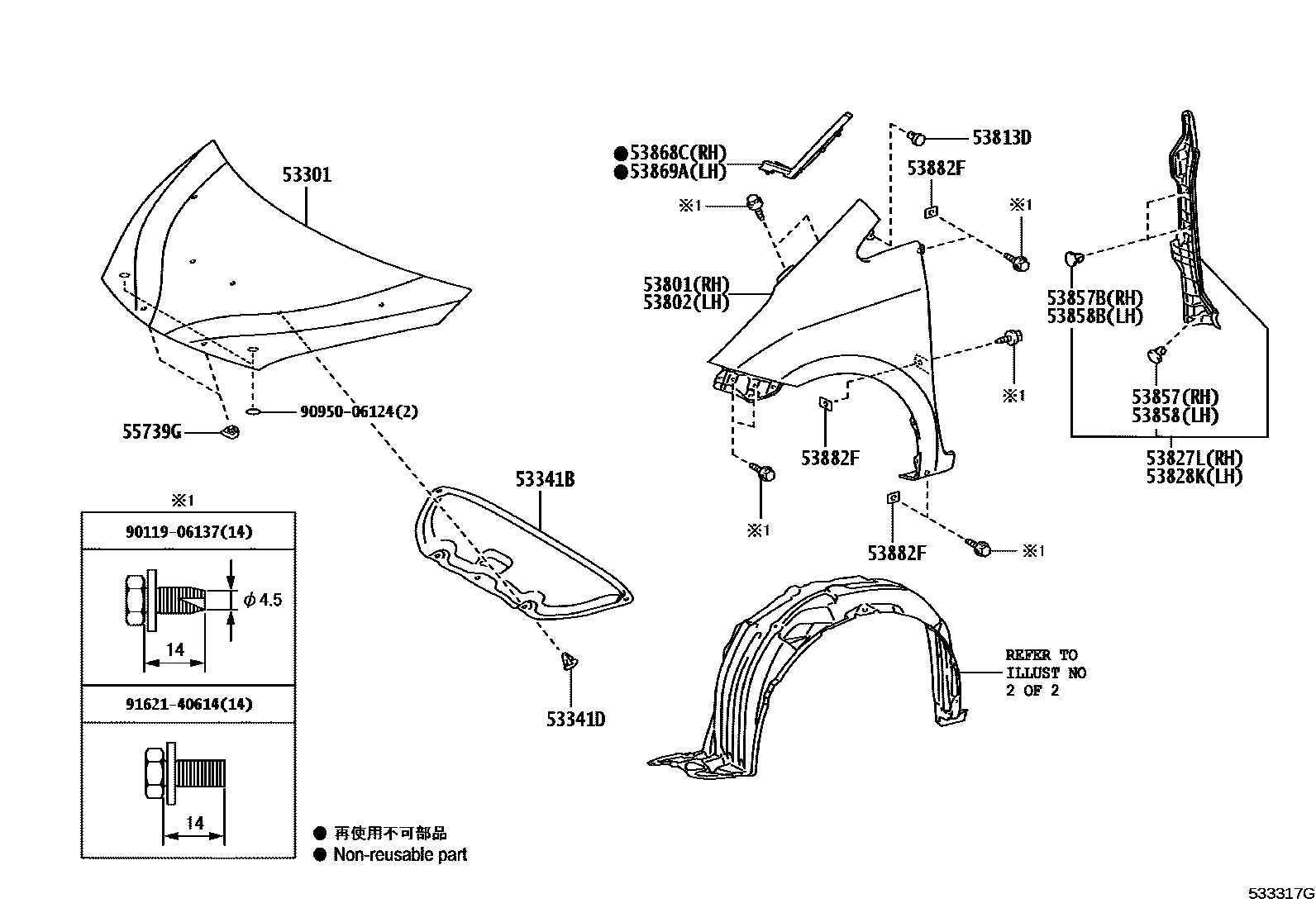

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-52300iNLP121,NSP120201011-201504

53341BINSULATOR, HOOD

main53341-52170iNLP121,NSP120201011-201504

53341DCLIP(FOR HOOD INSULATER)

main90467-09050iNLP121,NSP120201011-201504

53801FENDER SUB-ASSY, FRONT RH

main53811-52320iNLP121,NSP120201011-201504

53802FENDER SUB-ASSY, FRONT LH

main53812-52300iNLP121,NSP120201011-201504

53813DEXTENSION, FRONT FENDER

main53813-48011iNLP121,NSP120201011-201504

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52140iNLP121,NSP120201011-201504

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52110iNLP121,NSP120201011-201504

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNLP121,NSP120201011-201504

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47020iNLP121,NSP120201011-201504

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNLP121,NSP120201011-201504

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47020iNLP121,NSP120201011-201504

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-52050iNLP121,NSP120201011-201212

main53868-52051iNLP121,NSP120201212-201504

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-52060iNLP121,NSP120201011-201212

main53869-52061iNLP121,NSP120201212-201504

53882FSEAL, FRONT FENDER

main53882-16030iNLP121,NSP120201011-201504

55739GSTOPPER, HOOD

main55738-52050iNLP121,NSP120201011-201504

9011906137

main90119-06137

9095006124

main90950-06124

9162140614

main91621-40614

19 parts on this diagram · 2 diagrams in section
