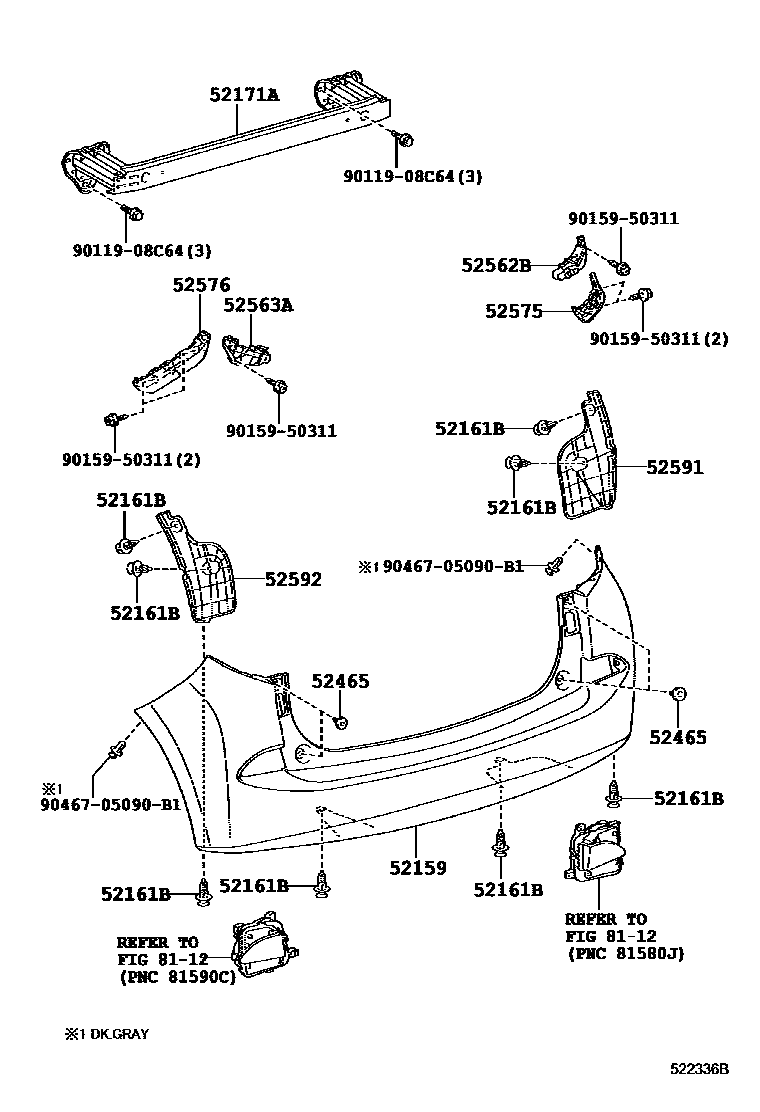

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-52964iNLP121,NSP120¥33,300201011-201209

sub52159-52973¥33,300

main52159-52973iNLP121,NSP120¥33,300201209-201504

52161BPIECE, REAR BUMPER

main52161-16010iNLP121,NSP120¥120201011-201504

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-52110iNLP121,NSP120¥20,000201011-201405

RUSSIA SPEC

main52023-52110iNLP121,NSP120¥20,000201405-201504

52465CUSHION, REAR BUMPER, NO.1

main52461-52020iNLP121,NSP120¥590201011-201504

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-52050iNLP121,NSP120¥2,660201011-201504

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-52020iNLP121,NSP120¥2,660201011-201504

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52120iNLP121,NSP120¥3,900201011-201504

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52100iNLP121,NSP120¥3,900201011-201504

52591SEAL, REAR BUMPER SIDE, RH

main52591-52290iNLP121,NSP120¥2,020201011-201504

52592SEAL, REAR BUMPER SIDE, LH

main52592-52280iNLP121,NSP120¥2,020201011-201504

8112

9011908C64

main90119-08C64¥90

9015950311

main90159-50311¥70

9046705090B1

main90467-05090B1

14 parts on this diagram · 1 diagram in section
