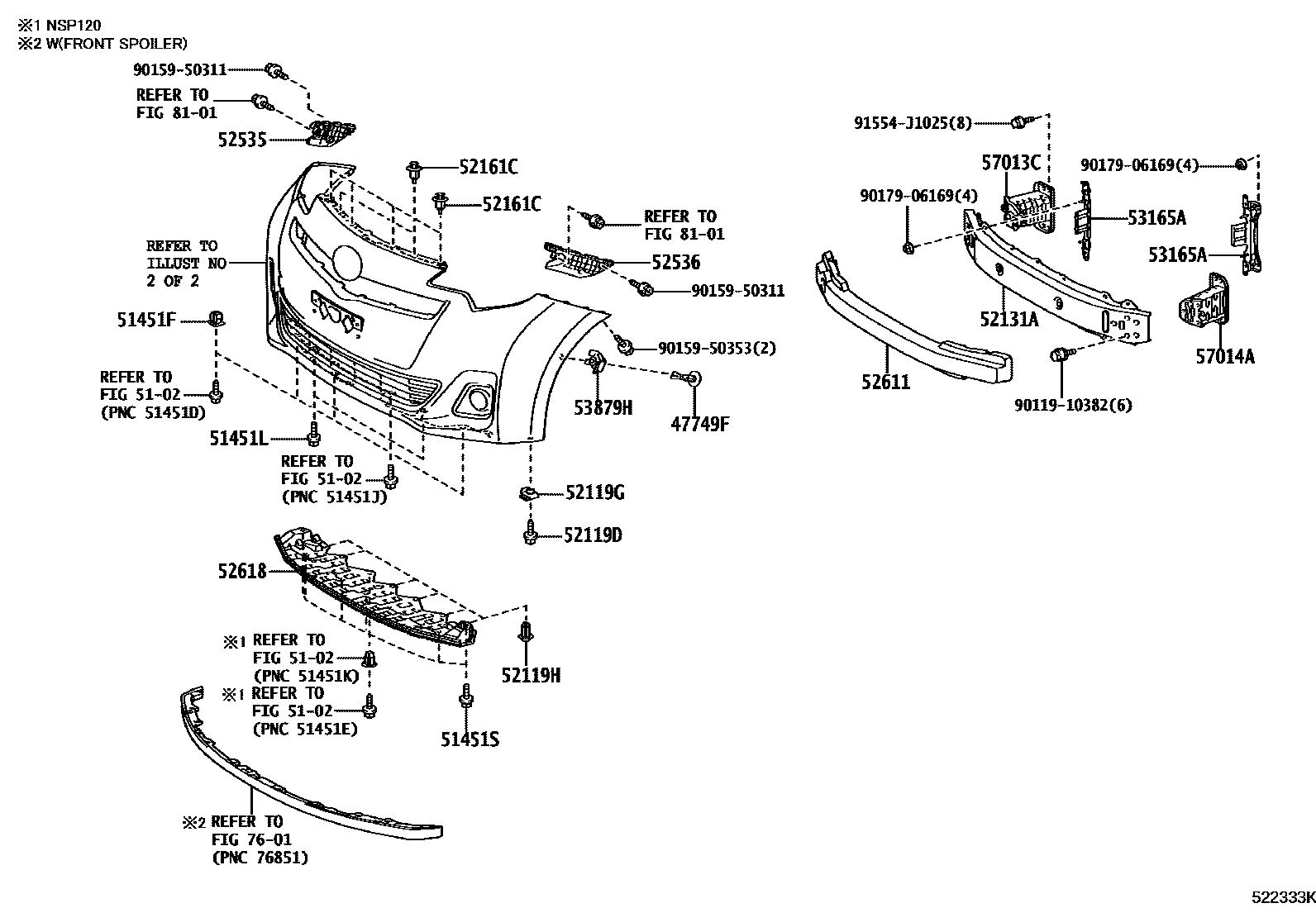

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-50090iNLP121,NSP120201402-201504

main47749-58010iNLP121,NSP120201011-201402

5102

51451FGROMMET, NO.1

main90189-06193iNLP121,NSP120201011-201108

main90189-06237iNLP121,NSP120201109-201504

51451LBOLT, NO.1

main90119-06767iNLP121,NSP120201011-201504

51451SBOLT, NO.2

main90119-06767iNLP121,NSP120201011-201504

52119DSCREW, NO.1

main90159-60352iNSP120..LHD201011-201504

W(FRONT SPOILER)

main90159-60590iNLP121,NSP120201011-201504

52119GCLIP, NO.1

main90467-05114iNLP121,NSP120201011-201504

52119HCLIP, NO.2

main90467-10216iNLP121,NSP120201011-201504

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNLP121,NSP120201011-201504

52161CPIECE, FRONT BUMPER

main52161-16010iNLP121,NSP120201011-201504

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52100iNLP121,NSP120201011-201504

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52070iNLP121,NSP120201011-201504

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52090iNLP121,NSP120201011-201107

main52611-52091iNLP121,NSP120201108-201504

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52040iNLP121,NSP120201011-201504

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52060iNLP121,NSP120201011-201504

53879HRETAINER, FRONT FENDER LINER

main53879-50020iNLP121,NSP120201403-201504

main53879-58010iNLP121,NSP120201011-201402

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52010iNLP121,NSP120201011-201207

sub57013-52011

main57013-52011iNLP121,NSP120201208-201504

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52010iNLP121,NSP120201011-201504

7601

8101

9011910382

main90119-10382

9015950311

main90159-50311

9015950353

main90159-50353

9017906169

main90179-06169

91554J1025

main91554-J1025

25 parts on this diagram · 2 diagrams in section
