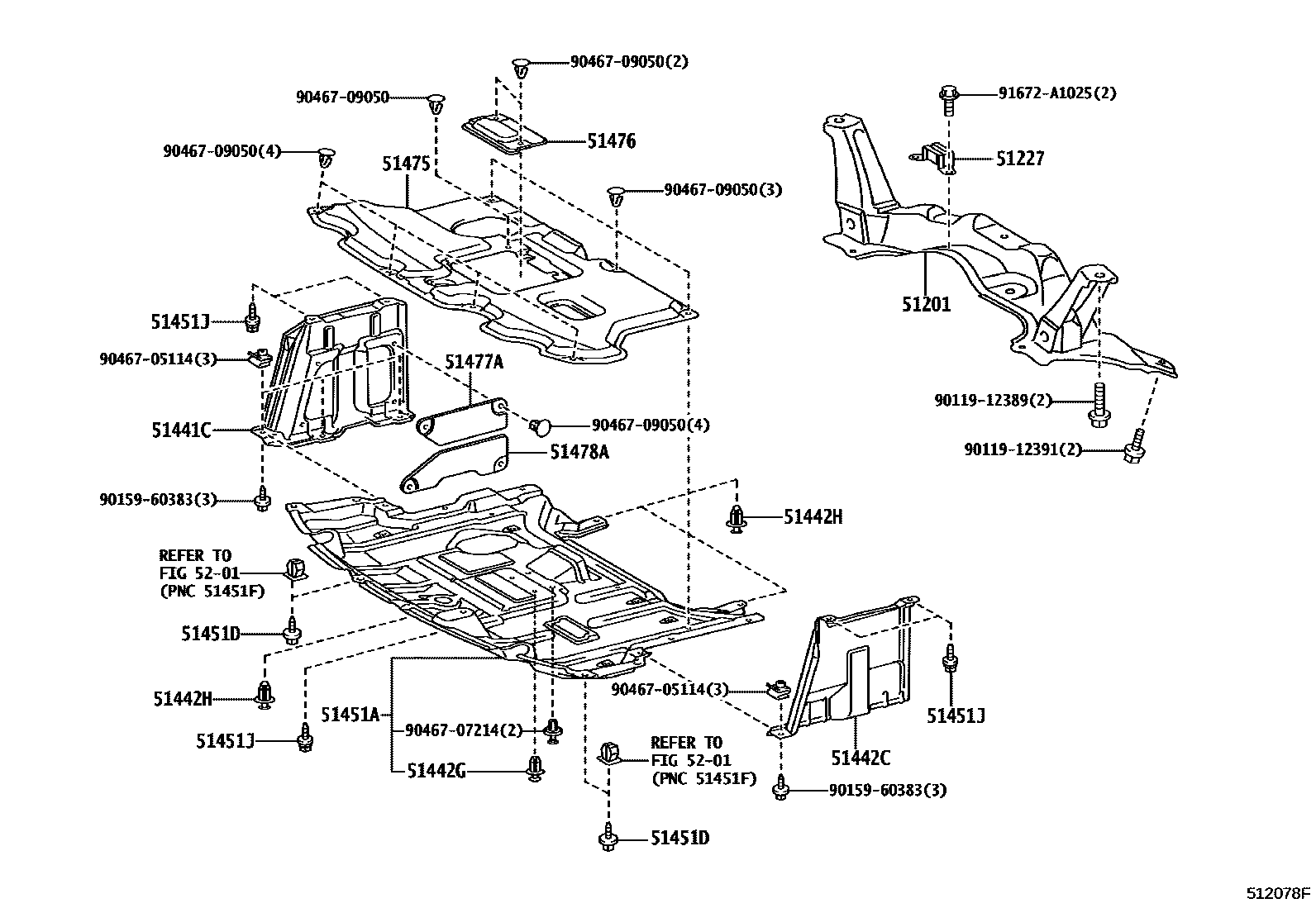

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iNSP120201011-201102

sub51201-52083

main51201-52083iNSP120201102-201112

sub51201-52084

main51201-52084iNSP120201201-201204

sub51201-52085

main51201-52085iNSP120201205-201206

sub51201-52086

main51201-52086iNSP120201206-201210

sub51201-52087

main51201-52087iNSP120201211-201504

main51201-52090iNLP121201011-201102

sub51201-52093

main51201-52093iNLP121201102-201112

sub51201-52094

main51201-52094iNLP121201201-201204

sub51201-52095

main51201-52095iNLP121201205-201207

sub51201-52096

main51201-52096iNLP121201208-201210

sub51201-52097

main51201-52097iNLP121201211-201504

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-52070iNLP121201011-201504

51441CCOVER, ENGINE UNDER, RH

main51441-52180iNSP120201011-201504

main51441-52260iNLP121201011-201504

51442CCOVER, ENGINE UNDER, LH

main51442-52090iNSP120201011-201504

main51442-52120iNLP121201011-201504

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-05063-C0iNLP121201011-201504

BLACK

sub90467-05063

51442HCLIP, ENGINE UNDER COVER, NO.2

main90467-10216iNSP120201011-201504

51451ACOVER, ENGINE UNDER, CENTER

main51451-52020iNLP121201011-201504

51451DSCREW, NO.1

main90159-60383iNLP121,NSP120201011-201504

51451JBOLT, NO.1

main90109-06283iNLP121201011-201504

main90119-06767iNSP120201011-201504

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-52020iNLP121201011-201504

51476SILENCER, TRANSMISSION COVER, CENTER

main51476-52010iNLP121201011-201504

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-52020iNLP121201011-201504

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-52020iNLP121201011-201504

5201

9011912389

main90119-12389

9011912391

main90119-12391

9015960383

main90159-60383

9046705114

main90467-05114

9046707214

main90467-07214

9046709050

main90467-09050

91672A1025

main91672-A1025

21 parts on this diagram · 2 diagrams in section
