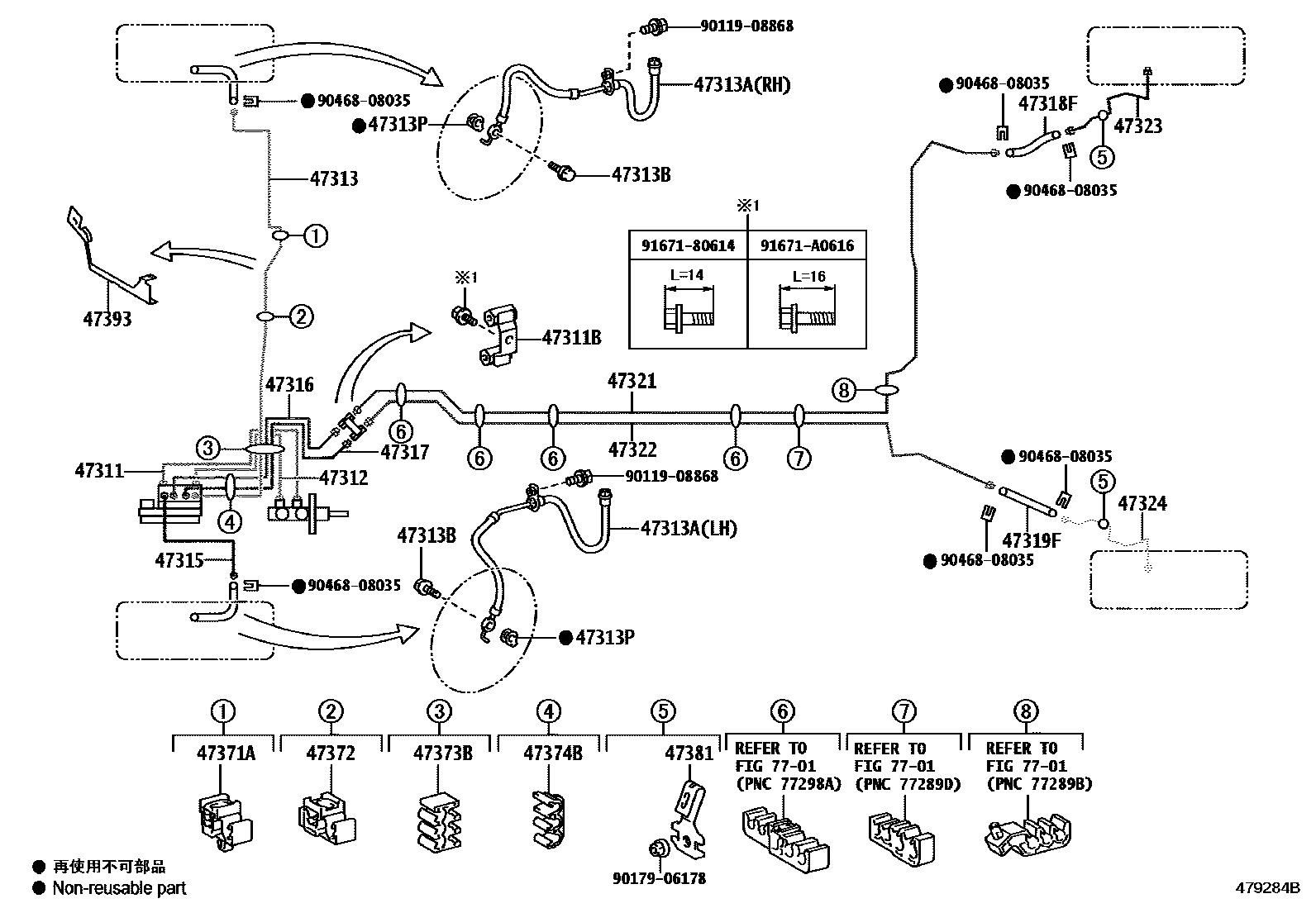

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1REAR DISC BRAKE 0004 1 0005 1REAR DISC BRAKE 0006 1 0007 1REAR DISC BRAKE 0008 1 0009 1 0010 1 0011 1 0012 1REAR DISC BRAKE 0013 1REAR DISC BRAKE 0014 1REAR DISC BRAKE 0015 1 0017 1 0018 1

47311TUBE, FRONT BRAKE, NO.1

main47311-52550iNSP120..LHD..CVT201011-201504

main47311-52670iNSP120..RHD201011-201504

main47311-52690iNSP120..LHD..6F201011-201504

main47311-52710iNLP121201011-201504

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNLP121,NSP120201011-201504

47312TUBE, FRONT BRAKE, NO.2

main47312-52510iNSP120..LHD..CVT201011-201504

main47312-52590iNSP120..RHD201405-201504

main47312-52620iNSP120..RHD201011-201405

main47312-52640iNSP120..LHD..6F201011-201504

main47312-52660iNLP121201011-201504

47313TUBE, FRONT BRAKE, NO.3

main47313-52230iNSP120..RHD201011-201405

sub47313-52210

main47313-52231iNSP120..RHD201405-201504

main47313-52250iNSP120..LHD..6F201011-201405

sub47313-52340

main47313-52251iNSP120..LHD..6F201405-201504

sub47313-52341

main47313-52270iNSP120..LHD..CVT201011-201405

main47313-52271iNSP120..LHD..CVT201405-201504

main47313-52340iNLP121201011-201405

main47313-52341iNLP121201405-201504

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E07iNLP121,NSP120201011-201111

RH

main90947-02E08iNLP121,NSP120201011-201111

LH

main90947-02G34iNLP121,NSP120201111-201405

RH

main90947-02G35iNLP121,NSP120201111-201405

LH

main90947-02H35iNLP121,NSP120201405-201504

RH

main90947-02H36iNLP121,NSP120201405-201504

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNLP121,NSP120201011-201504

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iNLP121,NSP120201011-201504

47315TUBE, FRONT BRAKE, NO.5

main47315-52210iNLP121,NSP120..LHD..MTM201011-201405

main47315-52211iNLP121,NSP120..LHD..6F201405-201504

main47315-52230iNSP120..RHD201011-201405

sub47315-52290

main47315-52231iNSP120..RHD201405-201504

main47315-52250iNSP120..LHD..CVT201011-201405

main47315-52251iNSP120..LHD..CVT201405-201504

47316TUBE, FRONT BRAKE, NO.6

main47316-52190iNSP120..RHD201011-201405

main47316-52191iNSP120..RHD201405-201504

main47316-52200iNLP121,NSP120..LHD..MTM201011-201405

main47316-52201iNLP121,NSP120..LHD..6F201405-201504

main47316-52220iNSP120..LHD..CVT201011-201405

main47316-52221iNSP120..LHD..CVT201405-201504

47317TUBE, FRONT BRAKE, NO.7

main47317-52190iNSP120..RHD201011-201405

main47317-52191iNSP120..RHD201405-201504

main47317-52200iNLP121,NSP120..LHD..MTM201011-201405

main47317-52201iNLP121,NSP120..LHD..6F201405-201504

main47317-52220iNSP120..LHD..CVT201011-201405

main47317-52221iNSP120..LHD..CVT201405-201504

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E09iNLP121,NSP120201011-201111

main90947-02G36iNLP121,NSP120201111-201405

main90947-02H31iNLP121,NSP120201405-201504

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E10iNLP121,NSP120201011-201111

main90947-02G38iNLP121,NSP120201111-201405

main90947-02H32iNLP121,NSP120201405-201504

47321TUBE, REAR BRAKE, NO.1

main47321-52320iNLP121,NSP120201011-201405

main47321-52321iNLP121,NSP120201405-201504

47322TUBE, REAR BRAKE, NO.2

main47322-52300iNLP121,NSP120201011-201405

main47322-52301iNLP121,NSP120201405-201504

47323TUBE, REAR BRAKE, NO.3

main47323-52110iNLP121..6FS201212-201405

main47323-52130iNSP120;NLP121..6F201011-201405

main47323-52131iNLP121,NSP120201405-201504

47324TUBE, REAR BRAKE, NO.4

main47324-52100iNLP121..6FS201212-201405

main47324-52120iNSP120;NLP121..6F201011-201405

main47324-52121iNLP121,NSP120201405-201504

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iNSP120..LHD..CVT201405-201504

main90464-00920iNSP120..RHD201011-201405

main90949-01D18iNSP120..LHD..CVT201011-201405

main90949-01D82iNLP121,NSP120..LHD..MTM201011-201405

47372CLAMP, BRAKE TUBE, NO.2

main90464-00925iNSP120..LHD..CVT201011-201405

main90949-01D84iNSP120..RHD201011-201405

main90949-01D86iNLP121,NSP120..LHD..MTM201011-201405

main90949-01D94iNSP120..RHD201405-201504

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00857iNSP120..LHD..CVT201011-201405

main90464-00925iNLP121,NSP120..LHD..MTM201011-201405

main90949-01D85iNSP120..RHD201011-201405

main90949-01D97iNSP120..RHD201405-201504

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00868iNLP121,NSP120..LHD..MTM201011-201405

main90464-00929iNSP120..RHD201011-201405

main90949-01D98iNLP121,NSP120201405-201504

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020iNLP121,NSP120201011-201504

47393INSULATOR, BRAKE TUBE HEAT

main47393-52010iNLP121201011-201504

7701

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

9167180614

main91671-80614

91671A0616

main91671-A0616

28 parts on this diagram · 17 diagrams in section
