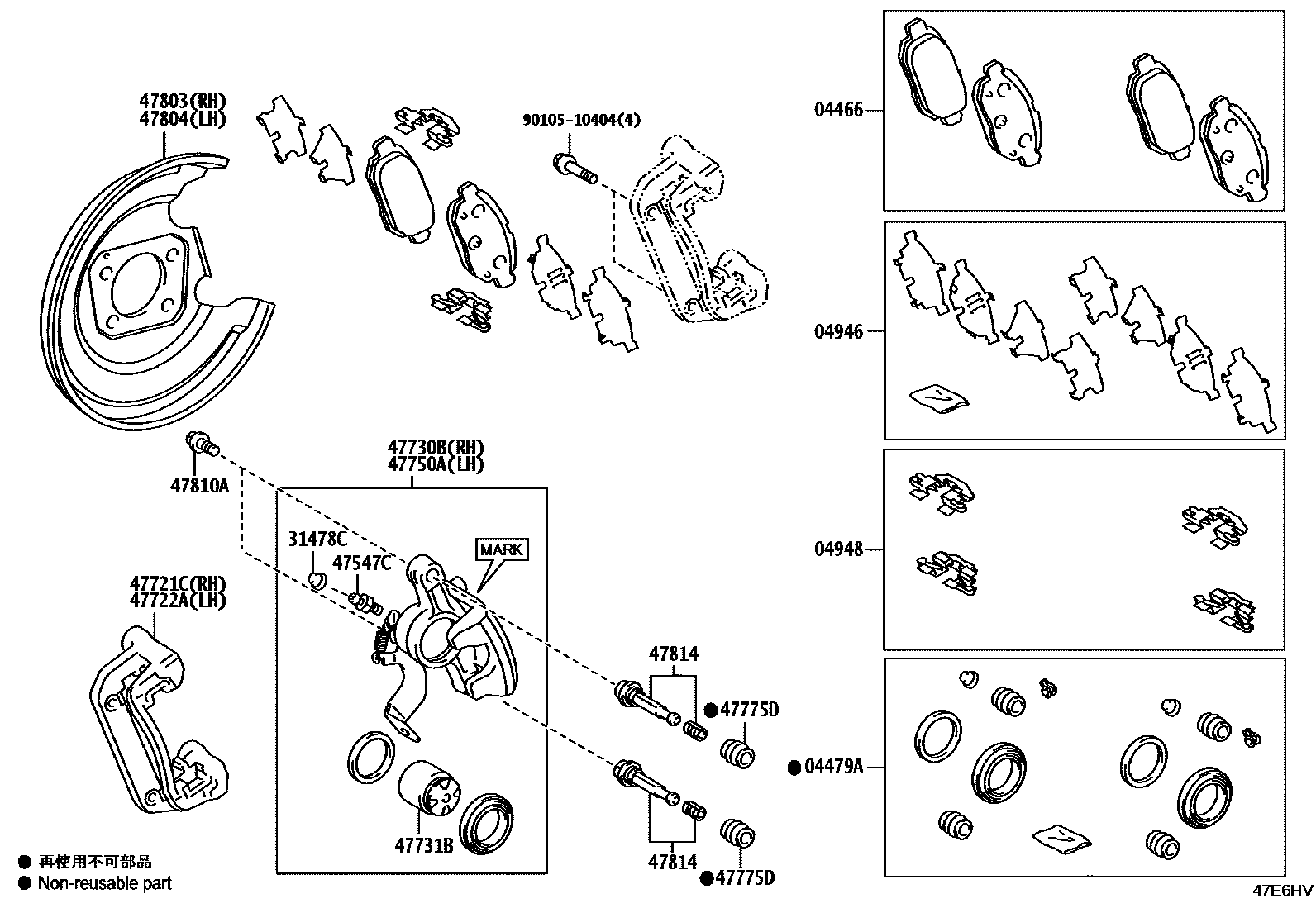

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-12150iNLP121..6FS¥5,900201212-201405

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52170iNLP121..6FS¥1,620201212-201405

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12110iNLP121..6FS¥1,450201212-201405

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNLP121..6FS¥1,040201212-201405

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNLP121..6FS¥160201212-201405

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iNLP121..6FS¥220201212-201405

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iNLP121..6FS¥5,200201212-201405

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iNLP121..6FS¥5,200201212-201405

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52161iNLP121..6FS¥28,400201212-201405

47731BPISTON, REAR DISC BRAKE

main47831-52090iNLP121..6FS¥670201212-201405

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52161iNLP121..6FS¥28,400201212-201405

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iNLP121..6FS¥220201212-201405

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52030iNLP121..6FS¥1,650201212-201405

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52030iNLP121..6FS¥1,650201212-201405

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iNLP121..6FS¥90201212-201405

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150iNLP121..6FS¥400201212-201405

9010510404

main90105-10404¥100

17 parts on this diagram · 1 diagram in section
