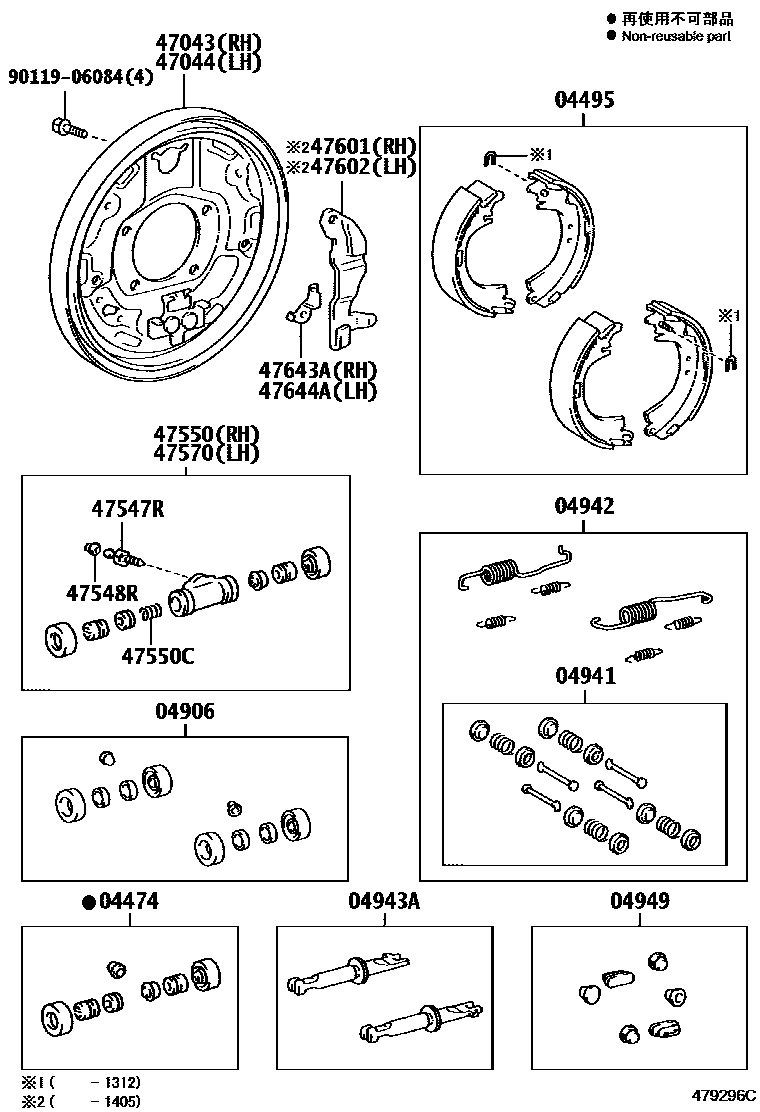

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04495SHOE KIT, REAR BRAKE
MARK NBK LN521,REAR WHEEL BRAKE-DISK(BUILT-IN)
sub04495-52160
MARK NBK LN521
MARK NBK LN521,REAR WHEEL BRAKE-DISK(BUILT-IN)
04906CUP KIT, REAR WHEEL CYLINDER
04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04942SPRING KIT, REAR BRAKE
04943ASTRUT KIT, REAR BRAKE
04949PLUG KIT, REAR BRAKE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011906084
main90119-06084
19 parts on this diagram · 1 diagram in section
