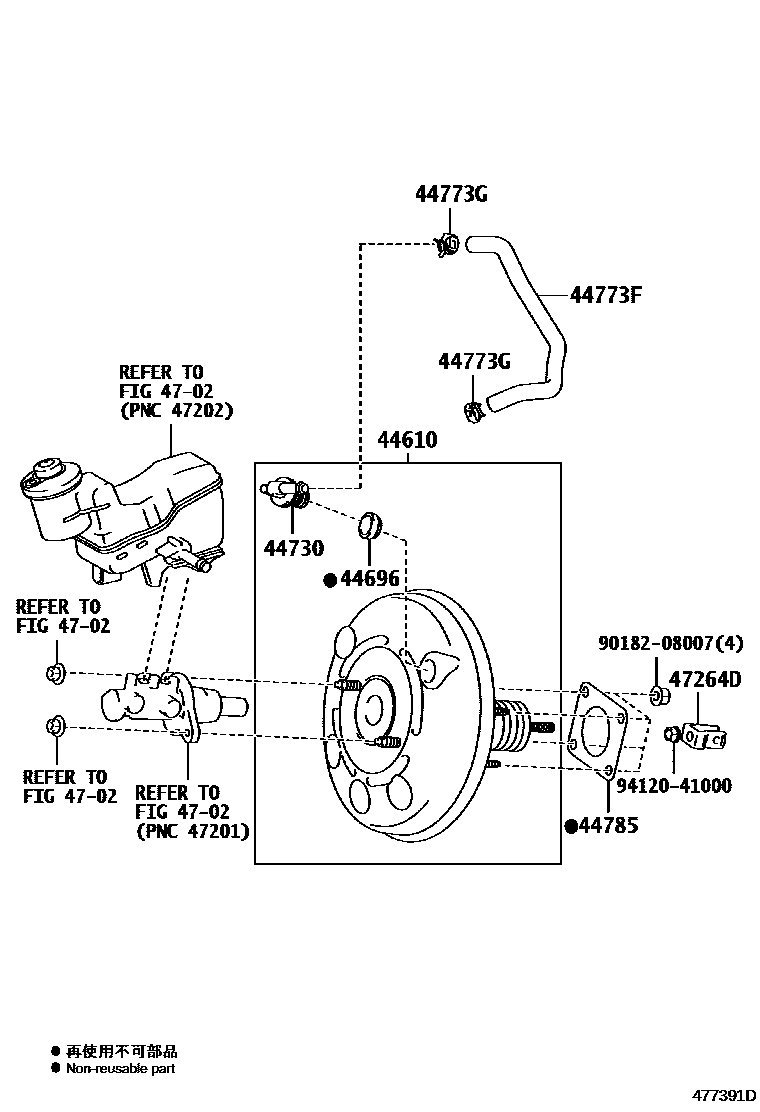

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-52850iNSP120..RHD201011-201504

main44610-52A00iNSP120..LHD..6F201011-201504

main44610-52A40iNLP121201011-201504

main44610-52D90iNSP120..LHD..CVT201011-201504

44696GROMMET, CHECK VALVE

main90480-24439iNSP120..LHD201011-201504

WITH(STOP & START SYSTEM)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iNSP120..RHD201011-201504

main44730-60070iNLP121,NSP120..LHD201011-201504

44773FHOSE, UNION TO CHECK VALVE

main44773-52240iNSP120..RHD201011-201504

main44773-52250iNSP120..LHD201011-201504

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iNSP120201011-201504

44785GASKET, BRAKE BOOSTER

main44785-16020iNLP121,NSP120201011-201504

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52010iNLP121,NSP120201011-201504

9018208007

main90182-08007

9412041000

main94120-41000

10 parts on this diagram · 3 diagrams in section
