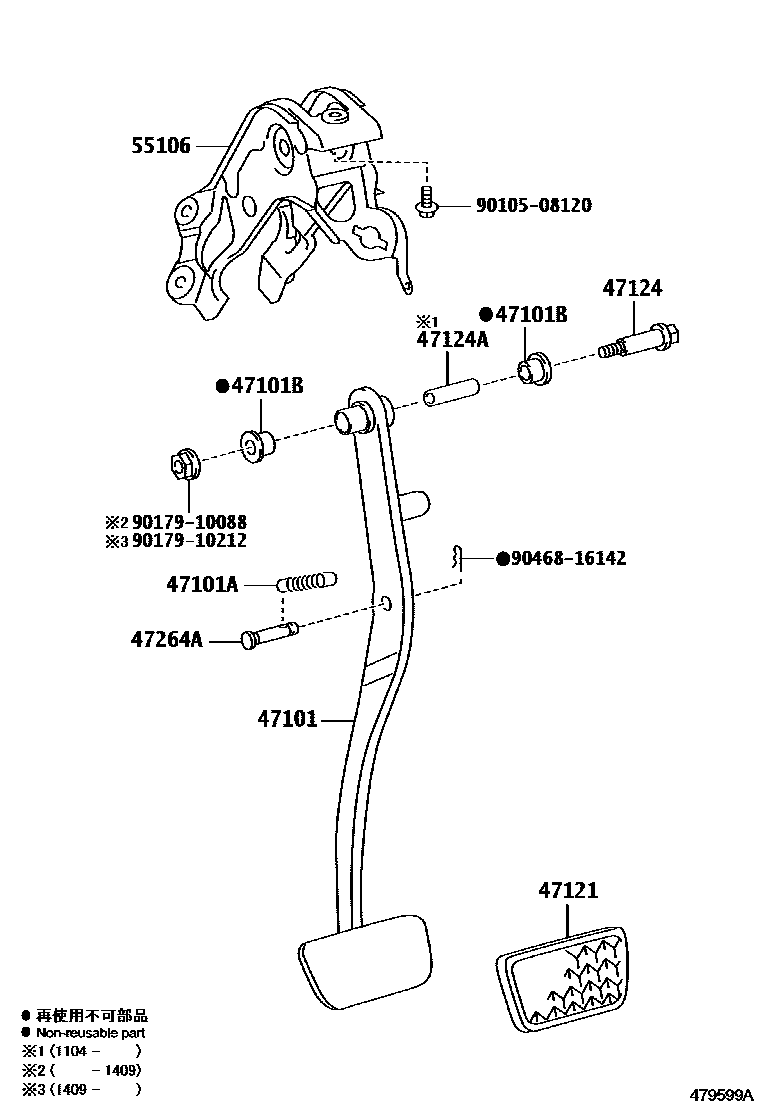

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52290iNSP120..RHD..6F201011-201504

main47101-52300iNLP121,NSP120..LHD..6F¥2,620201011-201504

main47101-52310iNSP120..RHD..CVT201011-201504

main47101-52320iNLP121..6FS;NSP120..LHD..CVT¥2,790201011-201504

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNLP121,NSP120¥180201011-201205

main90506-14088iNLP121,NSP120¥120201205-201504

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNLP121,NSP120¥120201011-201504

47121PAD, BRAKE PEDAL

main31321-52010iNLP121,NSP120..6F¥200201011-201501

main31321-52020iNLP121,NSP120..6F¥200201502-201504

main47121-52010iNSP120..CVT¥260201011-201408

main47121-52020iNSP120..CVT¥260201409-201504

47124SHAFT, BRAKE PEDAL

main90105-10444iNLP121,NSP120¥160201104-201409

main90109-10167iNLP121,NSP120¥190201011-201104

main91552-81055iNLP121,NSP120¥160201409-201504

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNLP121,NSP120¥370201104-201504

47264APIN(FOR PUSH ROD)

main90249-08051iNLP121,NSP120¥170201011-201504

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iNSP120..RHD¥3,370201011-201104

sub55106-52H01¥4,120

main55106-52131iNSP120..RHD¥2,800201104-201504

main55106-52160iNLP121,NSP120..LHD¥3,370201011-201104

sub55106-52H02¥4,120

main55106-52161iNLP121,NSP120..LHD¥2,810201104-201504

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9017910212

main90179-10212¥80

9046816142

main90468-16142¥70

12 parts on this diagram · 1 diagram in section
