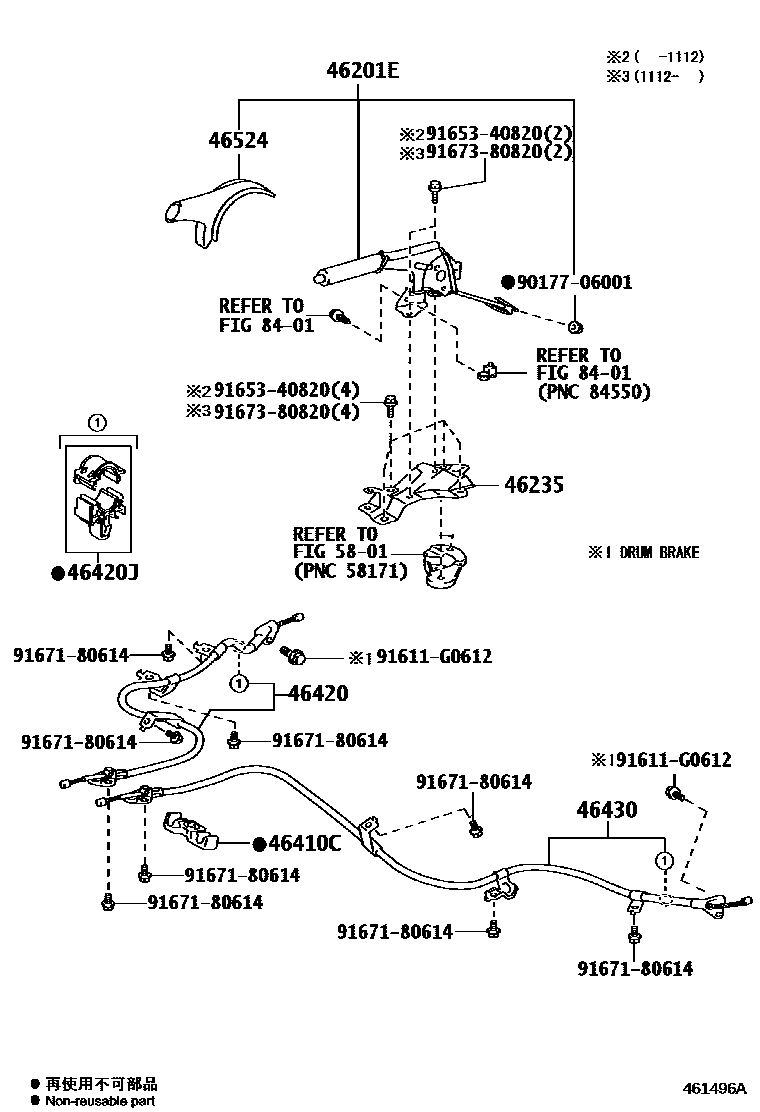

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52110-C0iNLP121..6FS201011-201405

BLACK,TRIM1#,2#,4#

main46201-52110-C0iNLP121,NSP120..TERRA201011-201504

BLACK,TRIM2#

main46201-52110-C0iNLP121,NSP120..TERRA201405-201504

BLACK,TRIM2#,4#

main46201-52120-C0iNLP121..6FS201212-201405

BLACK,TRIM1#,2#,4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52040iNLP121,NSP120201011-201504

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iNLP121,NSP120201011-201504

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52330iNSP120;NLP121..6F201011-201504

main46420-52340iNLP121..6FS201212-201405

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iNLP121,NSP120201011-201504

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52250iNLP121..6FS201011-201504

main46430-52330iNLP121..6FS201212-201405

46524COVER, PARKING BRAKE DUST

main46524-52040-C0iNLP121,NSP120..LUNA201011-201504

BLACK,TRIM2#

main46524-52040-C0iNLP121,NSP120..TERRA201011-201405

BLACK,TRIM1#,2#,4#

main46524-52040-C0iNLP121,NSP120..TERRA201405-201504

BLACK,TRIM2#,4#

5801

8401

9017706001

main90177-06001

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9167380820

main91673-80820

14 parts on this diagram · 1 diagram in section
