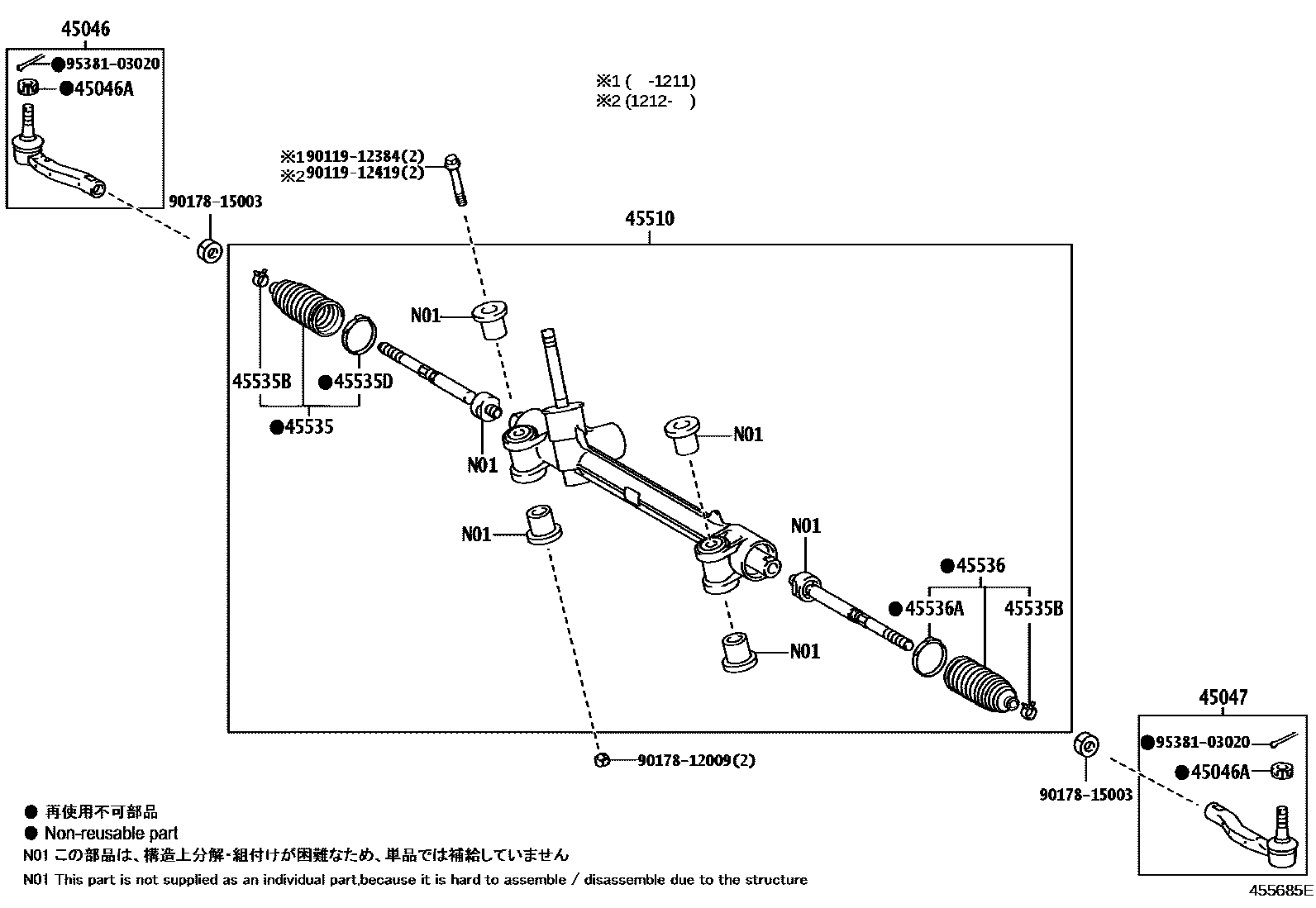

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-59205iNLP121,NSP120201011-201504

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNLP121,NSP120201011-201504

45047END SUB-ASSY, TIE ROD, LH

main45047-59145iNLP121,NSP120201011-201504

45510GEAR ASSY, STEERING

main45510-52270iNSP120..RHD201011-201211

sub45510-52271

main45510-52271iNSP120..RHD201212-201504

main45510-52280iNLP121,NSP120..LHD201011-201301

sub45510-52281

main45510-52281iNLP121,NSP120..LHD201301-201504

45535BOOT, STEERING RACK, NO.1

main45535-59015iNLP121,NSP120201011-201105

sub45535-59035

main45535-59035iNLP121,NSP120201105-201504

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNLP121,NSP120201011-201504

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNLP121,NSP120201011-201504

45536BOOT, STEERING RACK, NO.2

main45535-59015iNLP121,NSP120201011-201105

sub45535-59035

main45535-59035iNLP121,NSP120201105-201504

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNLP121,NSP120201011-201504

9011912384

main90119-12384

9011912419

main90119-12419

9017812009

main90178-12009

9017815003

main90178-15003

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
