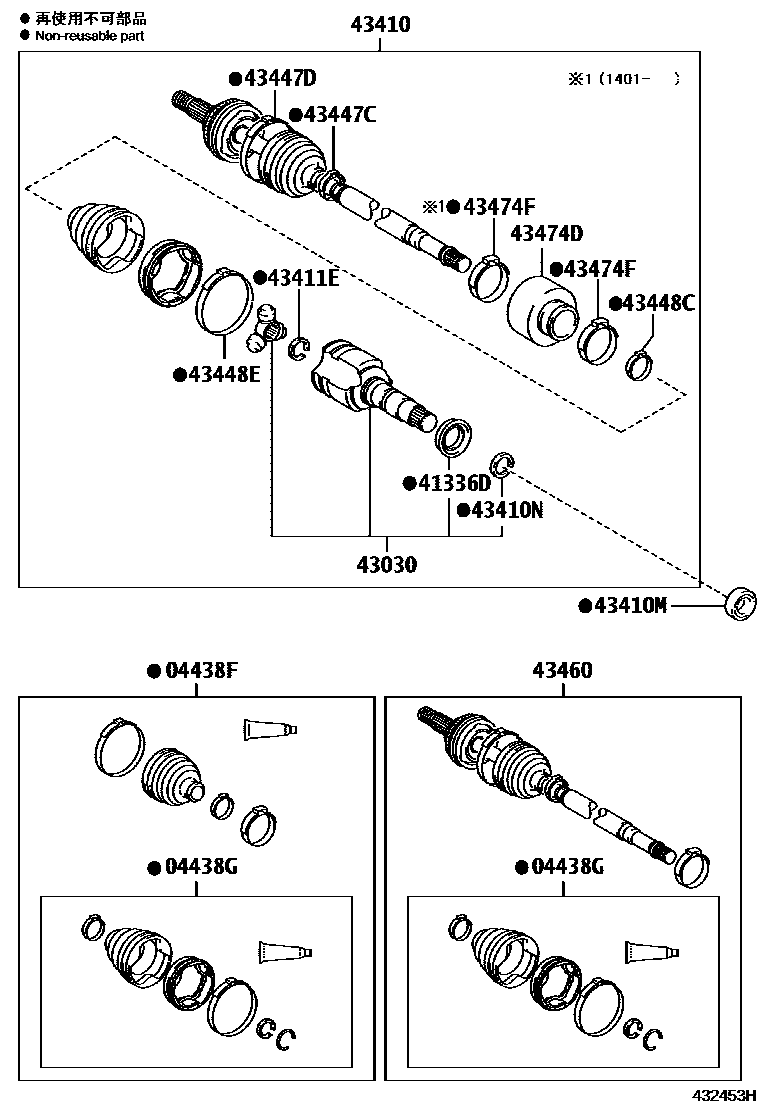

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12771iNLP121¥12,400201411-201504

sub04427-12772¥7,700

main04427-52890iNSP120..6F¥10,800201011-201407

sub04427-52891¥9,000

main04427-52891iNSP120..6F¥9,000201408-201504

sub04427-52897¥9,000

main04428-12740iNLP121¥10,800201011-201411

sub04428-12780¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52191iNSP120¥5,500201011-201504

main04438-12A00iNLP121¥6,700201011-201504

sub04438-12A01¥4,150

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNSP120¥130201011-201504

main41336-12060iNLP121¥200201011-201504

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-12120iNLP121¥16,600201011-201504

main43403-10011iNSP120¥19,500201011-201504

sub43403-0W031¥16,200

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52290iNSP120..6F¥82,800201011-201504

sub43410-52291¥82,800

main43410-52300iNLP121¥82,800201011-201504

main43410-52320iNSP120..CVT¥68,900201011-201504

sub43410-52321¥52,100

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34038iNSP120..CVT¥350201011-201406

sub90311-34047¥350

main90311-34041iNSP120..6F¥350201011-201504

sub90311-34054¥350

main90311-34047iNSP120..CVT¥350201407-201504

main90311-35065iNLP121¥270201011-201504

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNSP120¥100201011-201504

main90521-27005iNLP121¥110201011-201504

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iNLP121¥40201011-201504

main90520-22001iNSP120¥110201011-201504

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iNLP121¥220201011-201504

main42345-52260iNSP120¥220201011-201504

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iNLP121¥340201011-201504

main42345-52250iNSP120¥330201011-201504

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iNLP121¥220201011-201504

main90949-01078iNSP120¥80201011-201504

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iNLP121¥330201011-201504

main90949-01146iNSP120¥350201011-201504

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59416iNSP120..6F¥55,800201011-201407

sub43460-59666¥49,900

main43460-59666iNSP120..6F¥49,900201408-201504

sub43460-59669¥37,800

main43460-59756iNLP121¥56,400201011-201411

sub43460-59757¥56,400

main43460-59757iNLP121¥56,400201411-201504

sub43460-59758¥56,400

main43460-59785iNSP120..CVT¥58,000201011-201411

sub43460-59786¥48,300

main43460-59786iNSP120..CVT¥48,300201411-201504

sub43460-59787¥36,500

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12120iNLP121¥7,500201011-201410

sub43474-12210¥4,640

main43474-12210iNLP121¥4,640201411-201504

main43474-52090iNSP120¥3,940201011-201410

sub43474-52110¥1,520

main43474-52110iNSP120¥1,520201411-201504

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNLP121,NSP120¥700201011-201504

15 parts on this diagram · 5 diagrams in section
