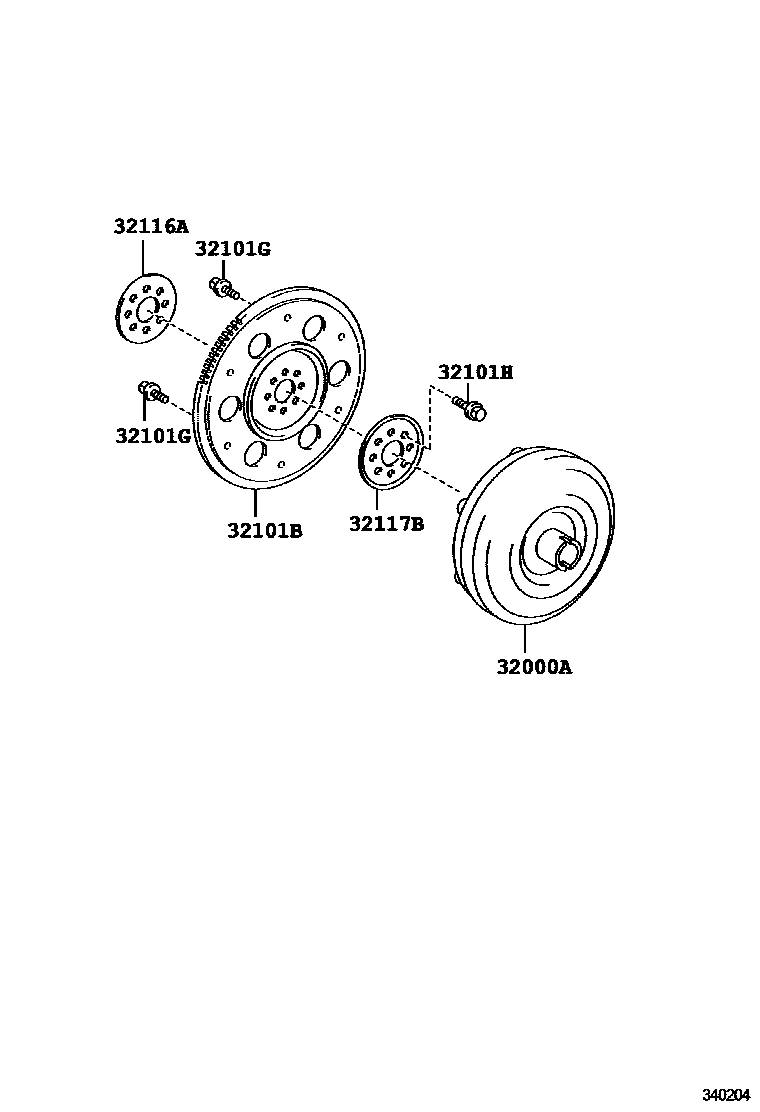

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-52160iNSP120..CVT201011-201504

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-74010iNSP120..CVT201011-201305

sub32111-52110

main32111-52120iNSP120..CVT201305-201504

sub32111-52110

main32111-52100iNSP120..LHD..CVT201405-201504

WITH(STOP & START SYSTEM)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP120..CVT201011-201504

*8-1.25PX12-8.4,BLACK

main90119-08498iNSP120..CVT201011-201504

*8-1.25PX12-8,YELLOW

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNSP120..CVT201011-201504

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP120..CVT201011-201504

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP120..CVT201011-201504

6 parts on this diagram · 1 diagram in section
