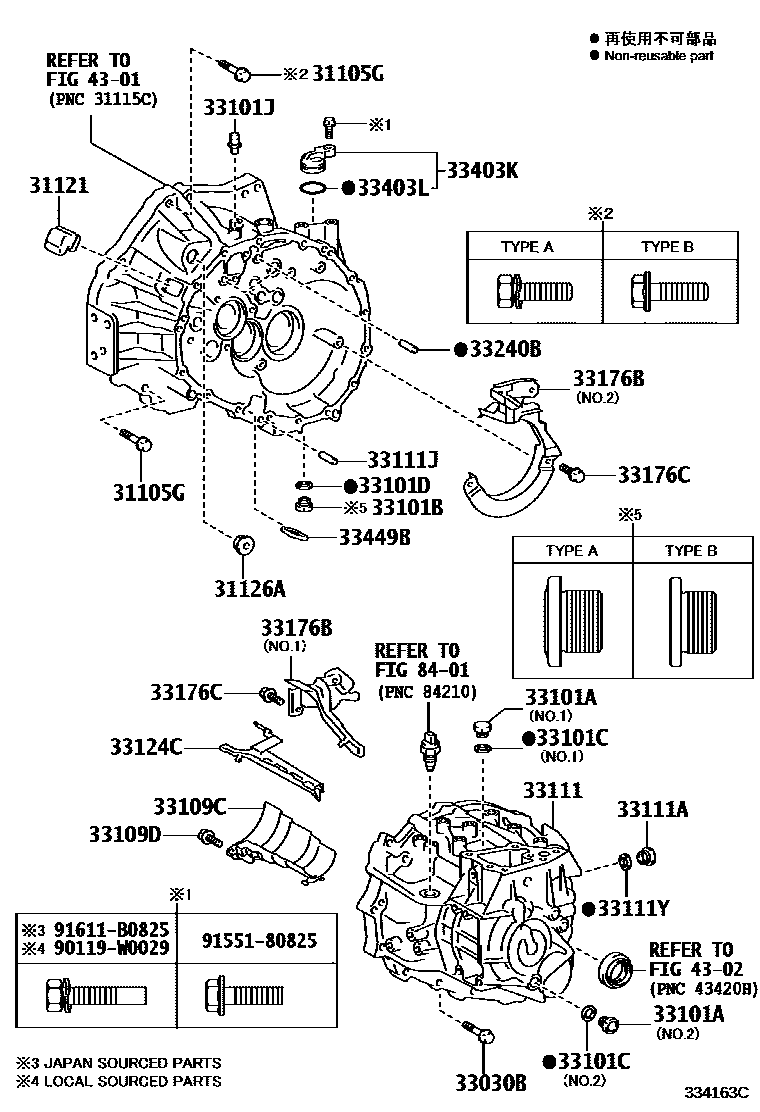

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1EC63 0002 1EC65 0003 1EC65A

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-A0140iNLP121¥100201011-201504

*10-1.25PX45-30,(L),T/P A:REF.ILLUST

main90119-W0097iNSP120..6F¥160201011-201504

*12-1.25PX45-30,TYPE A:REFER ILLUST.

main91552-81045iNLP121¥120201011-201504

*10-1.25PX45-26,TYPE B

main91552-81080iNLP121¥190201011-201504

*10-1.25PX80-26

main91552-81245iNSP120..6F¥190201011-201504

*12-1.25PX45-30,TYPE B:REFER ILLUST.

main91552-81280iNSP120..6F¥240201011-201504

*12-1.25PX80-30

main91612-61045iNLP121¥120201011-201504

*10-1.25PX45-30,(J),T/P A:REF.ILLUST

31121COVER, CLUTCH HOUSING, NO.1

main31121-52020iNLP121,NSP120..MTM¥160201011-201504

31126ABOOT, CLUTCH TUBE

main31126-20090iNLP121,NSP120..MTM¥500201011-201504

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840iNLP121,NSP120..MTM¥80201011-201504

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iNLP121,NSP120..6F¥210201011-201504

NO.1

main90341-18033iNLP121,NSP120..MTM¥190201011-201504

NO.2

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18016iNLP121..6FS¥190201011-201210

TYPE A

main90341-18016iNLP121,NSP120..6F¥190201011-201211

main90341-18023iNLP121,NSP120..6F¥190201211-201504

main90341-18023iNLP121..6FS¥190201210-201405

TYPE B

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iNLP121..6FS¥100201210-201504

NO.2

main90430-14003iNLP121,NSP120..6F¥160201011-201504

NO.1

main90430-18008iNLP121..6FS¥110201011-201211

NO.2

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main12157-10010iNLP121,NSP120..6F¥100201210-201504

main90430-18008iNLP121,NSP120..6F¥110201011-201211

33101JPLUG, BREATHER

main90930-03133iNLP121,NSP120..MTM¥370201011-201504

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-20020iNLP121,NSP120..MTM¥2,210201011-201504

sub33109-52010¥1,840

33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)

main91551-80816iNLP121,NSP120..6F¥80201011-201504

33111CASE, MANUAL TRANSMISSION

main33111-12291iNLP121,NSP120..6F¥36,300201011-201504

sub33111-12292¥30,300

sub33290-12040¥1,240

main33111-52131iNLP121..6FS¥43,700201011-201405

sub33111-12320

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iNLP121,NSP120..6F¥180201011-201504

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNLP121,NSP120..MTM¥120201011-201504

L=23,OD=8

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main12157-10010iNSP120..6F¥100201211-201504

main90430-18008iNLP121,NSP120..6F¥110201011-201211

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20080iNLP121,NSP120..6F¥390201011-201504

main33124-52030iNLP121..6FS¥510201011-201405

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-20080iNLP121,NSP120..MTM¥860201011-201504

NO.1

main33176-20090iNLP121,NSP120..6F¥1,310201011-201504

NO.2

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main91551-80816iNLP121,NSP120..6F¥80201011-201504

33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)

main90250-08054iNLP121,NSP120..MTM¥120201011-201504

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNLP121,NSP120..MTM¥1,180201011-201504

33403LRING, O

main96711-24030iNLP121,NSP120..MTM¥170201011-201504

33449BMAGNET, TRANSMISSION

main33449-20010iNLP121,NSP120..MTM¥450201011-201504

4301

4302

8401

90119W0029

main90119-W0029¥90

9155180825

main91551-80825¥80

91611B0825

main91611-B0825¥160

28 parts on this diagram · 3 diagrams in section
