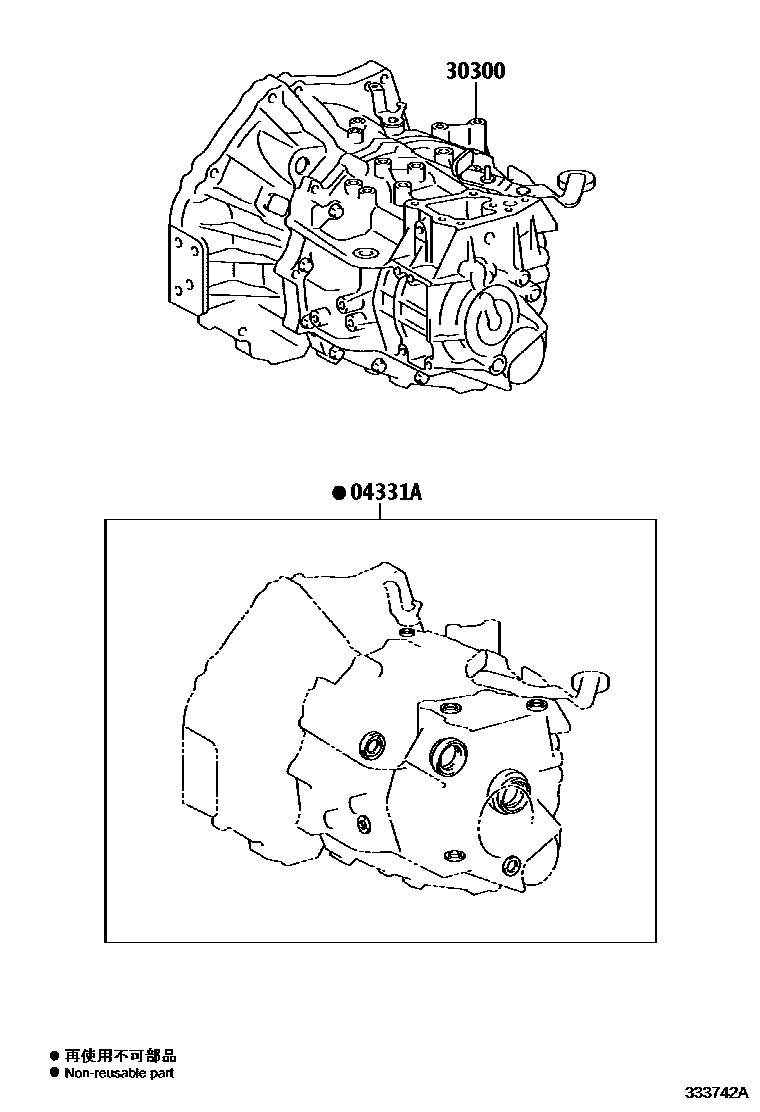

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1EC63,EC65 0002 1EC65A

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-20250iNLP121..6F201011-201211

sub04331-20280

main04331-20252iNLP121201211-201504

sub04331-20270

main04331-52590iNSP120..6F201011-201211

sub04331-52592

main04331-52592iNSP120..6F201211-201504

sub04331-52593

main04331-52610iNLP121..6FS201011-201210

sub04331-52680

main04331-52612iNLP121..6FS201210-201405

sub04331-12830

30300TRANSAXLE ASSY, MANUAL

main30300-52821iNSP120..6F201011-201405

EC63

main30300-52822iNSP120..6F201405-201504

EC63

main30300-52841iNLP121..6F201011-201504

EC65

main30330-52071iNLP121..6FS201011-201108

EC65A

sub30330-52072

main30330-52072iNLP121..6FS201108-201405

EC65A

sub30330-52100

2 parts on this diagram · 2 diagrams in section
