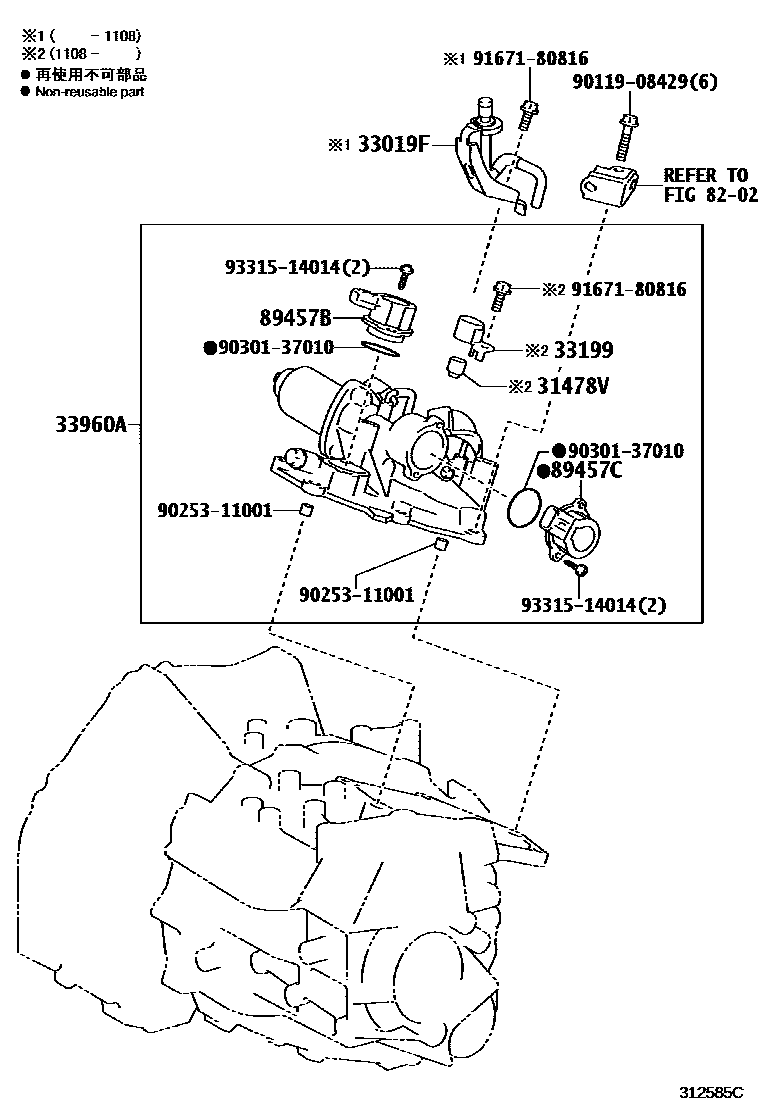

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

31478VCAP, BREATHER PLUG

main31478-30020iNLP121..6FS201108

33019FBREATHER SUB-ASSY, TRANSMISSION

main33019-52012iNLP121..6FS201011-201108

33199PROTECTOR, BREATHER

main33199-12010iNLP121..6FS201108

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-52032iNLP121..6FS201011-201108

sub33960-52034

main33960-52034iNLP121..6FS201108-201209

sub33960-52035

main33960-52035iNLP121..6FS201209

8202

89457BSTROKE SENSOR, SHIFT

main89457-52020iNLP121..6FS201011-201405

89457CSTROKE SENSOR, SELECT

main89457-52020iNLP121..6FS201011-201405

9011908429

main90119-08429

9025311001

main90253-11001

9030137010

main90301-37010

9167180816

main91671-80816

9331514014

main93315-14014

12 parts on this diagram · 1 diagram in section
