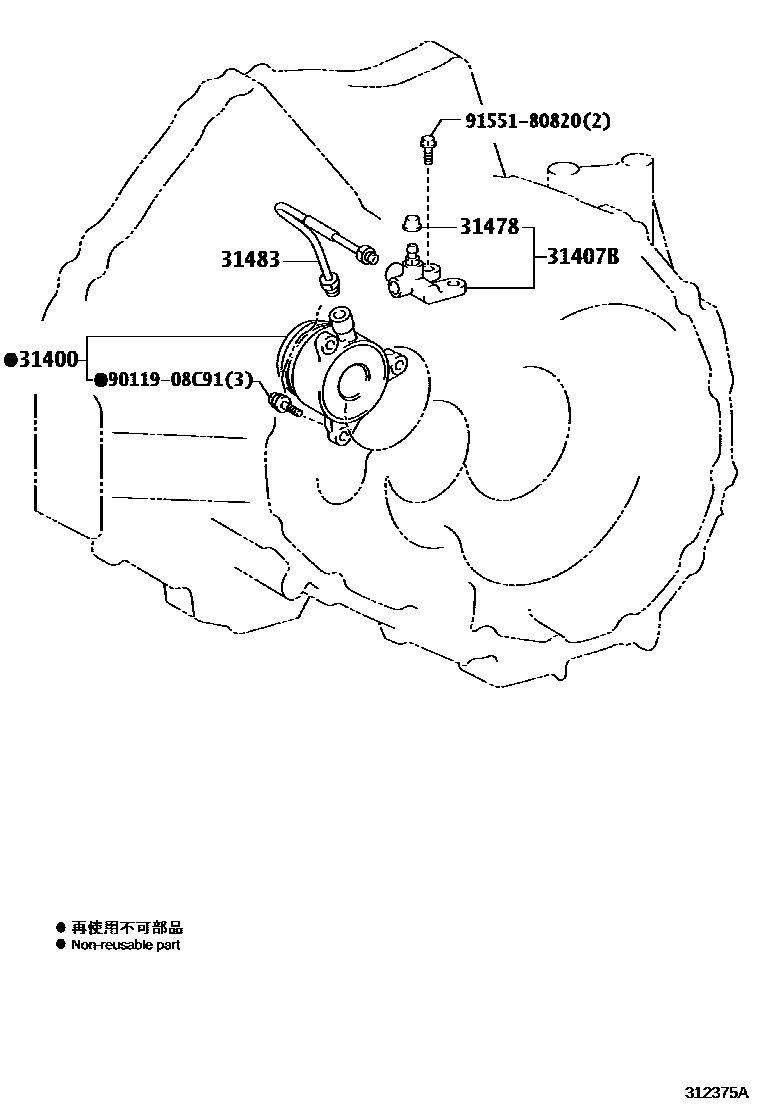

CLUTCH RELEASE CYLINDER

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-59005iNLP121..6FS201011-201405

main31400-59015iNLP121,NSP120..6F201011-201504

sub31400-59025

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-52010iNLP121,NSP120..MTM201011-201504

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNLP121,NSP120..MTM201011-201504

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-52090iNLP121,NSP120..MTM201011-201504

9011908C91

main90119-08C91

9155180820

main91551-80820

6 parts on this diagram · 1 diagram in section
