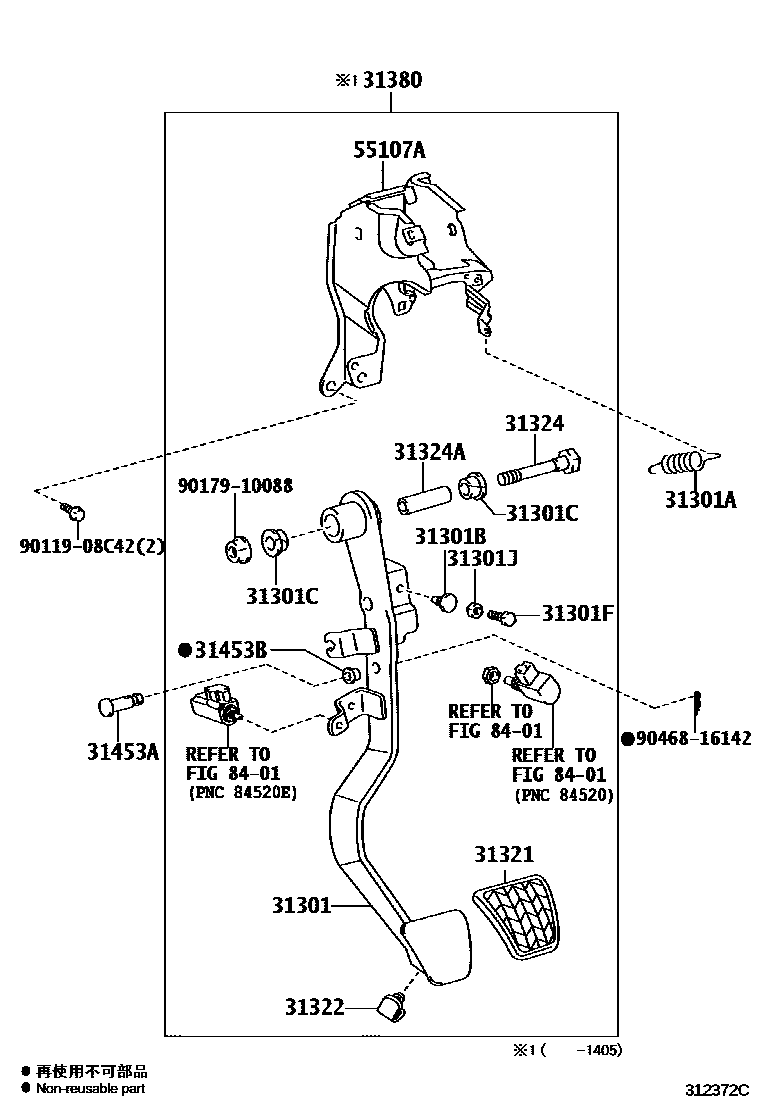

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52150iNSP120..RHD..6F201011-201504

main31311-52050iNLP121,NSP120..LHD..6F201011-201504

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNSP120..LHD..6F201011-201504

main90507-14055iNSP120..RHD..6F201011-201504

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNLP121,NSP120..6F201011-201504

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNLP121,NSP120..6F201011-201504

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91112-61025iNSP120..RHD..6F201011-201504

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNSP120..RHD..6F201011-201504

31321PAD, CLUTCH PEDAL

main31321-52010iNLP121,NSP120..6F201011-201501

main31321-52020iNLP121,NSP120..6F201502-201504

31322STOPPER, CLUTCH PEDAL

main31322-52010iNSP120..RHD..6F201011-201504

31324SHAFT, CLUTCH PEDAL

main90105-10444iNSP120..RHD..6F201011-201504

main90105-10563iNLP121,NSP120..LHD..6F201011-201504

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNSP120..RHD..6F201011-201504

main90387-10004iNLP121,NSP120..LHD..6F201011-201504

31380SUPPORT ASSY, PEDAL

main31380-52340iNSP120..RHD..6F201011-201405

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNSP120..RHD..6F201011-201504

L=31.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNSP120..RHD..6F201011-201504

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52210iNSP120..LHD..6F201011-201504

main55107-52230iNLP121..6F201011-201504

main55107-52240iNSP120..RHD..6F201011-201504

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9046816142

main90468-16142

18 parts on this diagram · 6 diagrams in section
