CLUTCH & RELEASE FORK

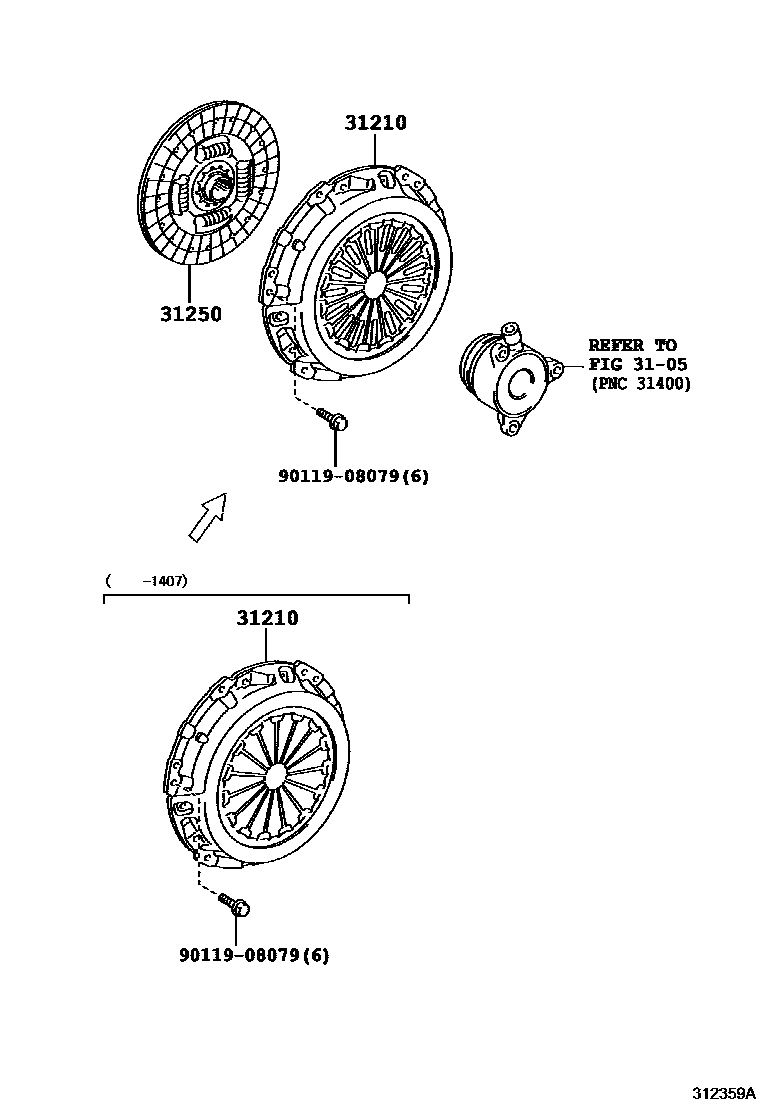

Parts diagram
3105
31210COVER ASSY, CLUTCH
main31210-12350i201212-201405
main31210-52100i201011-201504
main31210-52110i201011-201212
main31210-52130i201011-201407
main31210-52170i201407-201504
31250DISC ASSY, CLUTCH
main31250-12620i201212-201405
sub31250-12621
main31250-52150i201011-201103
sub31250-52151
main31250-52151i201104-201212
sub31250-52152
main31250-52210i201011-201504
sub31250-52211
main31250-52220i201011-201307
sub31250-52250
main31250-52250i201307-201504
sub31250-52251
9011908079
main90119-08079

4 parts on this diagram · 1 diagram in section
