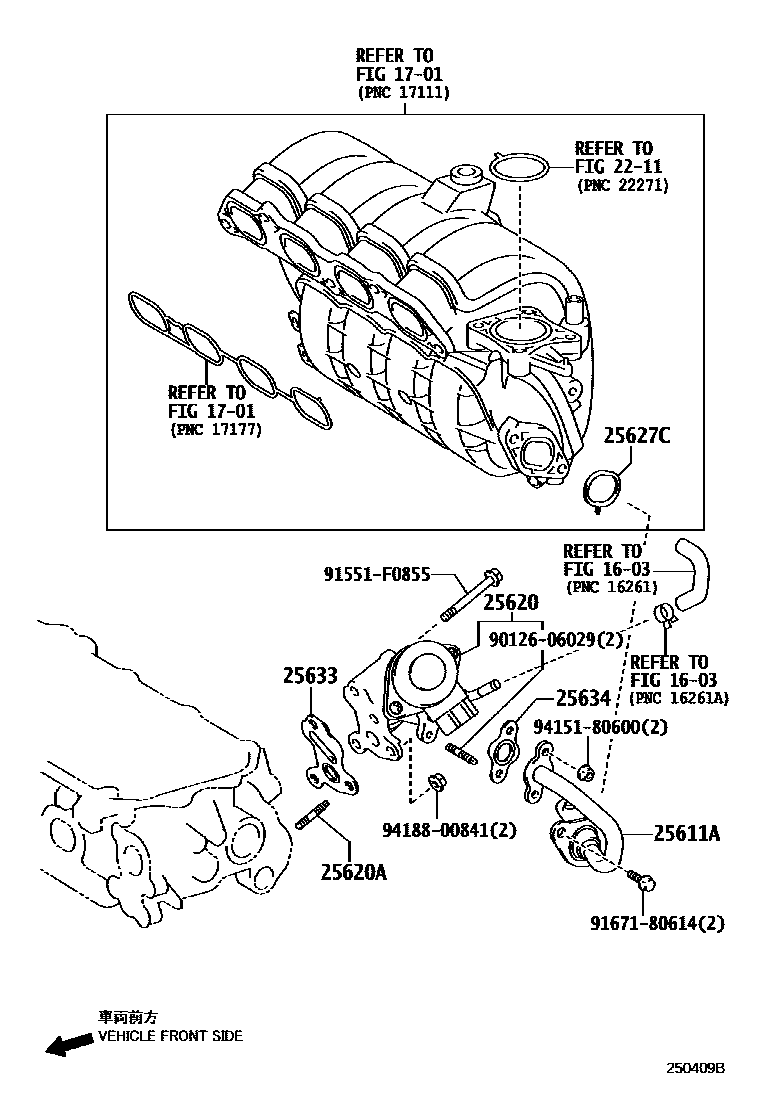

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

2211

25611CONNECTOR, EGR PIPE

main25611-33020i1NDTV..NLP121201011-201504

25611APIPE, EGR, NO.1

main25611-47011i1NRFE..NSP120201011-201504

25620VALVE ASSY, EGR

main25620-47020i1NRFE..NSP120201011-201504

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08063i1NRFE..NSP120201011-201504

25627GASKET, EGR VALVE

main25627-33010i1NDTV..NLP121201011-201504

25627CGASKET(FOR EGR PIPE NO.2)

main25629-47010i1NRFE..NSP120201011-201504

25633GASKET, EGR VALVE

main25633-47010i1NRFE..NSP120201011-201504

25634GASKET, EGR PIPE

main25634-33010i1NDTV..NLP121201011-201504

main25634-47010i1NRFE..NSP120201011-201504

9012606029

main90126-06029

91551F0855

main91551-F0855

9167180614

main91671-80614

9415180600

main94151-80600

9418800841

main94188-00841

16 parts on this diagram · 2 diagrams in section
