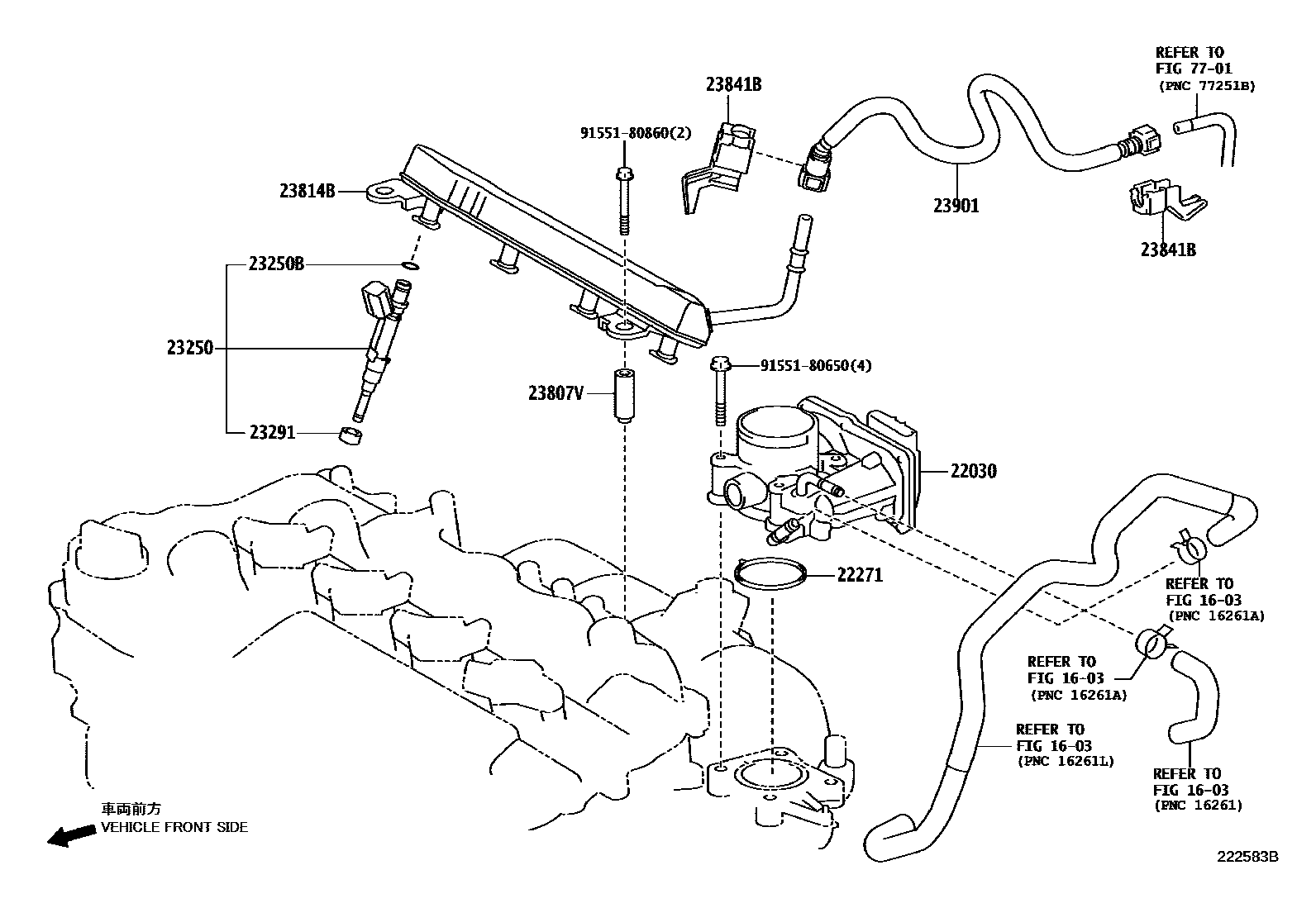

FUEL INJECTION SYSTEM

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47010i1NRFE..NSP120201011-201405

22271GASKET, THROTTLE BODY

main22271-47010i1NRFE..NSP120201011-201405

23250INJECTOR ASSY, FUEL

main23209-49205×4i1NRFE..NSP120201011-201405

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042×4i1NRFE..NSP120201011-201405

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NRFE..NSP120201011-201405

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47010×2i1NRFE..NSP120201011-201302

main23891-47030×2i1NRFE..NSP120201302-201405

23814BPIPE, FUEL DELIVERY

main23814-47020i1NRFE..NSP120201011-201405

main23814-47050i1NRFE..NSP120201407-201504

sub23814-47051

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050×2i1NRFE..NSP120201011-201405

23901TUBE SUB-ASSY, FUEL

main23901-47040i1NRFE..NSP120201011-201405

7701

9155180650

main91551-80650

9155180860

main91551-80860

13 parts on this diagram · 1 diagram in section
