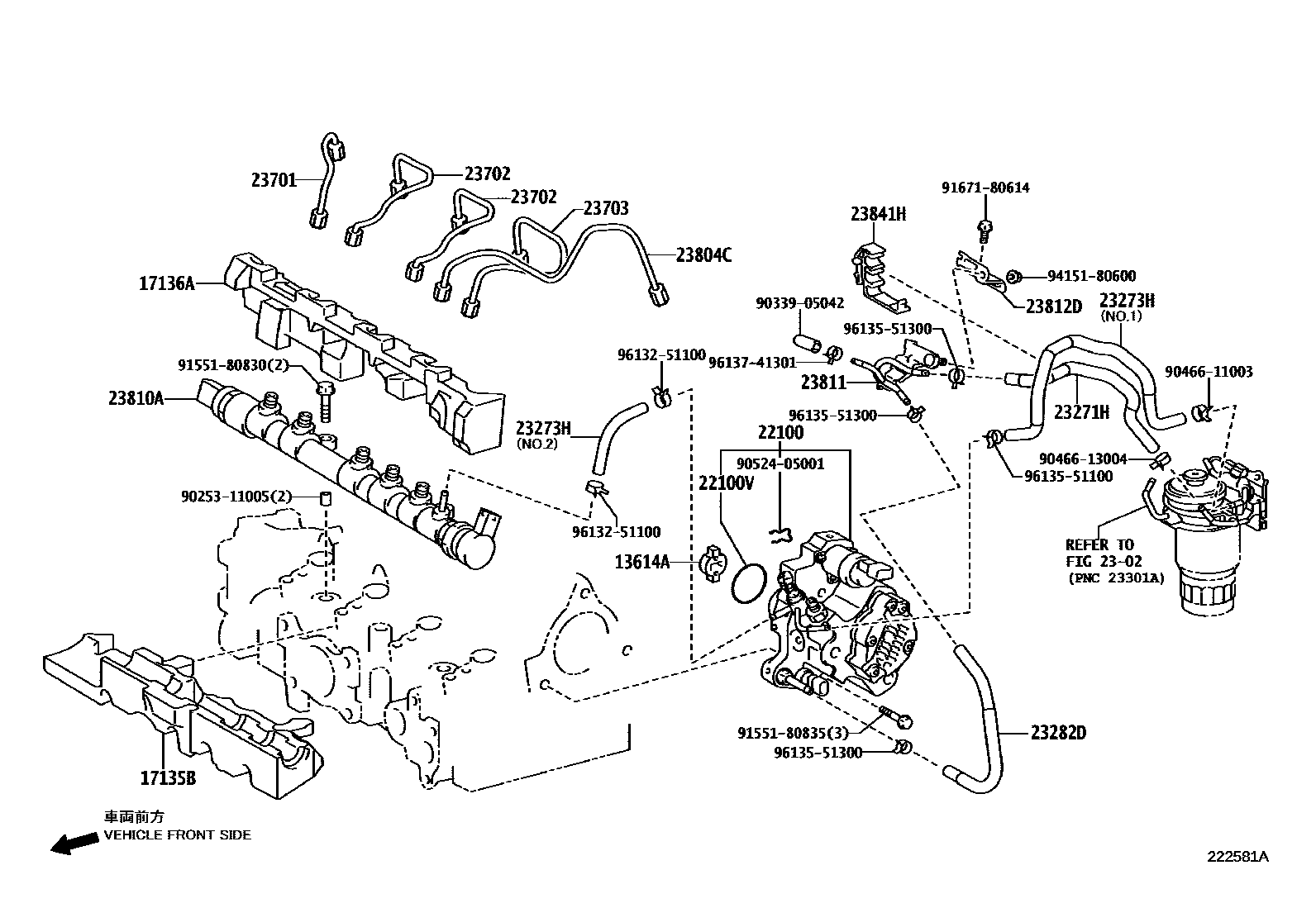

INJECTION PUMP ASSEMBLY

13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1

main13614-33010i1NDTV..NLP121201011-201405

17135BINSULATOR, INTAKE MANIFOLD, NO.1

main17135-33011i1NDTV..NLP121201011-201405

sub17135-33012

17136AINSULATOR, INTAKE MANIFOLD, NO.2

main17136-33010i1NDTV..NLP121201011-201405

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0W010i1NDTV..NLP121201405-201504

main22100-33050i1NDTV..NLP121201011-201112

(J)

22100VRING, O(FOR INJECTION PUMP)

main96723-35044i1NDTV..NLP121201011-201405

2302

23271HHOSE, FUEL, NO.1

main23271-33070i1NDTV..NLP121201405-201504

23273HHOSE, FUEL, NO.2

main23273-33090i1NDTV..NLP121201011-201405

NO.2

main23273-33100i1NDTV..NLP121201011-201405

NO.1

23282DHOSE, FUEL, NO.4

main23282-33020i1NDTV..NLP121201011-201405

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-33040i1NDTV..NLP121201011-201405

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-33010×2i1NDTV..NLP121201011-201405

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-33010i1NDTV..NLP121201011-201405

23804CPIPE SUB-ASSY, FUEL INLET

main23804-33020i1NDTV..NLP121201011-201405

23810ARAIL ASSY, COMMON

main23810-33030i1NDTV..NLP121201011-201405

sub23810-33031

sub17135-33012

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-33090i1NDTV..NLP121201011-201405

23812DPIPE, FUEL, NO.2

main23812-33020i1NDTV..NLP121201011-201405

23841HCLAMP, FUEL HOSE

main23841-33010i1NDTV..NLP121201011-201405

9025311005

main90253-11005

9033905042

main90339-05042

9046611003

main90466-11003

9046613004

main90466-13004

9052405001

main90524-05001

9155180830

main91551-80830

9155180835

main91551-80835

9167180614

main91671-80614

9415180600

main94151-80600

9613251100

main96132-51100

9613551100

main96135-51100

9613551300

main96135-51300

9613741301

main96137-41301

30 parts on this diagram · 1 diagram in section
