STARTER

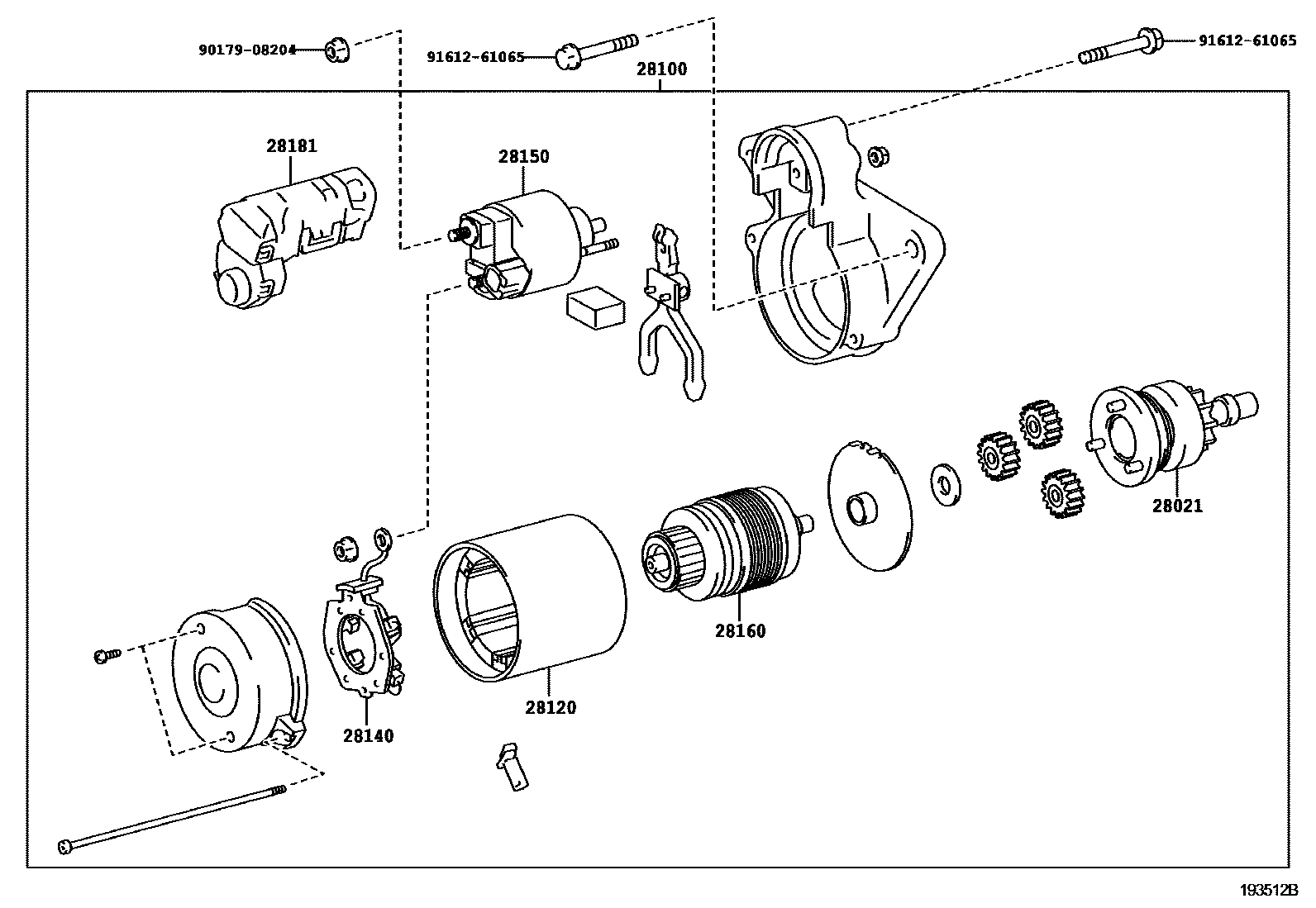

Parts diagram
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
main28021-33090i201405-201504
main28021-21060i201405-201504
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28021-33100i201011-201405
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28021-47110i201011-201405
WITH(STOP & START SYSTEM)
28100STARTER ASSY
main28100-47170i201011-201407
12V 1.0KW
sub28100-47171
main28100-47171i201408-201504
12V 1.0KW
main28100-33120i201011-201405
12V 2.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)
sub28100-33121
main28100-33150i201405-201407
12V 2.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)
sub28100-33151
main28100-33151i201408-201504
12V 2.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28100-47180i201011-201405
12V 1.2KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)
sub28100-47181
main28100-47190i201011-201405
12V 1.6KW,WITH(STOP & START SYSTEM)
main28100-47240i201405-201504
12V 1.3KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)
28120YOKE ASSY, STARTER
main28120-28080i201405-201504
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28120-33150i201405-201504
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28120-38020i201011-201405
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28120-47110i201405-201504
WITH(STOP & START SYSTEM)
28140HOLDER ASSY, STARTER BRUSH
main28140-21070i201011-201504
main28140-37050i201011-201405
main28140-38070i201405-201504
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28140-47110i201405-201504
WITH(STOP & START SYSTEM)
28150SWITCH ASSY, MAGNET STARTER
main28150-37020i201011-201504
28160ARMATURE ASSY, STARTER
main28160-21070i201011-201504
main28160-0N110i201405-201408
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28160-21060i201405-201504
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28160-21080i201011-201405
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28160-26180i201408-201504
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28160-38020i201011-201405
COLD SPEC & WITHOUT(REAR HEATER DUCT)
main28180-47110i201011-201405
WITH(STOP & START SYSTEM)
28181TERMINAL, STARTER
main28181-33010i201011-201504
9017908204
main90179-08204
9161261065
main91612-61065

9 parts on this diagram · 6 diagrams in section
