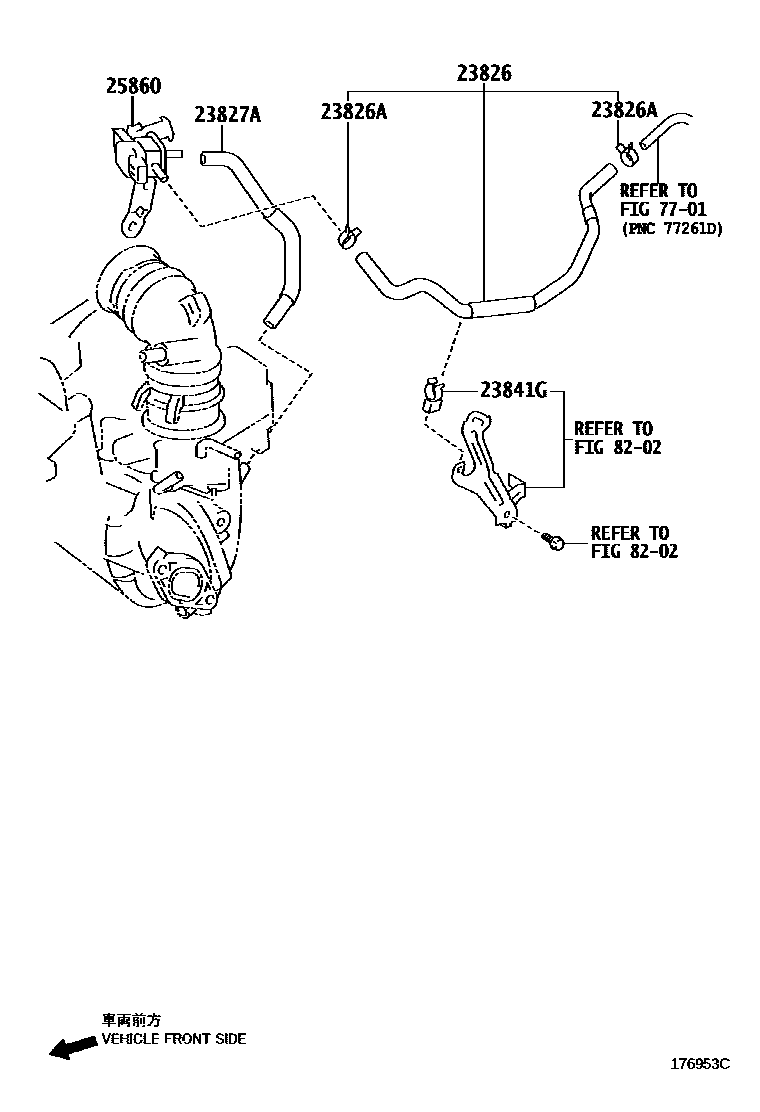

VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-47030i1NRFE..NSP120201011-201405

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1NRFE..NSP120201011-201405

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-47030i1NRFE..NSP120201011-201405

23841GCLAMP, FUEL HOSE

main23847-47010i1NRFE..NSP120201011-201405

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30070i1NDTV..NLP121201011-201405

main25860-47020i1NRFE..NSP120201011-201405

7701

8202

7 parts on this diagram · 2 diagrams in section
