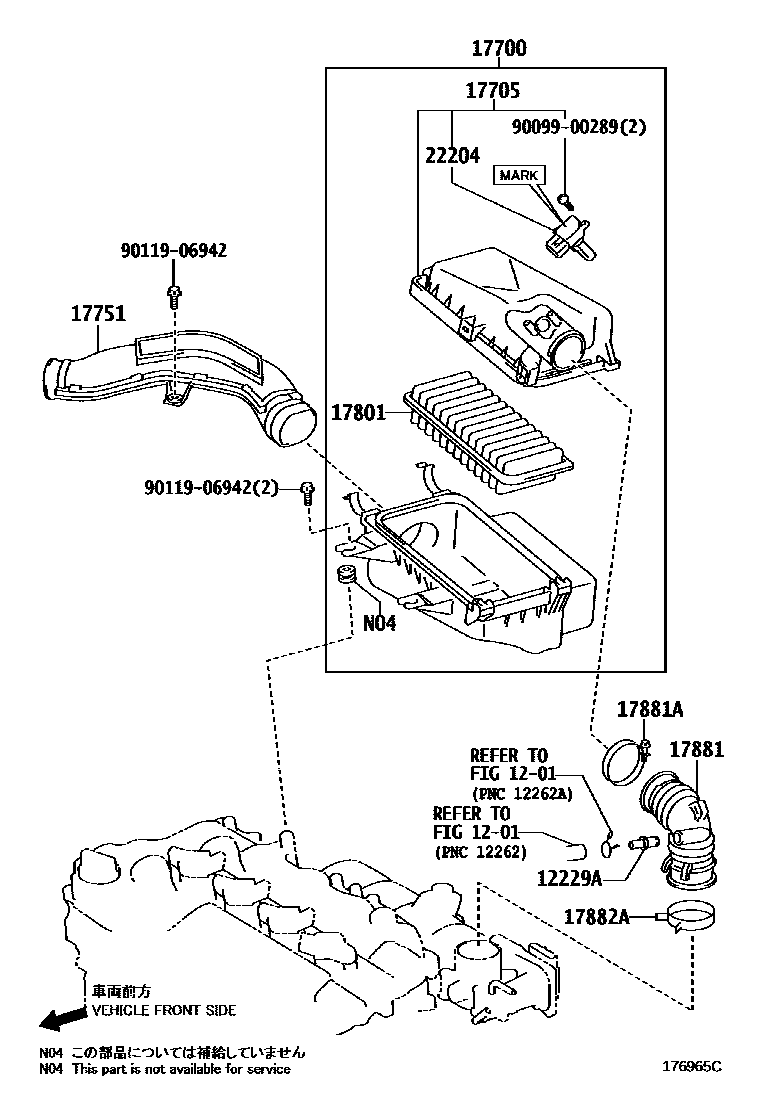

AIR CLEANER

0001 1 0002 1 0003 1

1201

12229APIPE, VENTILATION

main12229-21010i1NRFE..NSP120201011-201504

main12229-33010i1NDTV..NLP121201011-201504

17700CLEANER ASSY, AIR

main17700-47150i1NRFE..NSP120201011-201103

sub17700-47151

main17700-47151i1NRFE..NSP120201104-201504

17705CAP SUB-ASSY, AIR CLEANER

main17705-0N050i1NDTV..NLP121201011-201504

main17705-47101i1NRFE..NSP120201011-201103

sub17705-47102

main17705-47102i1NRFE..NSP120201104-201504

17751INLET, AIR CLEANER, NO.1

main17751-0N032i1NDTV..NLP121201011-201504

main17751-47060i1NRFE..NSP120201011-201504

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0N040i1NDTV..NLP121201011-201504

main17801-21030i1NRFE..NSP120201011-201504

17881HOSE, AIR CLEANER, NO.1

main17880-33070i1NDTV..NLP121201011-201504

main17881-47060i1NRFE..NSP120201011-201504

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i1NRFE..NSP120201011-201504

main96111-10750i1NDTV..NLP121201011-201504

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-54002i1NDTV..NLP121201011-201504

main90466-62002i1NRFE..NSP120201011-201504

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1NRFE..NSP120201104-201504

MARK 22204-0T040

sub22204-28010

main22204-0V010i1NRFE..NSP120201104-201504

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1NRFE..NSP120201104-201504

MARK 22204-0V020

main22204-26010i1NDTV..NLP121201011-201504

main22204-28010i1NRFE..NSP120201104-201504

MARK 22204-28010

main22204-37010i1NRFE..NSP120201011-201103

sub22204-28010

9009900289

main90099-00289

9011906942

main90119-06942

12 parts on this diagram · 3 diagrams in section
