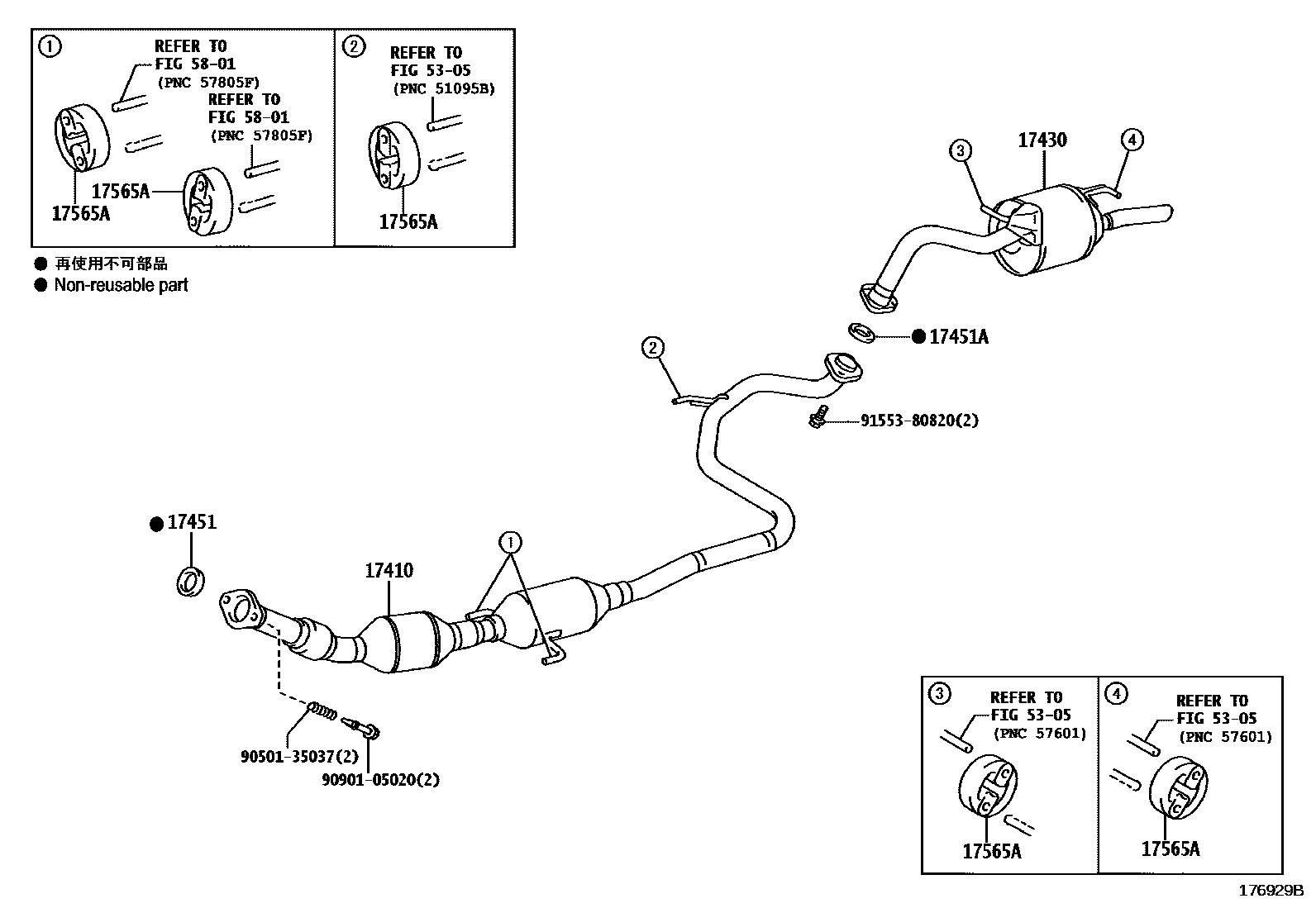

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-33190i1NDTV..NLP121201011-201504

*114=TOYOTA/GW6/Y

main17410-47130i1NRFE..NSP120201011-201504

*114=TOYOTA/CE9/Y

17430PIPE ASSY, EXHAUST, TAIL

main17430-33170i1NDTV..NLP121201011-201504

main17430-47080i1NRFE..NSP120201011-201504

17451GASKET, EXHAUST PIPE

main17451-21070i1NRFE..NSP120201011-201504

main17451-28040i1NDTV..NLP121201011-201504

sub17451-28041

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06039i1N#..NLP121,NSP120201011-201504

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010i1NDTV..NLP121201011-201504

5305

5801

9050135037

main90501-35037

9090105020

main90901-05020

9155380820

main91553-80820

10 parts on this diagram · 2 diagrams in section
