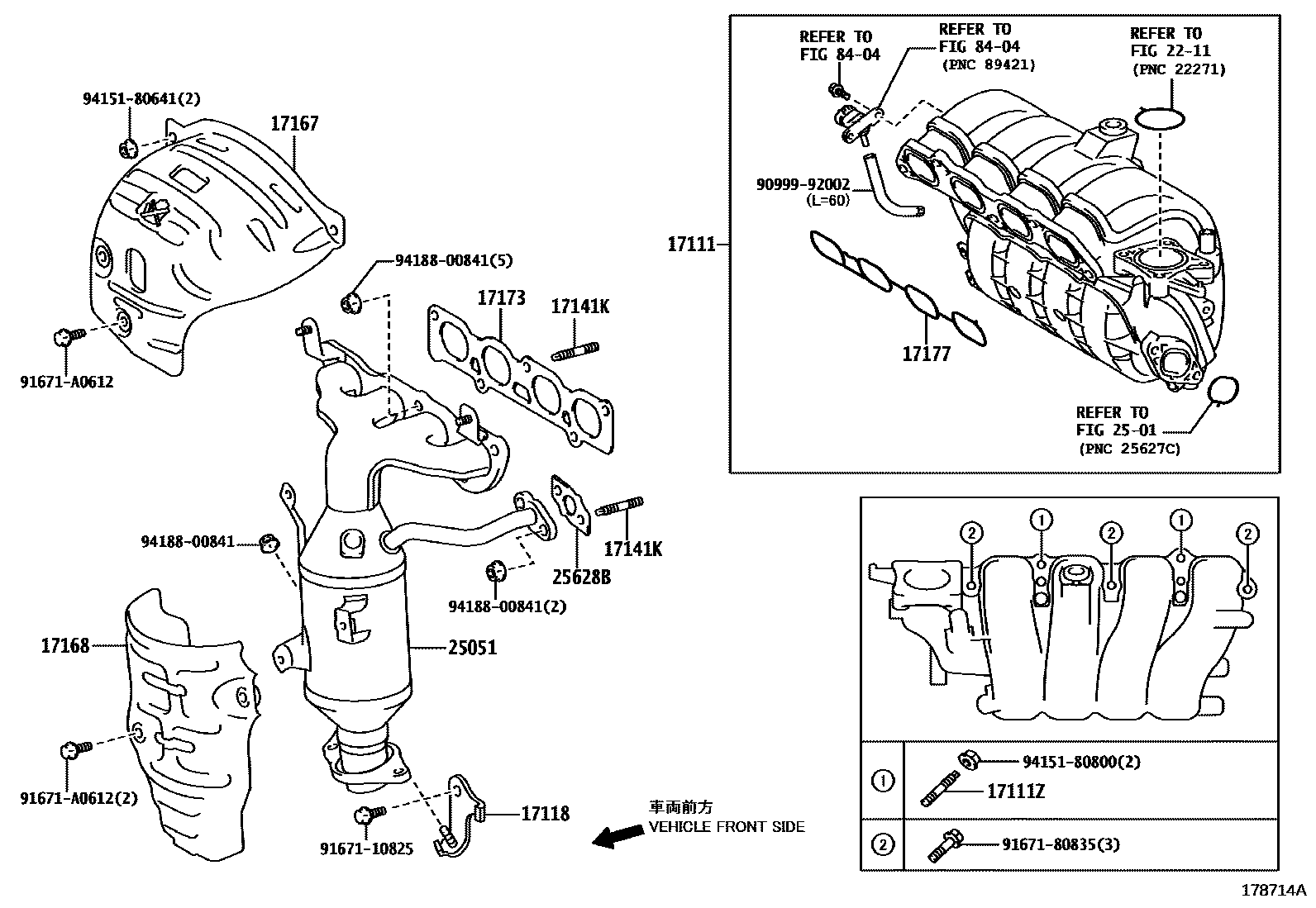

MANIFOLD

0001 1 0002 1

17111MANIFOLD, INTAKE

main17120-47031i1NRFE..NSP120201011-201111

sub17120-47032

main17120-47032i1NRFE..NSP120201111-201504

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08060i1NRFE..NSP120201011-201504

17118STAY, MANIFOLD

main17118-33040i1NDTV..NLP121201011-201504

main17118-47010i1NRFE..NSP120201011-201504

sub17118-47011

17141MANIFOLD, EXHAUST

main17141-33050i1NDTV..NLP121201011-201502

sub17141-33051

main17141-33080i1NDTV..NLP121201502-201504

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063i1NRFE..NSP120201011-201504

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-47011i1NRFE..NSP120201011-201504

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-47030i1NRFE..NSP120201011-201504

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-33030i1NDTV..NLP121201011-201406

sub17173-33031

main17173-33031i1NDTV..NLP121201407-201504

main17173-47021i1NRFE..NSP120201011-201504

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-47010i1NRFE..NSP120201011-201111

sub17177-47011

main17177-47011i1NRFE..NSP120201111-201504

2211

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-33090i1NDTV..NLP121201011-201504

*114=*407

main25051-47070i1NRFE..NSP120201011-201504

*114=TOYOTA/47070/Y

25628BGASKET, EGR INLET

main25628-47010i1NRFE..NSP120201011-201504

8404

9099992002

main90999-92002

9167110825

main91671-10825

9167180835

main91671-80835

91671A0612

main91671-A0612

9415180641

main94151-80641

9415180800

main94151-80800

9418800841

main94188-00841

21 parts on this diagram · 2 diagrams in section
