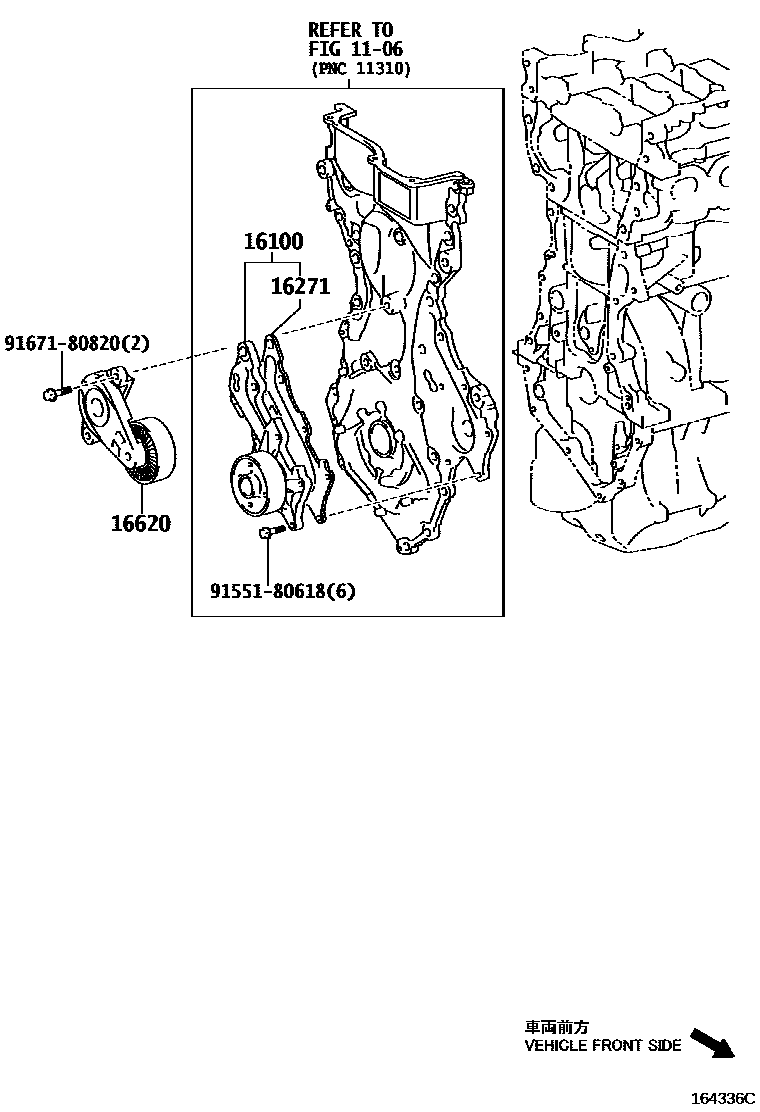

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09610i1NDTV..NLP121201408-201504

main16100-39525i1NDTV..NLP121¥9,000201011-201407

sub16100-39526¥9,000

main16100-80004i1NRFE..NSP120¥8,700201011-201308

sub16100-80010¥7,900

sub91552-81050¥120

main16100-80010i1NRFE..NSP120¥7,900201308-201504

sub16100-80019¥7,900

16271GASKET, WATER PUMP

main16271-33030i1NDTV..NLP121¥650201011-201504

main16271-47031i1NRFE..NSP120¥490201011-201504

16620TENSIONER ASSY, V-RIBBED BELT

main16620-33040i1NDTV..NLP121¥16,100201011-201411

sub16620-33041¥16,100

main16620-33041i1NDTV..NLP121¥16,100201412-201504

sub16620-0N010¥13,400

main16620-47030i1NRFE..NSP120¥13,500201011-201504

sub16620-47031¥10,100

9155180618

main91551-80618¥60

9167180820

main91671-80820¥80

6 parts on this diagram · 2 diagrams in section
