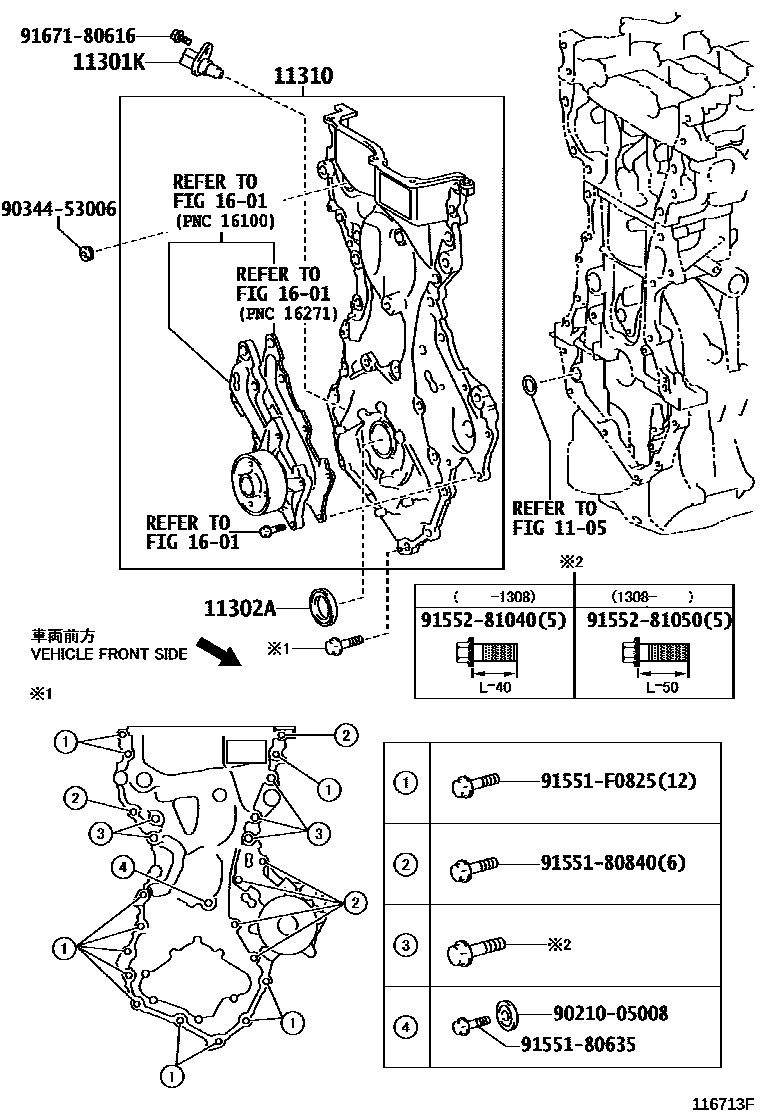

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105

11301KSENSOR, CRANK POSITION

main90919-05073i1NRFE..NSP120201011-201504

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25021i1NRFE..NSP120201104-201303

sub90311-25032

main90311-25031i1NRFE..NSP120201011-201104

main90311-25032i1NRFE..NSP120201303-201504

main90311-40033i1NDTV..NLP121201011-201301

sub90311-40040

main90311-40040i1NDTV..NLP121201301-201504

11310COVER ASSY, TIMING CHAIN

main11310-0N020i1NDTV..NLP121201408-201411

sub11310-0N021

sub13559-33021

main11310-0N021i1NDTV..NLP121201411-201504

main11310-33030i1NDTV..NLP121201011-201408

main11310-47040i1NRFE..NSP120201011-201308

sub11310-47041

sub91552-81050

sub91671-10825

main11310-47041i1NRFE..NSP120201308-201406

sub11310-47042

main11310-47042i1NRFE..NSP120201407-201504

sub11310-47043

1601

9021005008

main90210-05008

9034453006

main90344-53006

9155180635

main91551-80635

9155180840

main91551-80840

91551F0825

main91551-F0825

9155281040

main91552-81040

9155281050

main91552-81050

9167180616

main91671-80616

13 parts on this diagram · 2 diagrams in section
