STANDARD TOOL

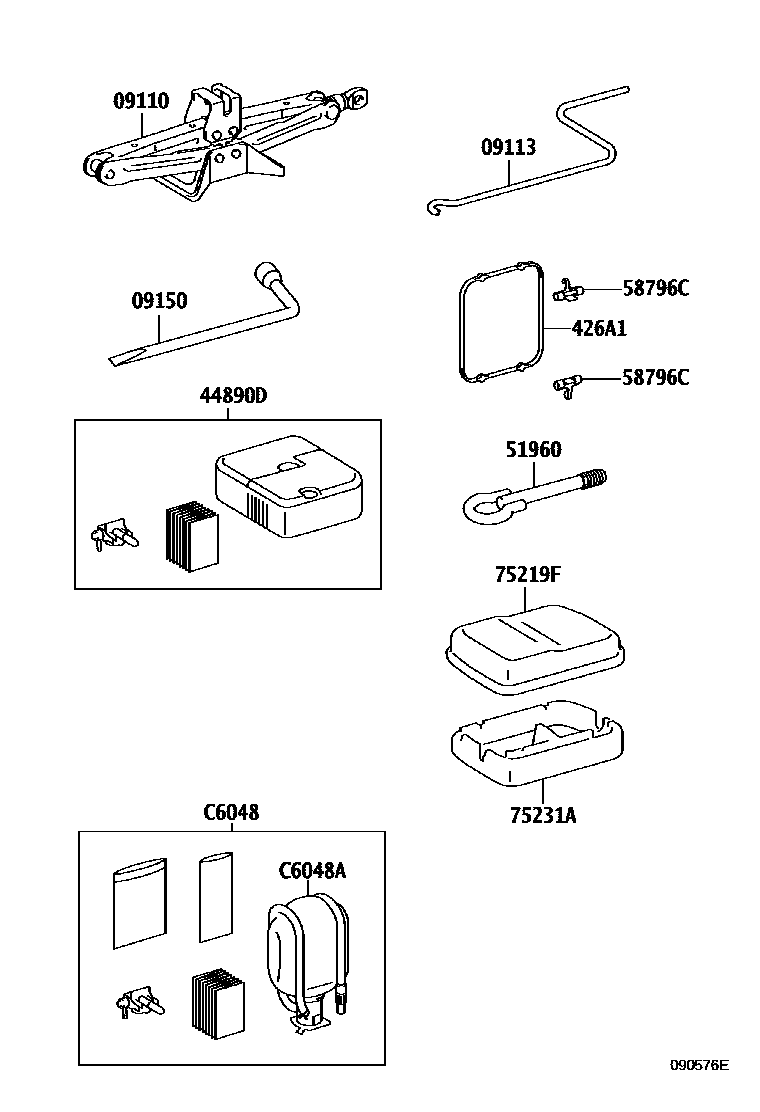

Parts diagram

09110JACK ASSY

main09111-12230i201108-201504

main09111-52060i201011-201107

09113HANDLE, JACK

main09113-20050i201110-201504

main09113-52040i201011-201109

09150WRENCH, HUB NUT BOX

main09150-40010i201011-201504

426A1BAND, TIRE REPAIR KIT

main426A1-52010i201011-201504

44890DCOMPRESSOR ASSY, AIR

main44890-52020i201011-201204

main44890-52021i201205-201504

51960HOOK ASSY, FRONT

main51960-47020i201011-201504

58796CHOOK, JACK CLAMP

main58796-33030i201011-201504

75219FCOVER, TOOL BOX

main75219-52010-C0i201011-201405

BLACK,TRIM1#,2#,4#

main75219-52010-C0i201011-201504

BLACK,TRIM2#

main75219-52010-C0i201405-201504

BLACK,TRIM2#,4#

75231ABOX, TOOL BAG

main75231-52010i201011-201504

C6048REPAIR SET, TIRE

main42683-47040i201502-201504

SPARE TIRE-T135/70 D16

main42683-47040i201502-201504

SPARE TIRE-T135/70 D16 TEMPORARY

main42683-52021i201011-201502

SPARE TIRE-T135/70 D16 TEMPORARY

main42683-52021i201011-201502

SPARE TIRE-T135/70 D16

C6048ASEALANT, REPAIR TIRE

mainC604847070i201502-201504

mainC604852020i201011-201204

mainC604852021i201205-201502

11 parts on this diagram · 1 diagram in section
