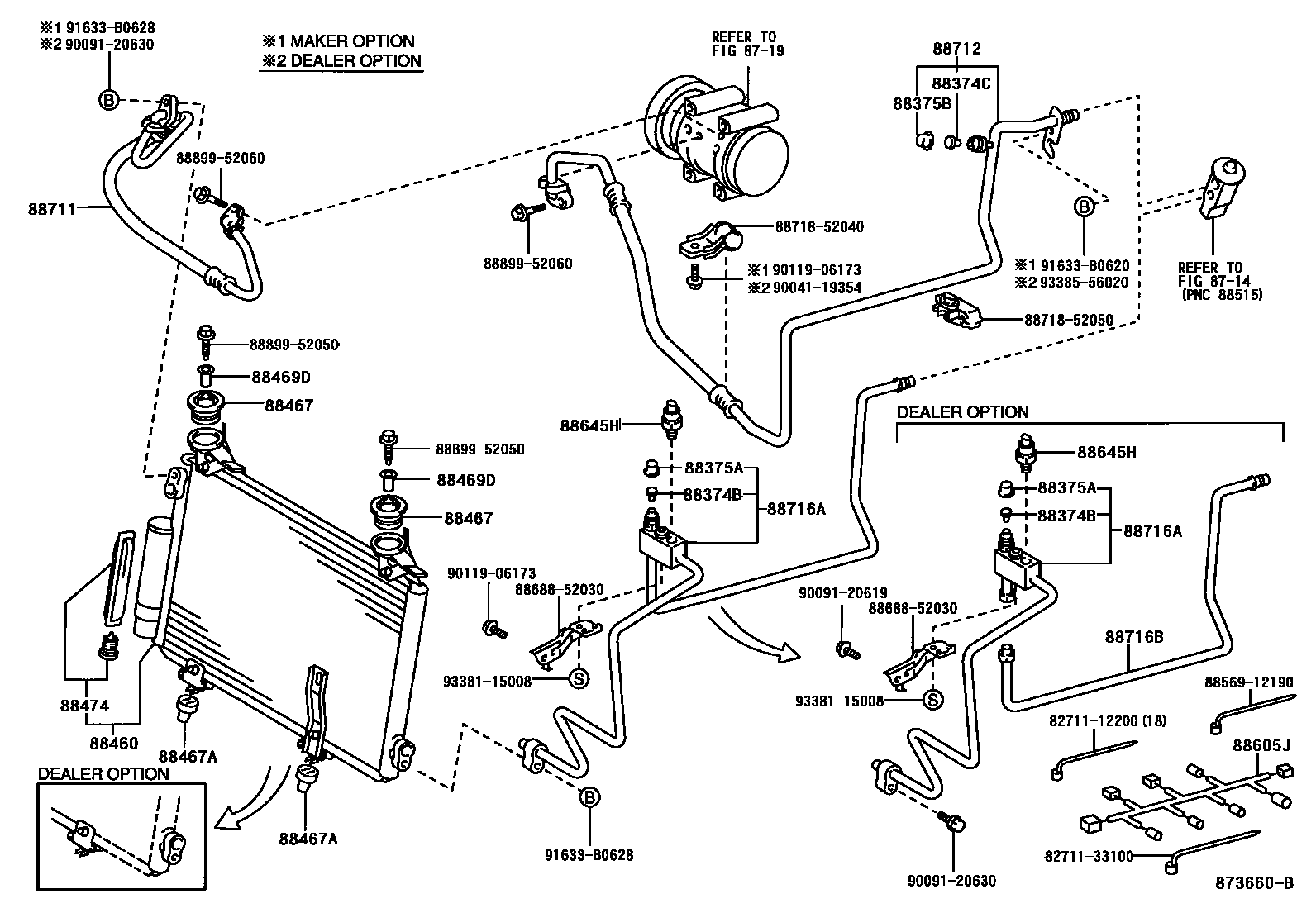

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP2#,NLP2#199908-200211

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP2#,NLP2#199908-200211

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iNCP2#,NLP2#199908-200211

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNCP2#,NLP2#199908-200211

88460CONDENSER ASSY, COOLER

main88460-52010iNLP2#..RHD¥48,700200110-200211

main88460-52010iNCP2#..RHD¥48,700199908-200211

DEALER OPTION

main88460-52020iNCP2#,NLP2#..LHD¥48,700199908-200211

main88460-52050iNCP2#..RHD¥48,500199912-200101

MAKER OPTION

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iNLP2#..LHD¥0200211-200509

main88467-52010iNCP2#,NLP2#199908-200509

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-52020iNCP2#,NLP2#..LHD¥0199908-200509

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iNCP2#,NLP2#¥0199908-200509

88474DRYER, COOLER

main88474-17010iNCP2#,NLP2#..LHD200211-200509

main88474-17010iNCP2#,NLP2#200202-200211

MAKER OPTION

main88474-47010iNCP2#,NLP2#200202-200211

DEALER OPTION

main88474-47010iNCP2#,NLP2#199908-200202

88605JHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-52110iNCP2#..RHD199908-200008

main88605-52120iNCP2#..LHD199908-200008

88645HSWITCH, PRESSURE NO.1

main88645-60030iNCP2#,NLP2#199908-200211

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-52080iNLP2#¥16,700200211-200509

DEALER OPTION

sub88711-52170¥12,200

sub88718-52170

sub90099-00259¥0

main88711-52020iNCP2#¥13,300199908-200008

sub88711-52021¥13,300

main88711-52020iNCP2#..RHD¥13,300200008-200211

DEALER OPTION

sub88711-52021¥13,300

main88711-52021iNCP2#¥13,300200211-200509

main88711-52021iNCP2#..LHD¥13,300200008-200211

MAKER OPTION

main88711-52050iNLP2#¥13,200200110-200301

MAKER OPTION

sub88703-52030¥13,900

main88711-52140iNLP2#¥12,200200301-200305

sub88711-52170¥12,200

main88711-52140iNLP2#..LHD¥12,200200211-200212

W(BOOST VENTILATER)

sub88711-52170¥12,200

main88711-52170iNLP2#¥12,200200305-200509

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-52060iNCP2#..LHD¥22,700200211-200509

main88712-52030iNCP2#..RHD¥30,800199908-200509

main88712-52050iNCP2#..LHD¥22,300199908-200211

main88712-52090iNLP2#..RHD¥29,100200110-200509

main88712-52100iNLP2#..LHD¥14,500200110-200509

main88712-52160iNCP21..RHD¥28,800200211-200509

DEALER OPTION

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-52100iNCP2#,NLP2#..RHD¥22,600200211-200509

main88706-52310iNCP2#..LHD¥23,400200211-200509

DEALER OPTION

main88716-52030iNCP2#..LHD¥9,400199908-200211

MAKER OPTION

main88716-52040iNCP2#,NLP2#..RHD¥12,000199908-200211

MAKER OPTION

main88716-52110iNCP2#,NLP2#..RHD¥8,000199908-200211

DEALER OPTION

main88716-52160iNCP2#..LHD¥9,300199908-200211

DEALER OPTION

main88716-52170iNLP2#..LHD¥11,500200110-200211

MAKER OPTION

main88716-52210iNLP2#..LHD¥5,500200110-200211

DEALER OPTION

main88716-52420iNLP2#..LHD¥6,100200211-200509

DEALER OPTION

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88706-52340iNLP2#..LHD¥21,400200211-200509

main88716-52120iNLP2#..RHD¥5,400199908-200509

main88716-52140iNCP2#..LHD¥4,090199908-200211

main88716-52200iNLP2#..LHD¥7,300200110-200211

main88716-52360iNCP2#..RHD¥5,800200211-200509

main88716-52380iNCP2#..LHD¥3,520200211-200509

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

8271133100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33100¥540

8856912190CLAMP (FOR COOLER RELAY)

main88569-12190

8868852030BRACKET, COOLER DIAPHRAGM

main88688-52030

8871852040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52040

8871852050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52050

8889952050COVER, EVAPORATOR

main88899-52050

8889952060COVER, EVAPORATOR

main88899-52060

9004119354

main90041-19354

9009120619

main90091-20619¥0

9009120630

main90091-20630

9011906173

main90119-06173¥80

91633B0620

main91633-B0620¥90

91633B0628

main91633-B0628¥80

9338115008

main93381-15008¥90

9338556020

main93385-56020

33 parts on this diagram · 9 diagrams in section
