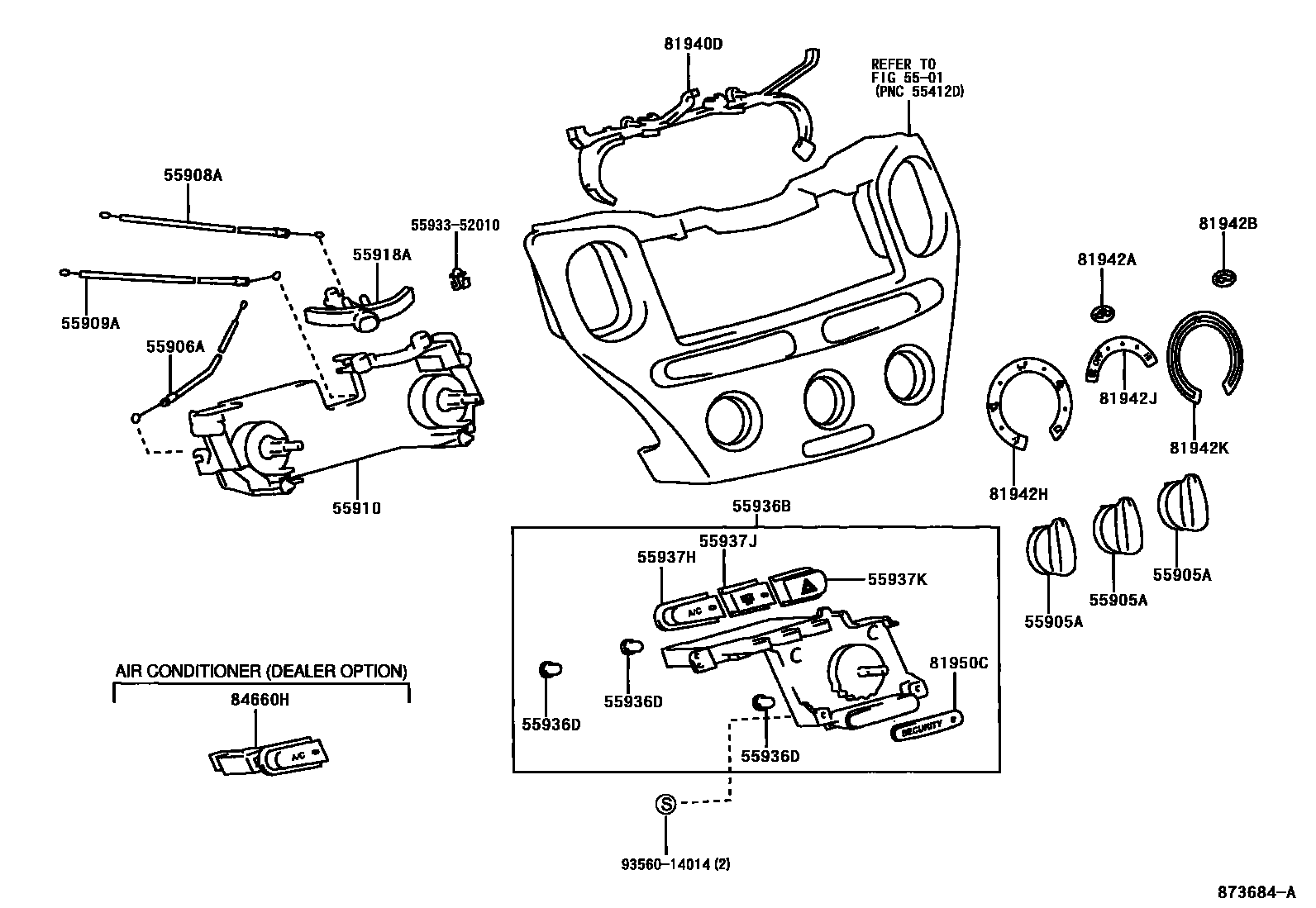

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55905AKNOB, HEATER CONTROL
W(AIR CONDITIONER)
BLACK
SILVER
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
W(HEATER)
W(AIR CONDITIONER)
55936BSWITCH, CENTER CLUSTER MODULE
W(AIR CONDITIONER & REAR WINDOW DEFOGGER)
W(REAR WINDOW DEFOGGER)
W(AIR CONDITIONER & ENGINE IMMOBILIZER & REAR WINDOW DEFOGGER)
W(ENGINE IMMOBILIZER SYSTEM & REAR WINDOW DEFOGGER)
W(AIR CONDITIONER)
55936DBLUB, CENTER CLUSTER MODULE SWITCH
14V 1.8W
55937HKNOB, CENTER CLUSTER MODULE, NO.5
W(AIR CONDITIONER)
81940DLENS ASSY, HEATER CONTROL
W/O(HEATER)
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
81942HSHEET, HEATER CONTROL NAME, NO.3
81942JSHEET, HEATER CONTROL NAME, NO.4
81942KSHEET, HEATER CONTROL NAME, NO.5
84660HSWITCH ASSY, COOLER CONTROL
5593352010GUIDE, LEVER, NO.2
main55933-52010
9356014014
main93560-14014
22 parts on this diagram · 7 diagrams in section
