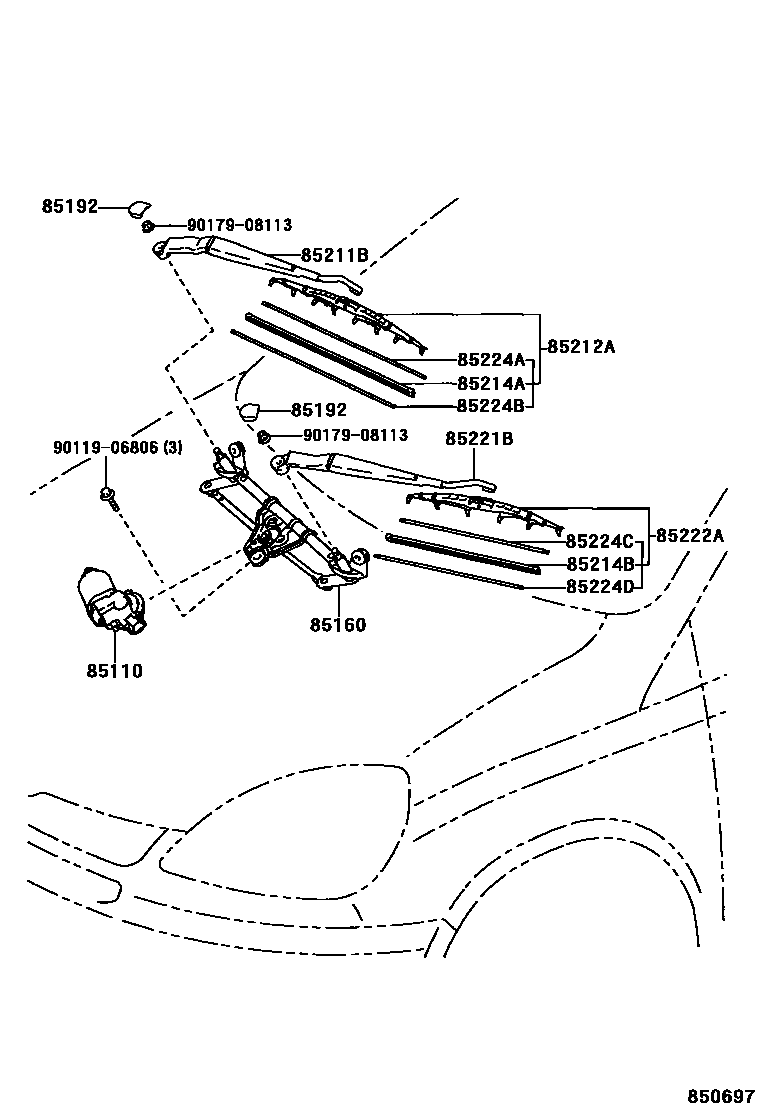

WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52080iNCP2#,NLP2#..RHD199908-200211

main85110-52090iNCP2#,NLP2#..LHD199908-200211

85160LINK ASSY, WINDSHIELD WIPER

main85150-52050iNCP2#,NLP2#..RHD200211-200509

main85150-52060iNCP2#,NLP2#..LHD200211-200509

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iNCP2#,NLP2#199908-200211

85211BARM, FRONT WIPER, RH

main85211-52070iNCP2#,NLP2#..RHD200211-200509

main85211-52080iNCP2#,NLP2#..LHD199908-200211

85212ABLADE, FR WIPER, RH

main85212-52050iNCP2#,NLP2#..RHD200312-200509

sub85212-46010

main85212-52070iNCP2#,NLP2#..RHD200211-200312

main85212-52080iNCP2#,NLP2#..LHD200211-200509

sub85212-52081

85214ARUBBER, WIPER, RH

main85214-33100iNCP2#,NLP2#..RHD199908-200211

main85214-44020iNCP2#,NLP2#..LHD199908-200211

main85214-48010iNCP2#,NLP2#..RHD200211-200509

main85214-50060iNCP2#,NLP2#..LHD200312-200509

sub85214-50061

main85214-50130iNCP2#,NLP2#..LHD200211-200312

85214BRUBBER, WIPER, LH

main85214-33100iNCP2#,NLP2#..LHD199908-200211

main85214-44020iNCP2#,NLP2#..RHD199908-200211

main85214-48010iNCP2#,NLP2#..LHD200211-200509

main85214-50060iNCP2#,NLP2#..RHD200312-200509

sub85214-50061

main85214-50130iNCP2#,NLP2#..RHD200211-200312

85221BARM, FRONT WIPER, LH

main85221-52070iNCP2#,NLP2#..RHD199908-200211

main85221-52080iNCP2#,NLP2#..LHD200211-200509

85222ABLADE, FR WIPER, LH

main85222-52040iNCP2#,NLP2#..RHD200211-200312

main85222-52050iNCP2#,NLP2#..LHD199908-200211

sub85222-48040

main85222-52150iNCP2#,NLP2#..RHD200312-200509

sub85222-52151

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33040iNCP2#,NLP2#..RHD199908-200211

main85224-44030iNCP2#,NLP2#..LHD199908-200211

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33040iNCP2#,NLP2#..RHD199908-200211

main85224-44030iNCP2#,NLP2#..LHD199908-200211

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-33040iNCP2#,NLP2#..LHD199908-200211

main85224-44020iNCP2#,NLP2#..RHD199908-200211

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-33040iNCP2#,NLP2#..LHD199908-200211

main85224-44020iNCP2#,NLP2#..RHD199908-200211

9011906806

main90119-06806

9017908113

main90179-08113

15 parts on this diagram · 4 diagrams in section
