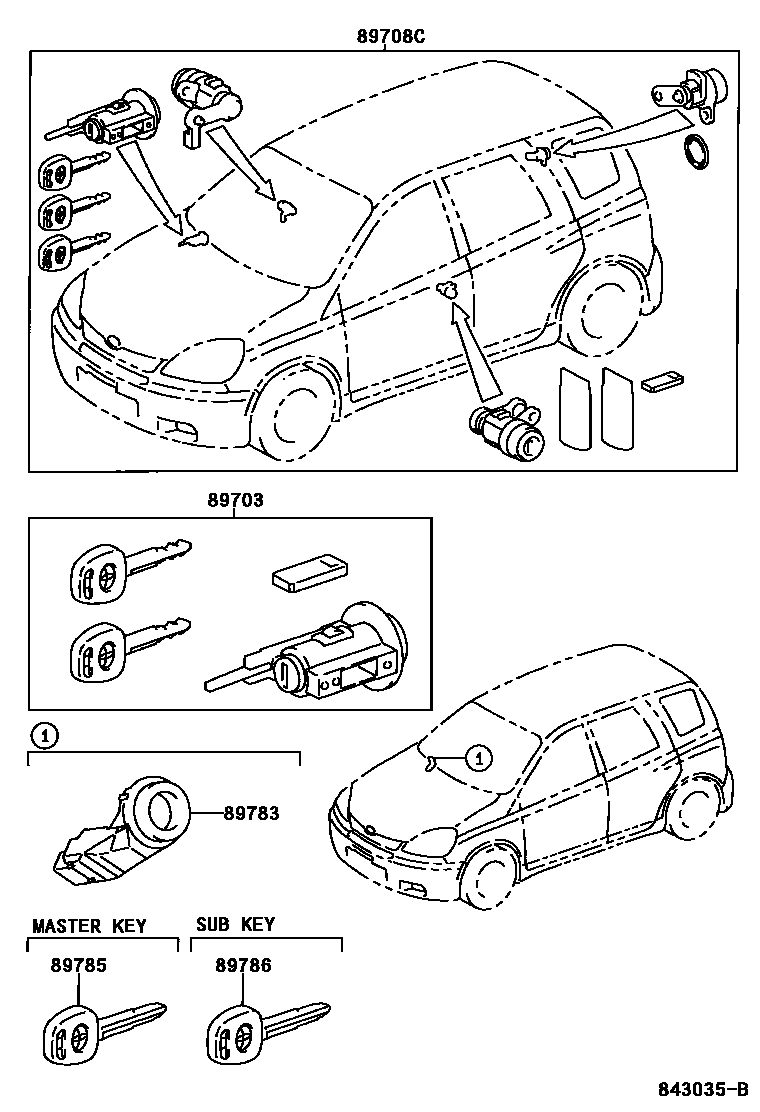

ANTI-THEFT DEVICE

0001 1W/O(KEY LESS ENTRY) 0002 1W(KEY LESS ENTRY) 0003 1W(KEY LESS ENTRY)

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main69057-52190iNCP2#,NLP2#200211-200509

main69057-52201iNCP2#,NLP2#200211-200509

W(KEY LESS ENTRY)

main89073-52010iNCP2#..RHD199908-200012

W(KEY LESS ENTRY)

sub89073-52011

main89073-52011iNCP2#,NLP2#200012-200211

W(KEY LESS ENTRY)

main89073-52020iNCP2#..LHD199908-200012

W(KEY LESS ENTRY)

sub89073-52011

main89073-52030iNCP2#..LHD199908-200012

FRANCE SPEC;W(KEY LESS ENTRY)

sub89073-52011

main89073-52040iNCP2#..RHD199908-200211

HONG KONG SPEC;W(KEY LESS ENTRY)

main89073-52110iNCP2#..LHD199908-200012

ITALY,FINLAND OR POLAND SPEC;W(KEY LESS ENTRY)

sub89073-52011

main89073-52120iNCP2#..LHD199908-200012

DENMARK SPEC OR SWITZERLAND SPEC;W(KEY LESS ENTRY)

sub89073-52011

main89703-52010iNCP2#,NLP2#199908-200211

sub69057-17170

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main69005-52650iNCP2#,NLP2#200211-200509

main89708-52020iNCP2#,NLP2#199908-200211

89783AMPLIFIER, TRANSPONDER KEY

main89783-52020iNCP2#,NLP2#199908-200509

sub89783-12081

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-17020iNCP2#,NLP2#199908-200211

sub89785-35020

main89785-26020iNCP2#,NLP2#200211-200509

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-17020iNCP2#,NLP2#199908-200211

sub89786-35040

main89786-60050iNCP2#,NLP2#200211-200509

5 parts on this diagram · 3 diagrams in section
